Hummer
>>
2008
>>
H3 V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Trailer Connector

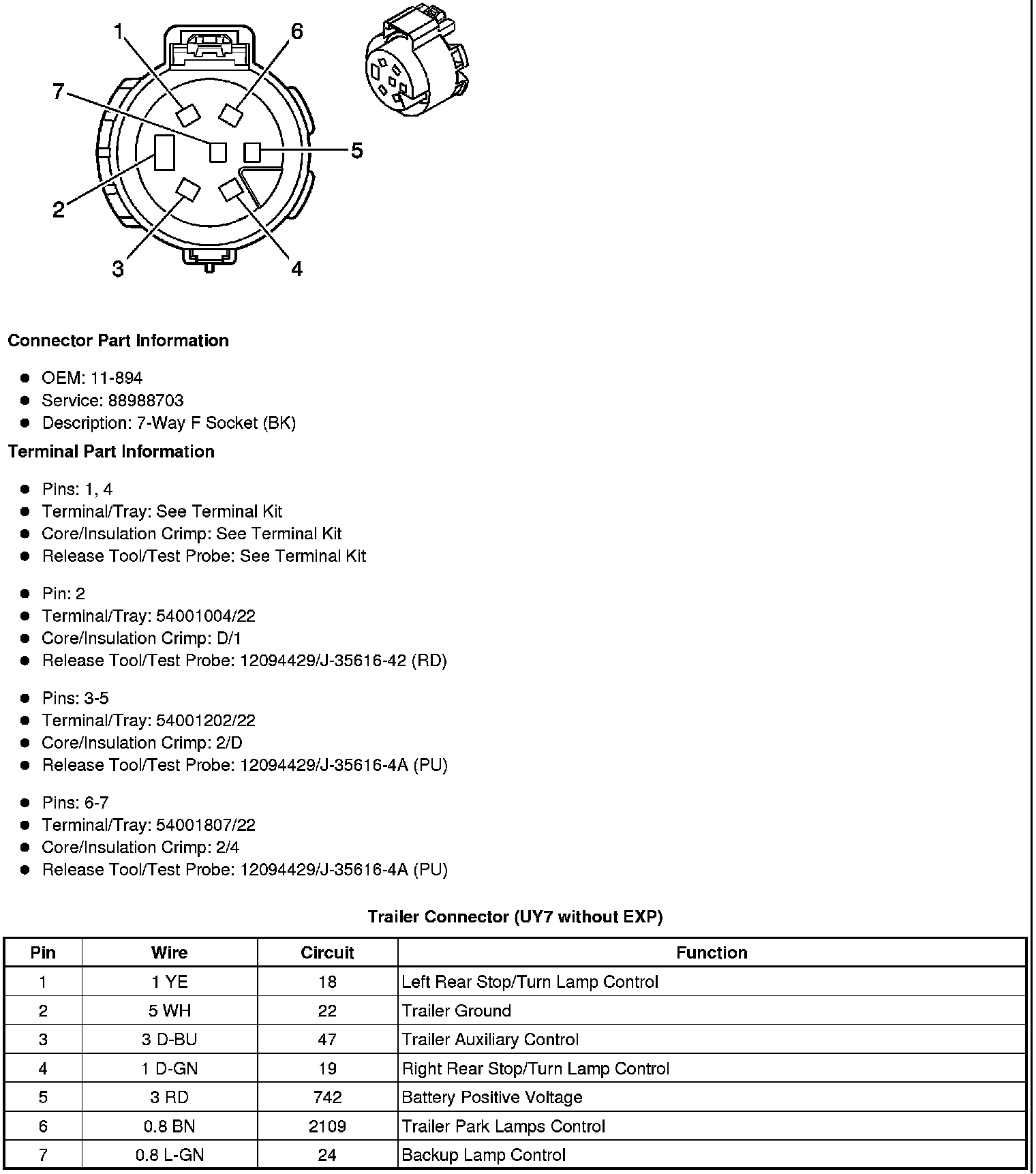

Trailer Connector
(UY7 without EXP)

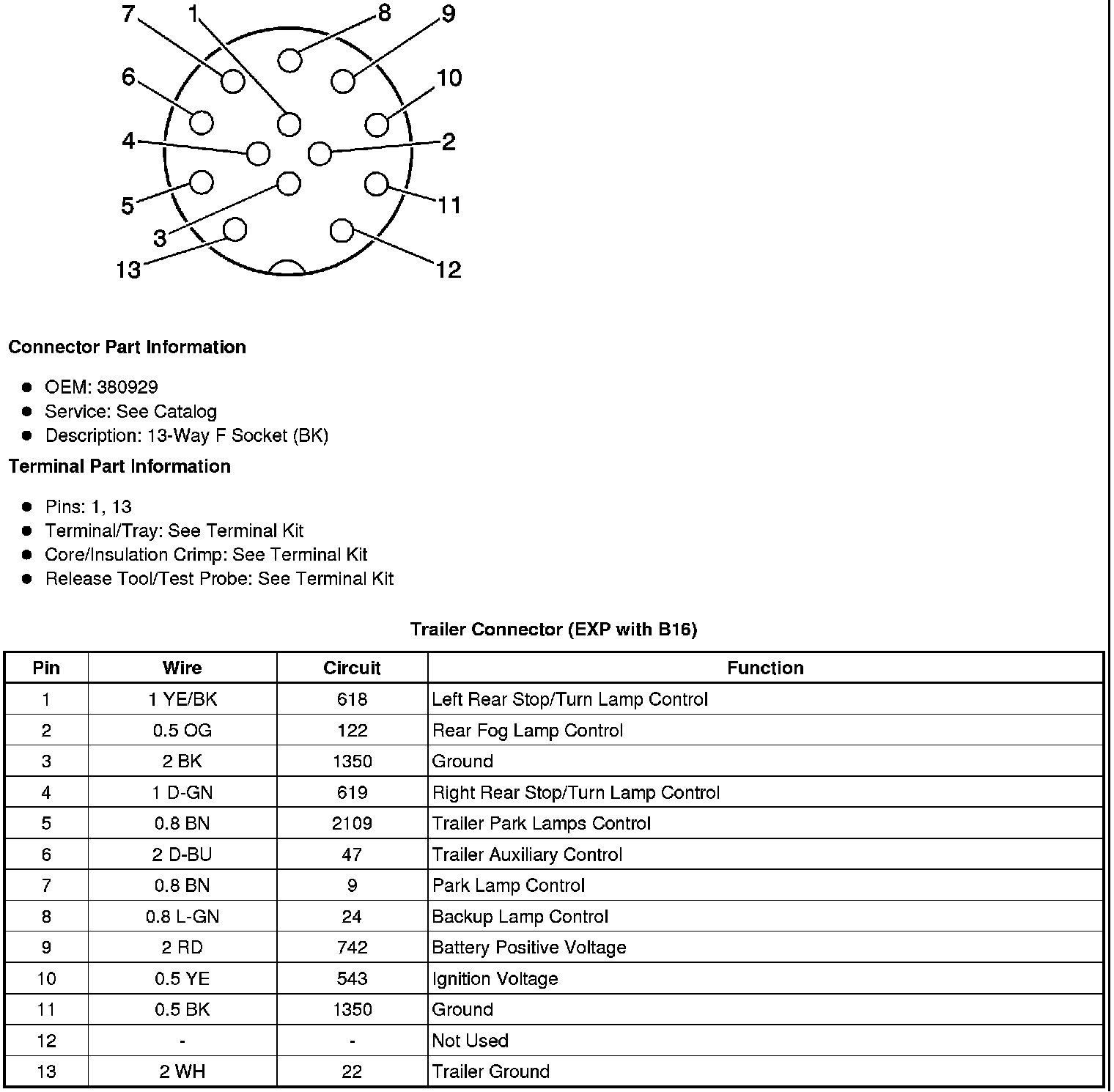

Trailer Connector
(EXP with B16)
