Windows



Moveable Window Schematics

Driver Door - LHD





Driver Door - RHD





Passenger Door - LHD





Passenger Door - RHD

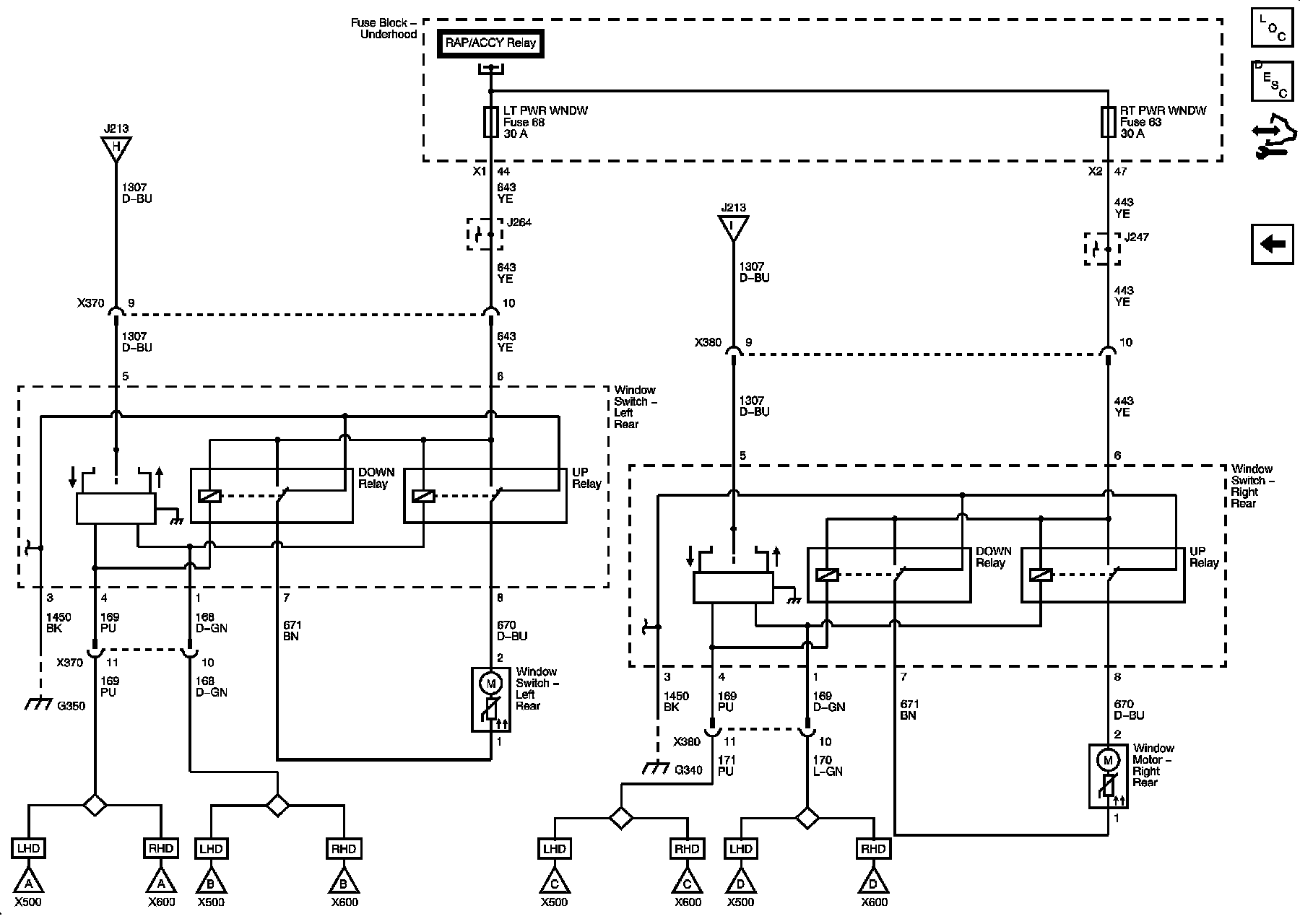

Rear Doors
