Object Detection Schematics

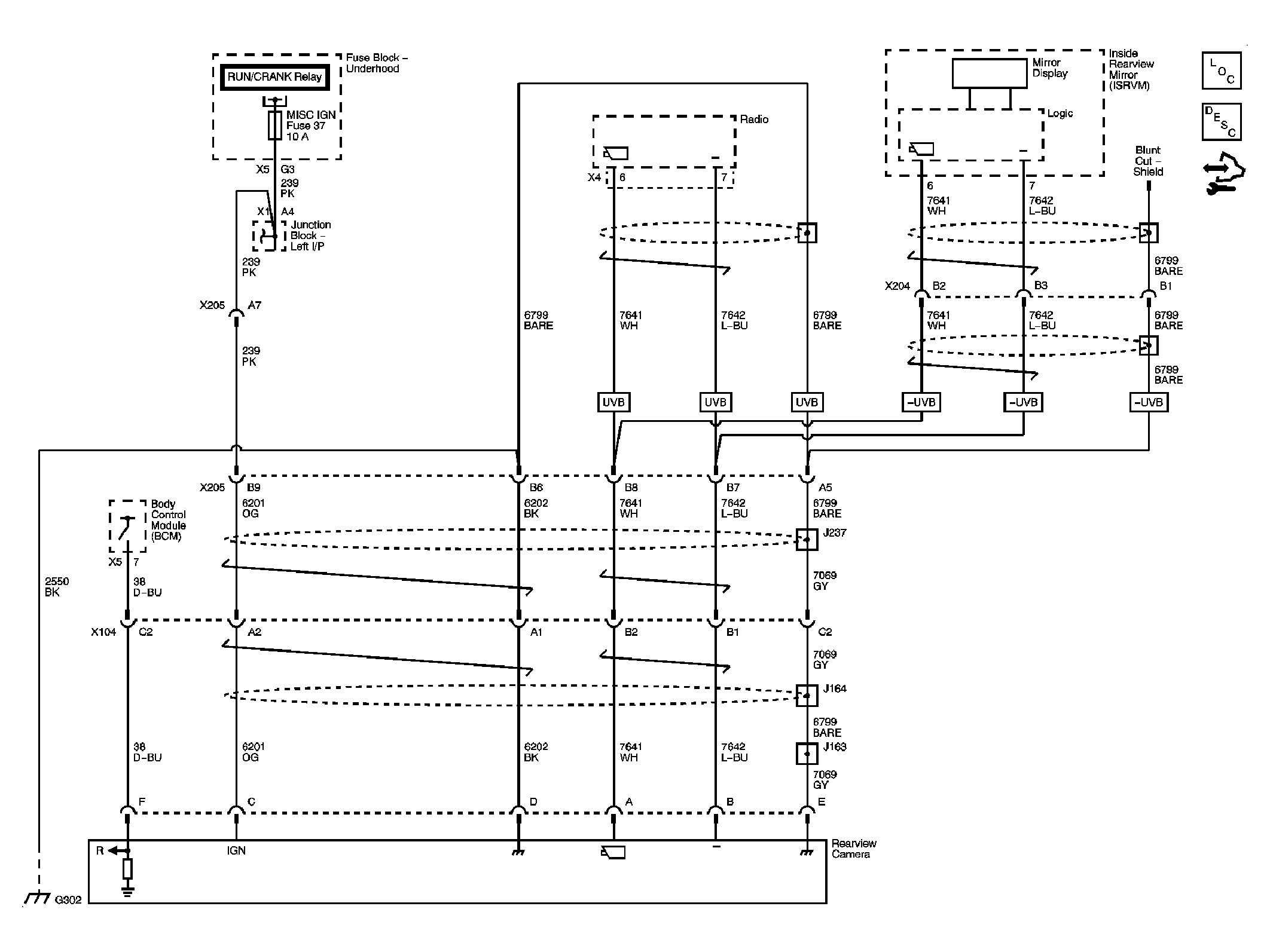

Fig 1: Rear Vision Camera (UVC)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
