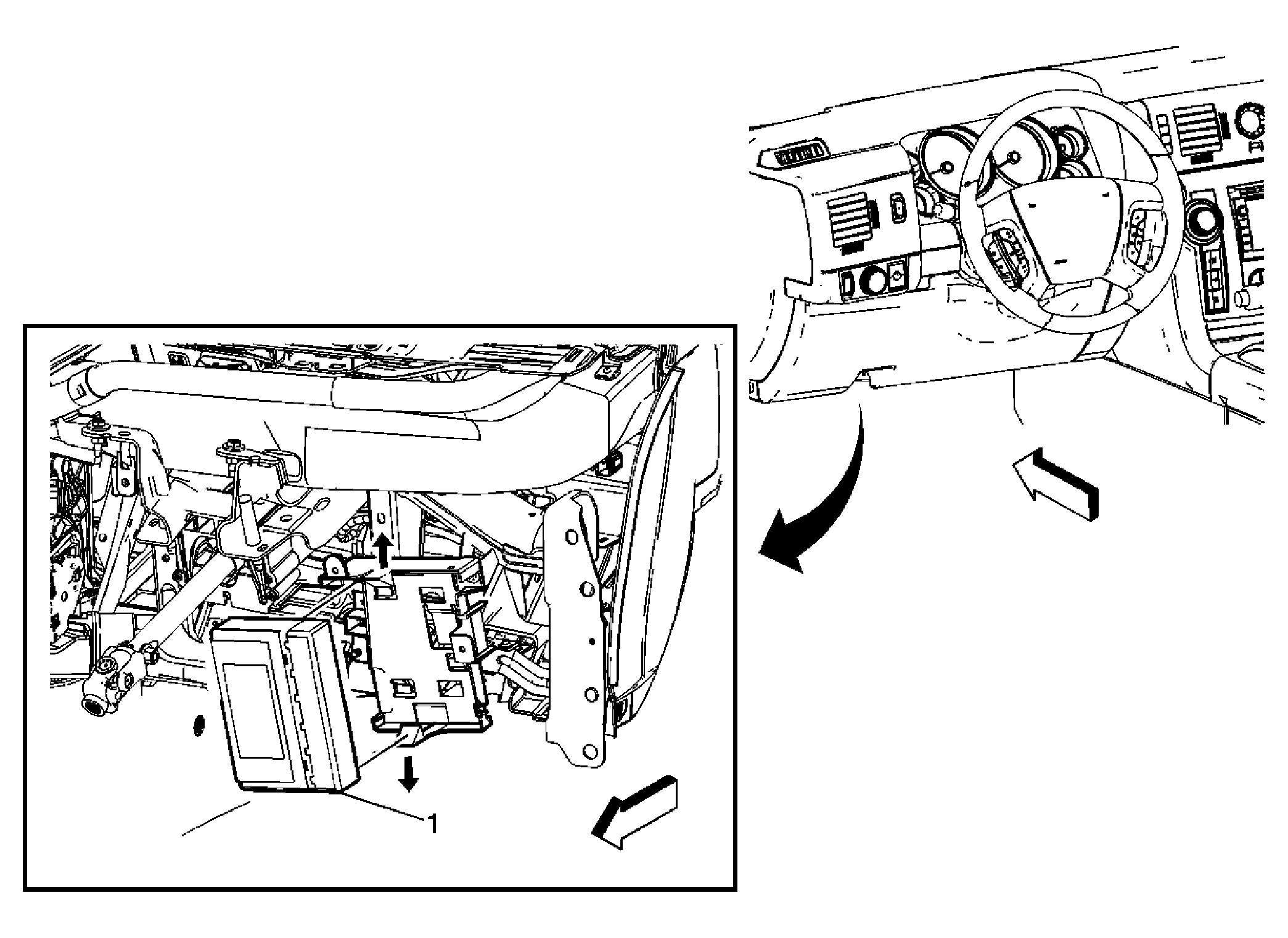

Body Control Module Procedure
- Remove the tape securing the BCM wiring harness prior to removing connectors.
- Disconnect the electrical connectors.
- Press on the tabs to release the body control module.
- After servicing BCM use a tie strap to secure the wiring harness where the tape was removed.
- If a replacement module is installed, program the module. Refer to Control Module References
|
