Remote Function Schematics

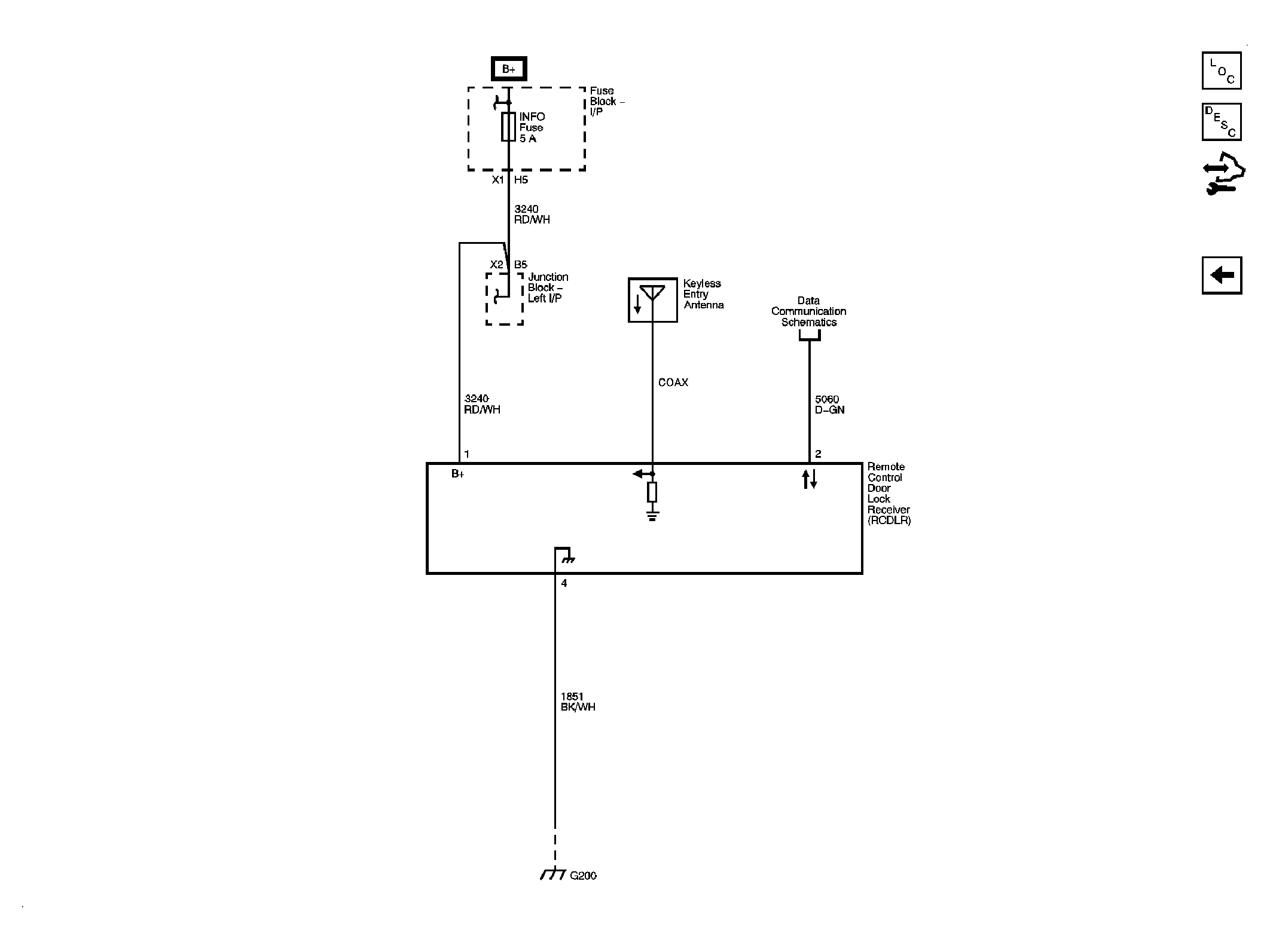

Fig 1: Power, Ground & Remote Control Door Lock Receiver
GM2097252Courtesy of GENERAL MOTORS CORP.

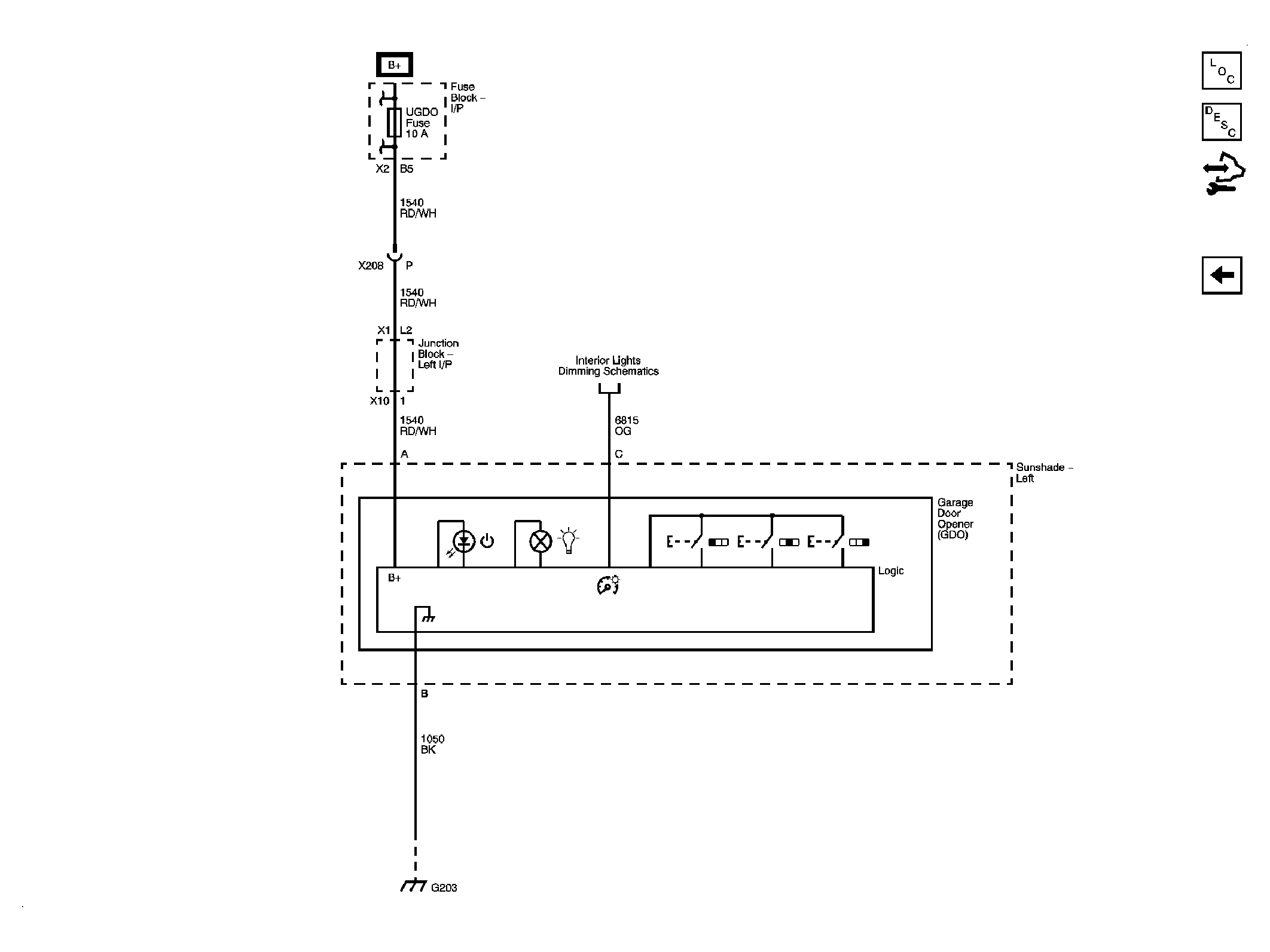

Fig 2: Garage Door Opener
GM2097253Courtesy of GENERAL MOTORS CORP.
