Theft Deterrent Module Replacement

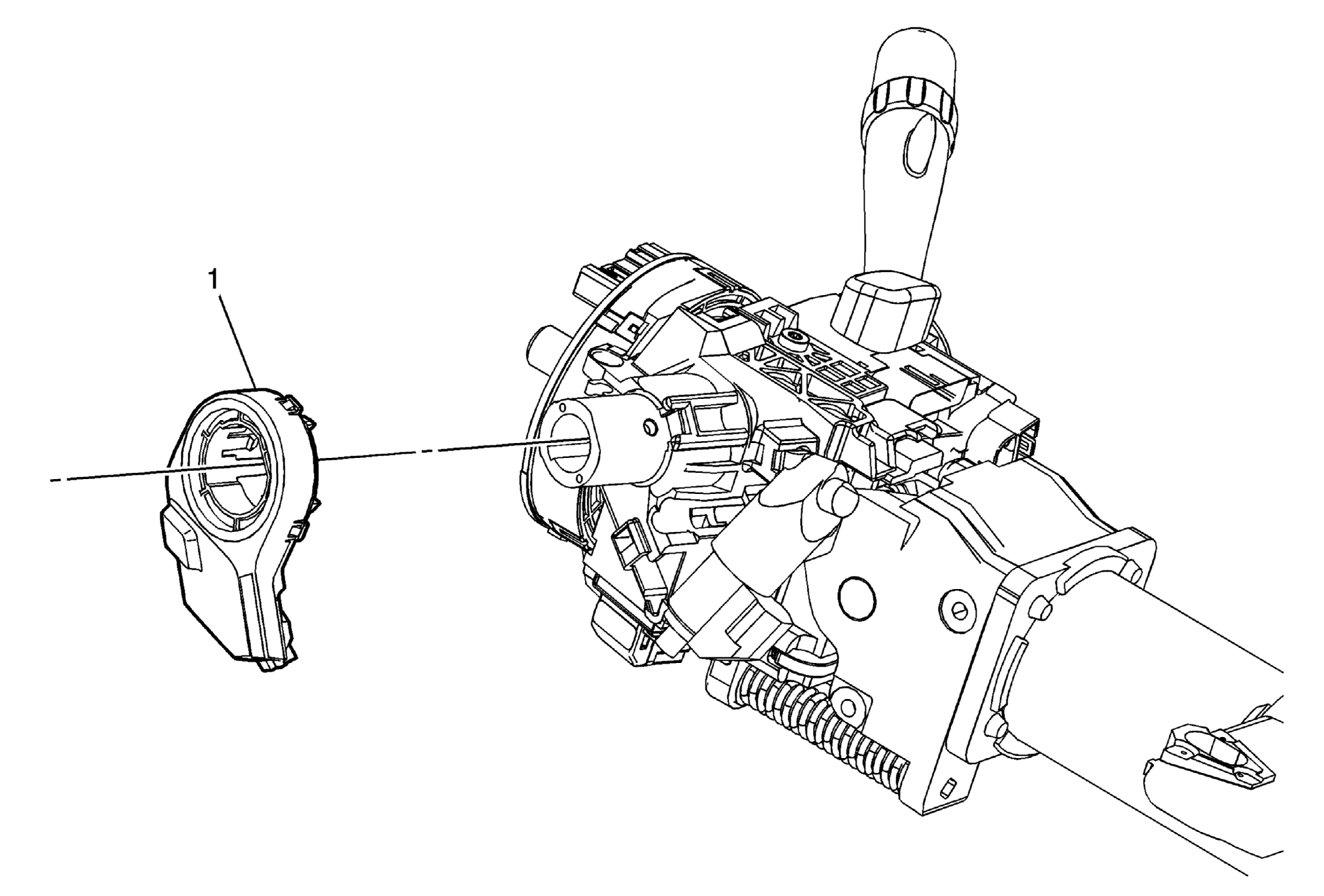

Fig 1: Identifying Theft Deterrent Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Remove the ignition cylinder. Refer to Ignition Lock Cylinder Replacement . Program the theft deterrent control module after replacement. Refer to Control Module References .
1	Theft Deterrent Module Assembly Procedure: Pull out away from lock cylinder case and disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Disable the SIR. Refer to SIR Disabling and Enabling .
Remove the ignition cylinder. Refer to Ignition Lock Cylinder Replacement .
Program the theft deterrent control module after replacement. Refer to Control Module References .

Theft Deterrent Module Assembly
Procedure:
Pull out away from lock cylinder case and disconnect the electrical connector.
