Memory Seat Control Module Replacement

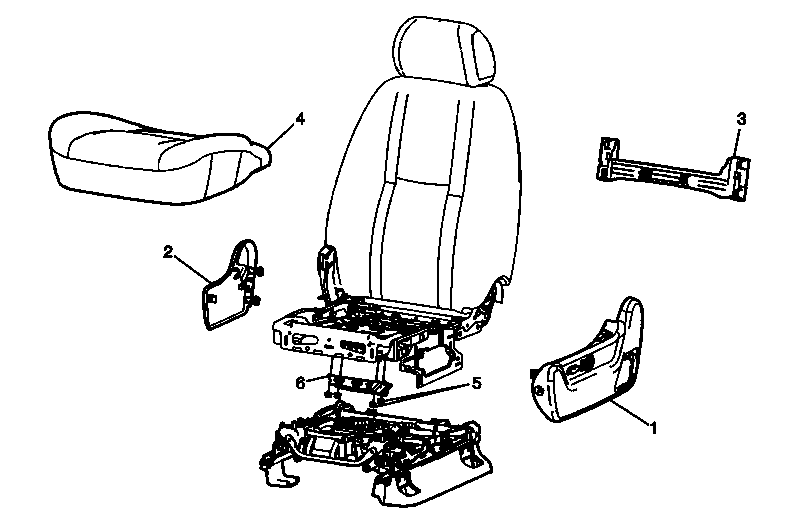

Fig 1: Identifying Memory Seat Control Module & Components
GM1678396Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front driver seat. Refer to Front Seat Replacement - Bucket .
1 Driver Seat Adjuster Outer Finish Cover
Refer to Front Seat Cushion Outer Trim Panel Replacement .
2 Driver Seat Adjuster Inner Finish Cover
Refer to Front Seat Cushion Inner Trim Panel Replacement .
3 Driver Seat Riser Finish Cover
Procedure:
Pull rearward to disengage the cover from the seat riser.
4 Driver Seat Cushion Cover and Pad
Refer to Seat Cushion Trim Cover and Pad Replacement .
5 Memory Seat Module Nut (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)

6 Memory Seat Module

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and set-up information.
