Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Body Relay Block | Parking brake assembly. See Figure. |

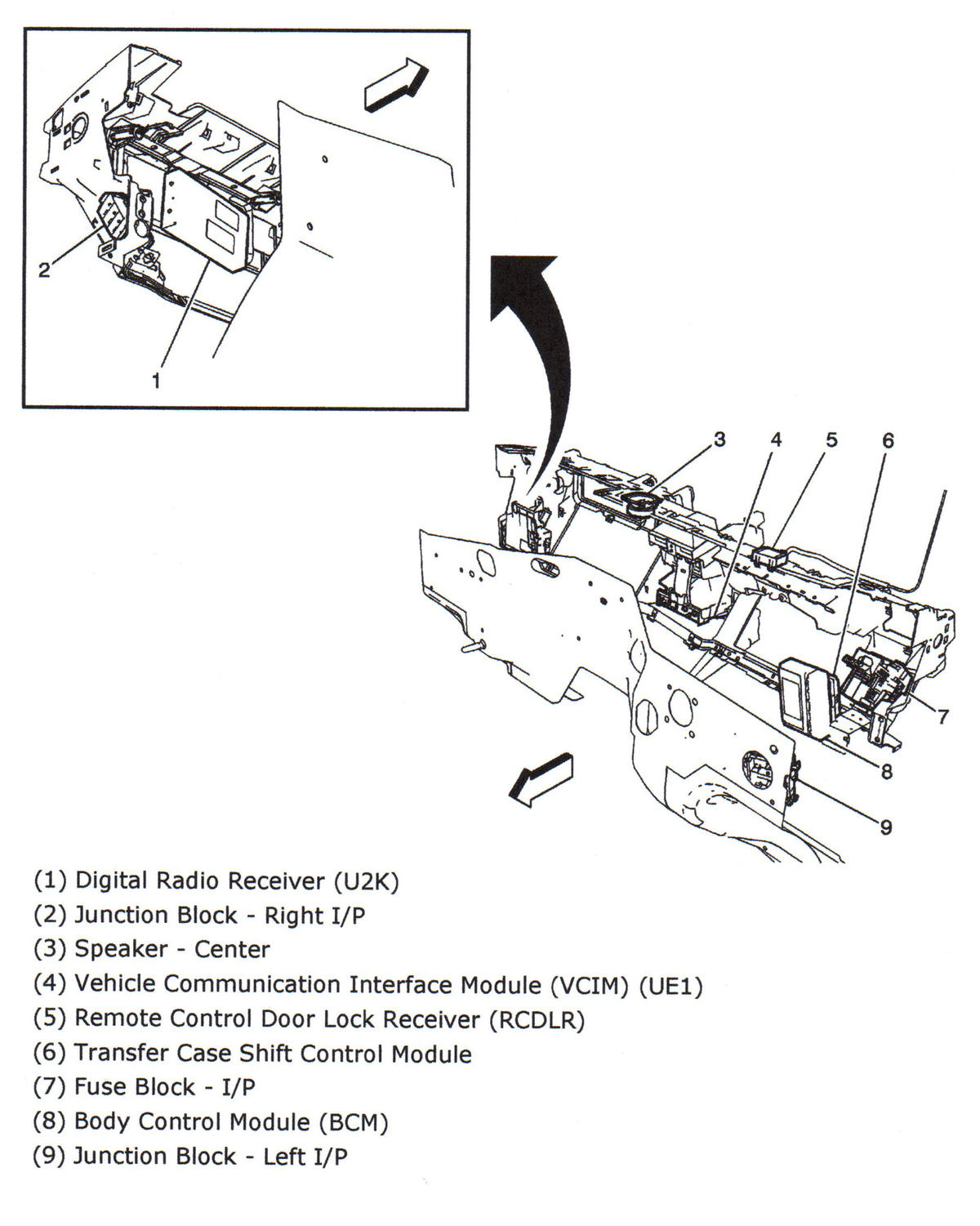

| Fuse Block-Instrument Panel (7) | Lower left of I/P. See Figure. |

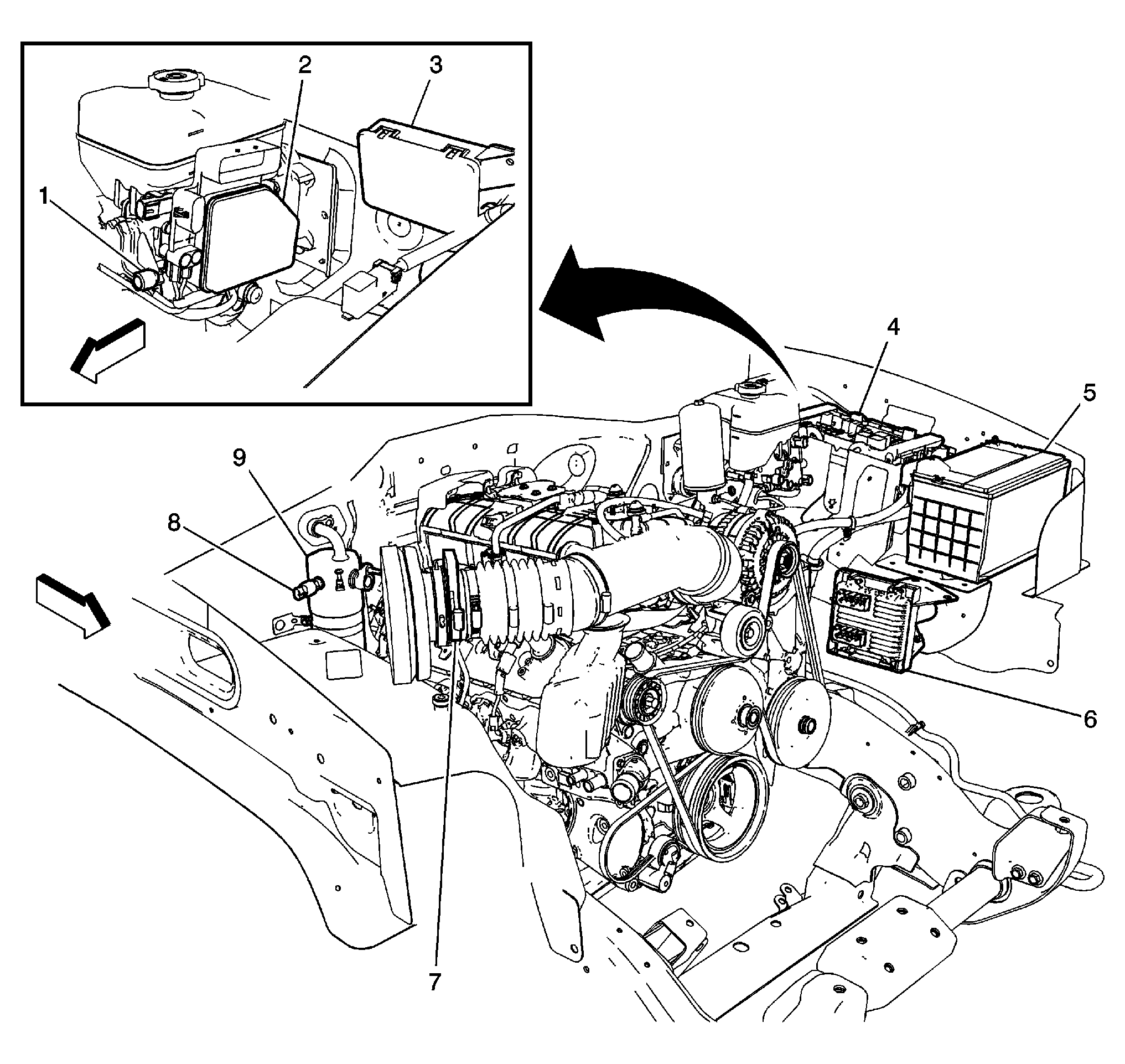

| Fuse Block-Underhood (3) | Left of engine compartment. See Figure. |

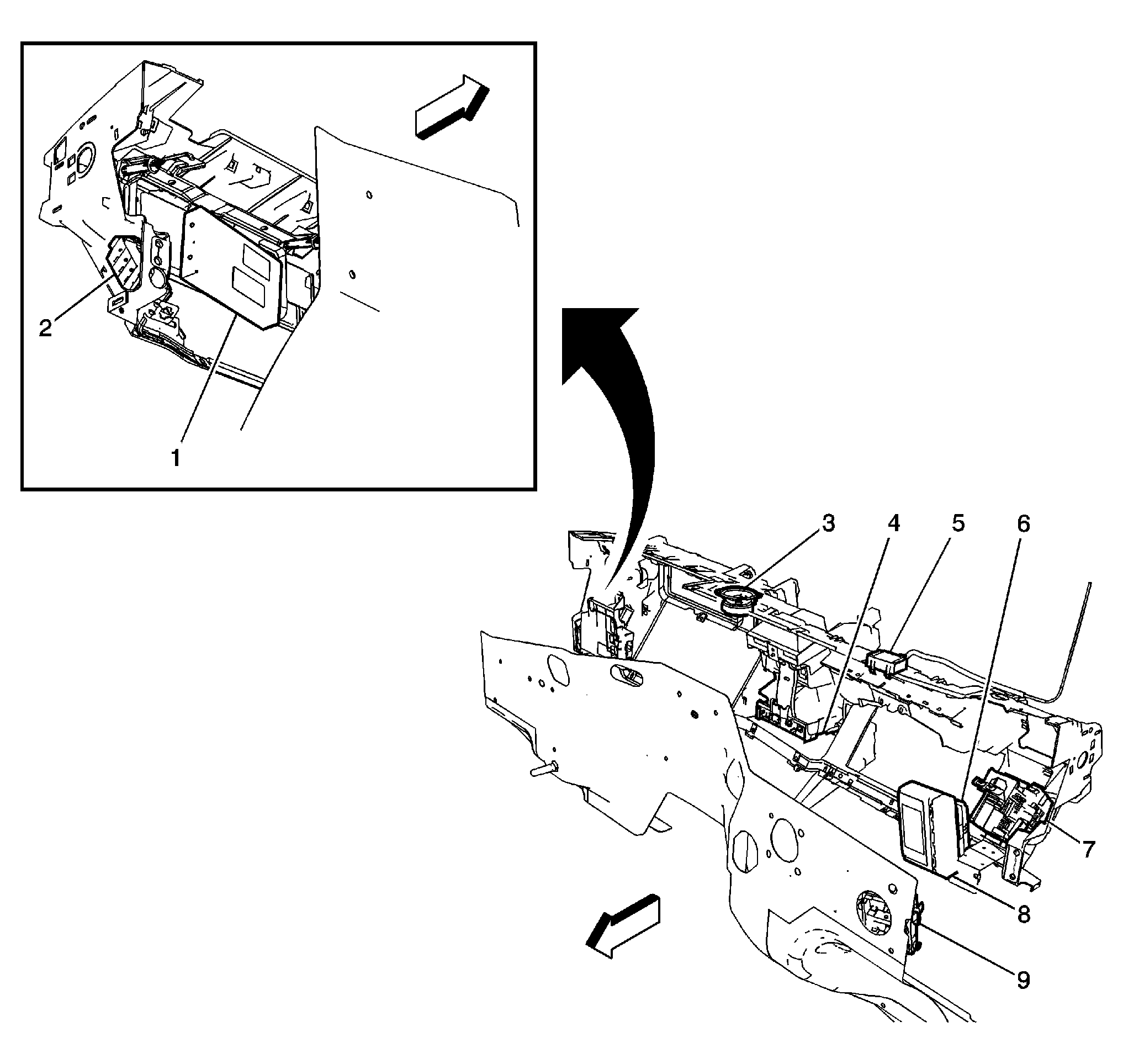

| Junction Block-Left I/P (9) | Lower left of dash. See Figure. |
| Junction Block-Right I/P (2) | Right of dash. See Figure. |
