Installation Procedure

    Fig 1: Removing/Installing Shift Lock Actuator
    GM1199544Courtesy of GENERAL MOTORS CORP.
  1. In the DRIVE position, depress the shift lock actuator button and realign into the shifter lever.
  2. Push lever to NEUTRAL.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the top screw through the lever slot.

    Tighten:  Tighten the actuator screw to 1.65 N.m (15 lb in).

  4. Shift lever to LOW.
  5. Install the screw at the rear of the shifter assembly.

    Tighten:  Tighten the actuator screw to 1.65 N.m (15 lb in).

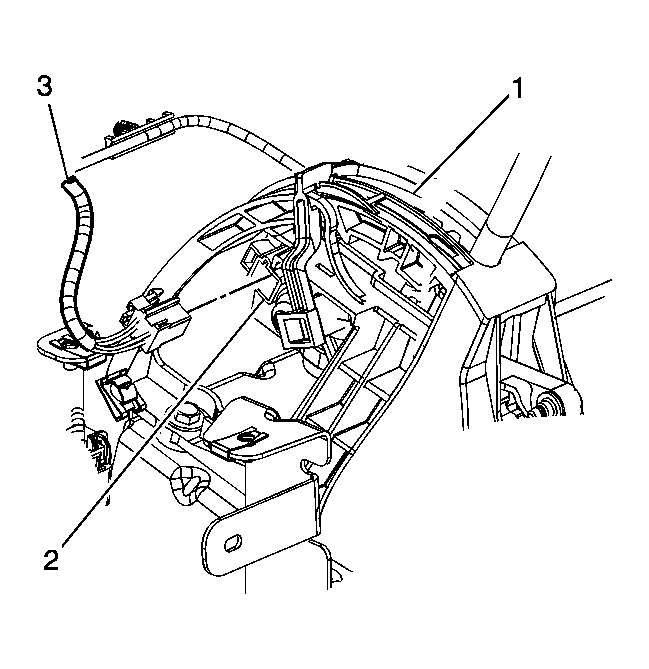

    6. Fig 2: Identifying Shift Lock Actuator & Electrical Connector
    GM896664Courtesy of GENERAL MOTORS CORP.
  6. Connect the electrical connector (3).
  7. Install the console. Refer to Front Floor Console Replacement .
