Keyless Entry Receiver: Diagrams




Component Connector End Views

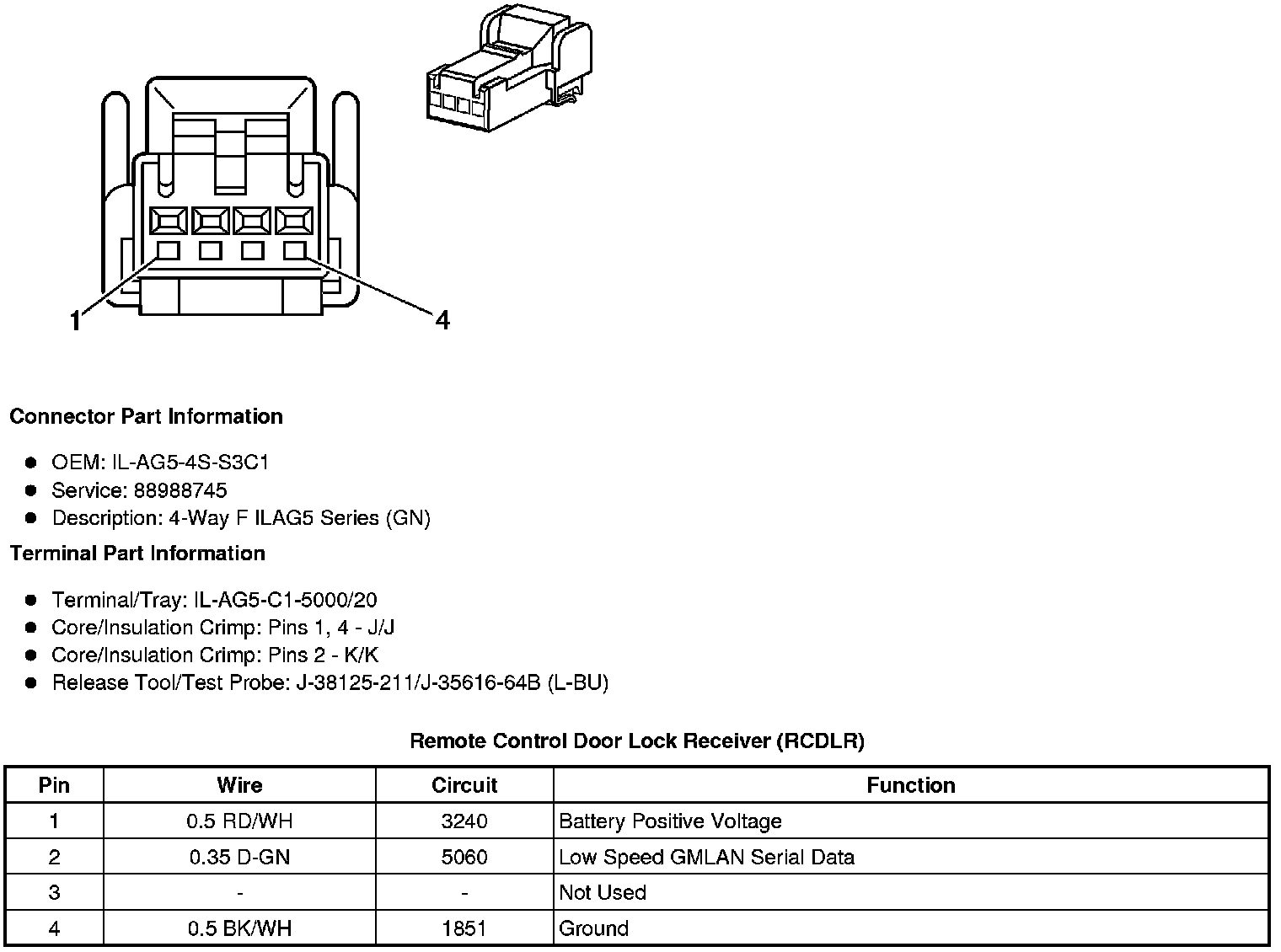

Remote Control Door Lock Receiver (RCDLR)
