Ambient Temperature Sensor / Switch HVAC
Component Connector End Views

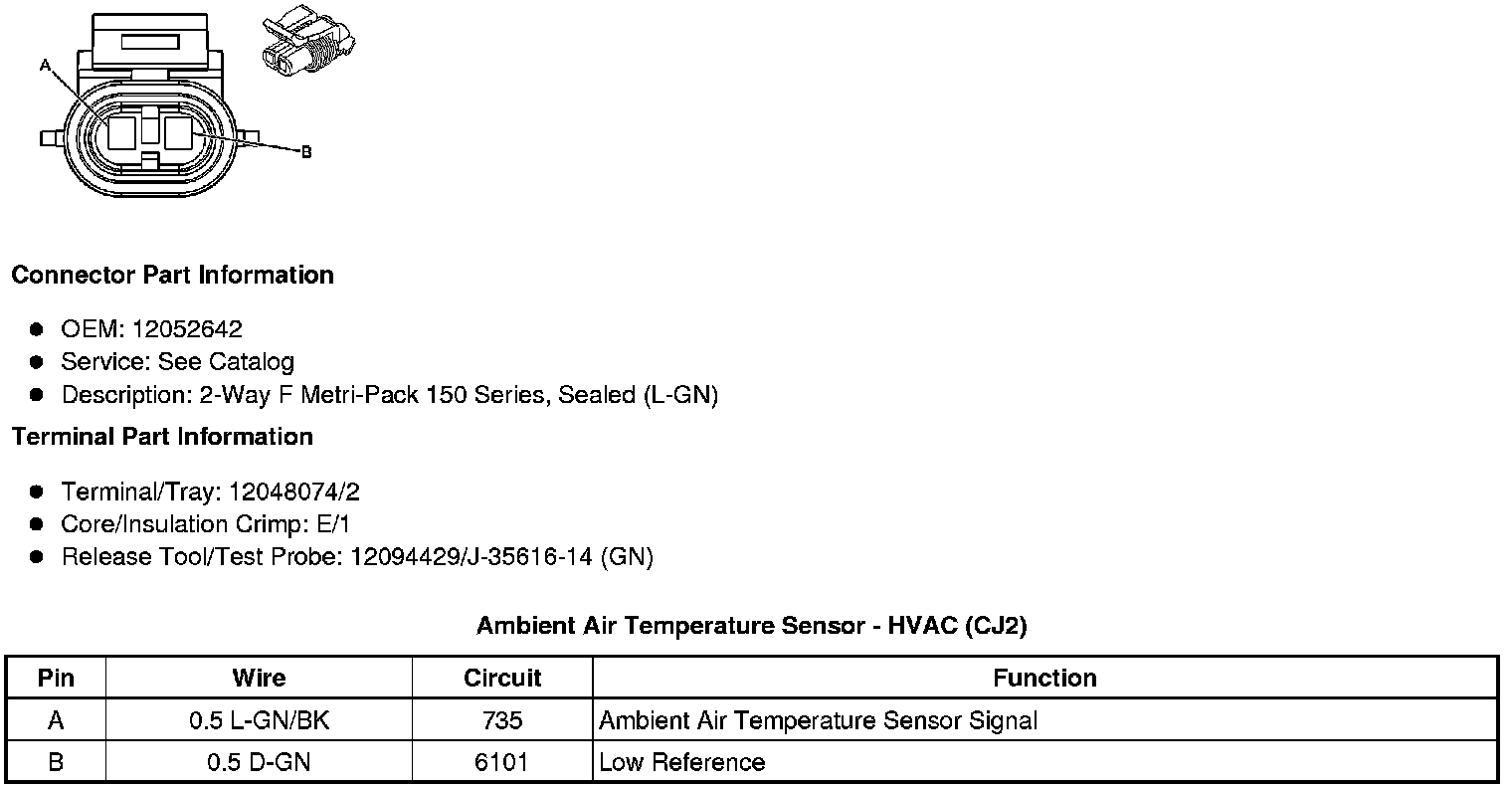

Ambient Air Temperature Sensor - HVAC (CJ2)
