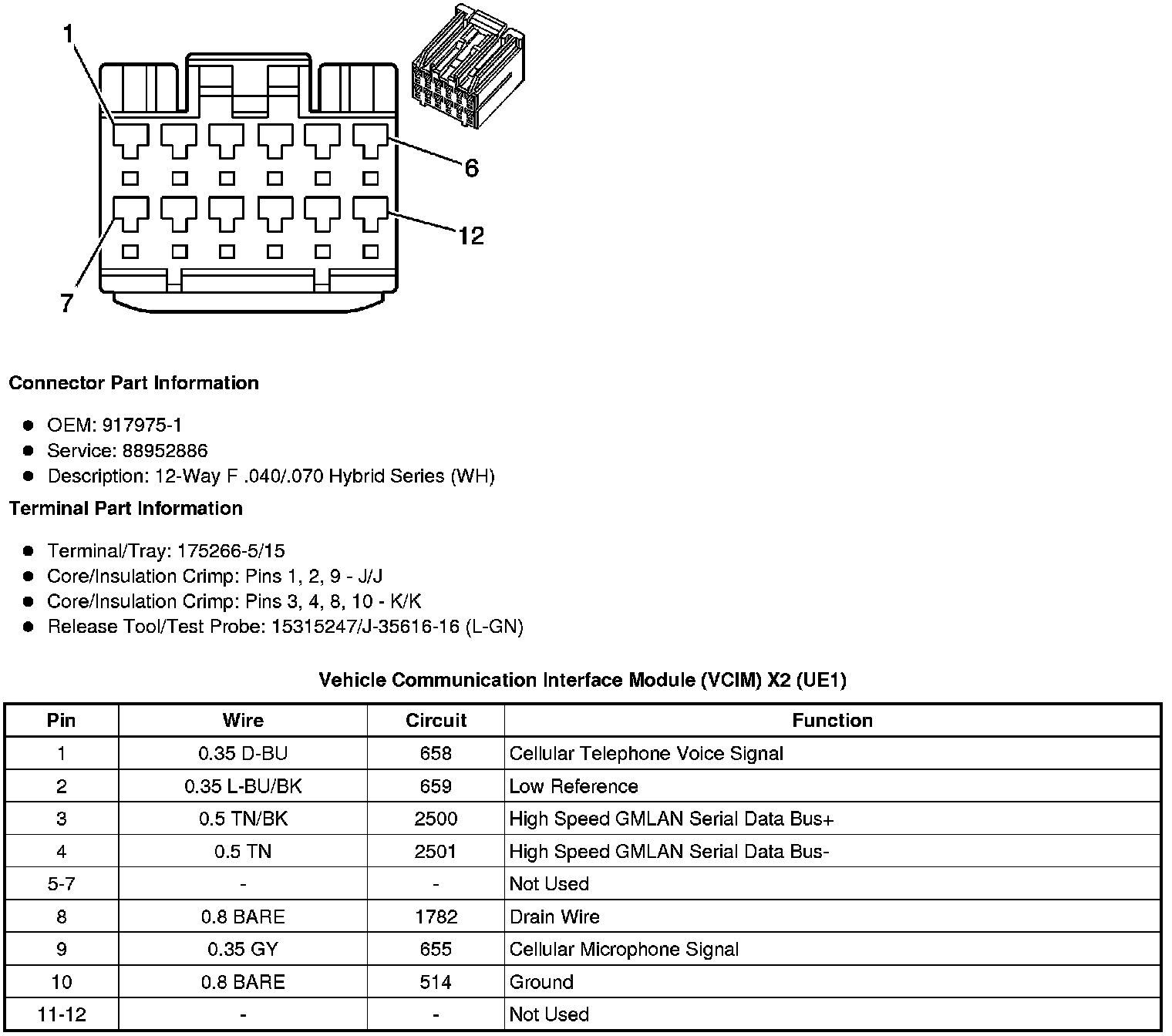

Vehicle Communication Interface Module (VCIM) X2 (UE1)
Component Connector End Views
Vehicle Communication Interface Module (VCIM) X2 (UE1)
