Hummer
>>
2009
>>
H2 V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compass
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Compass

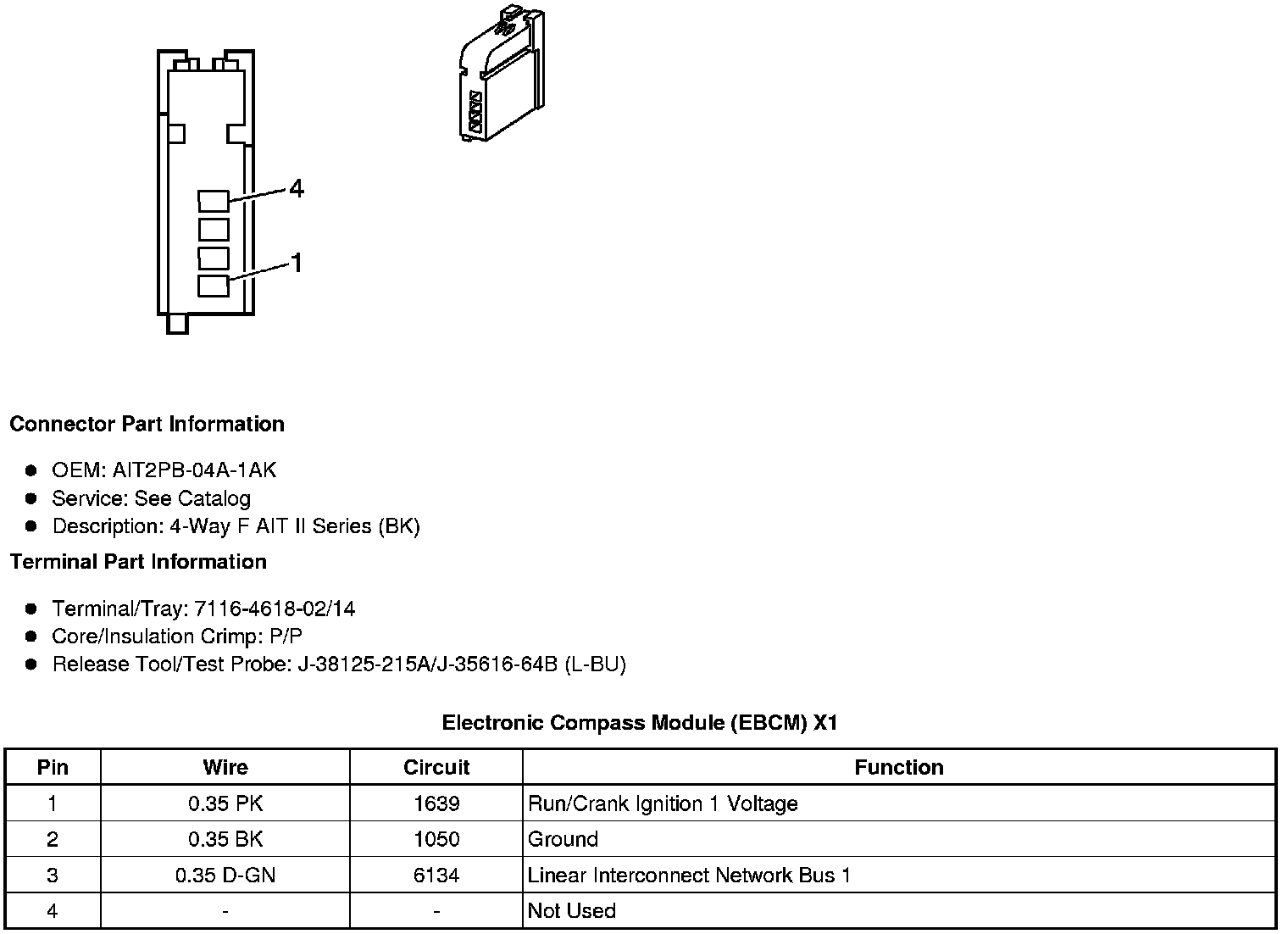

Component Connector End Views
Electronic Compass Module
