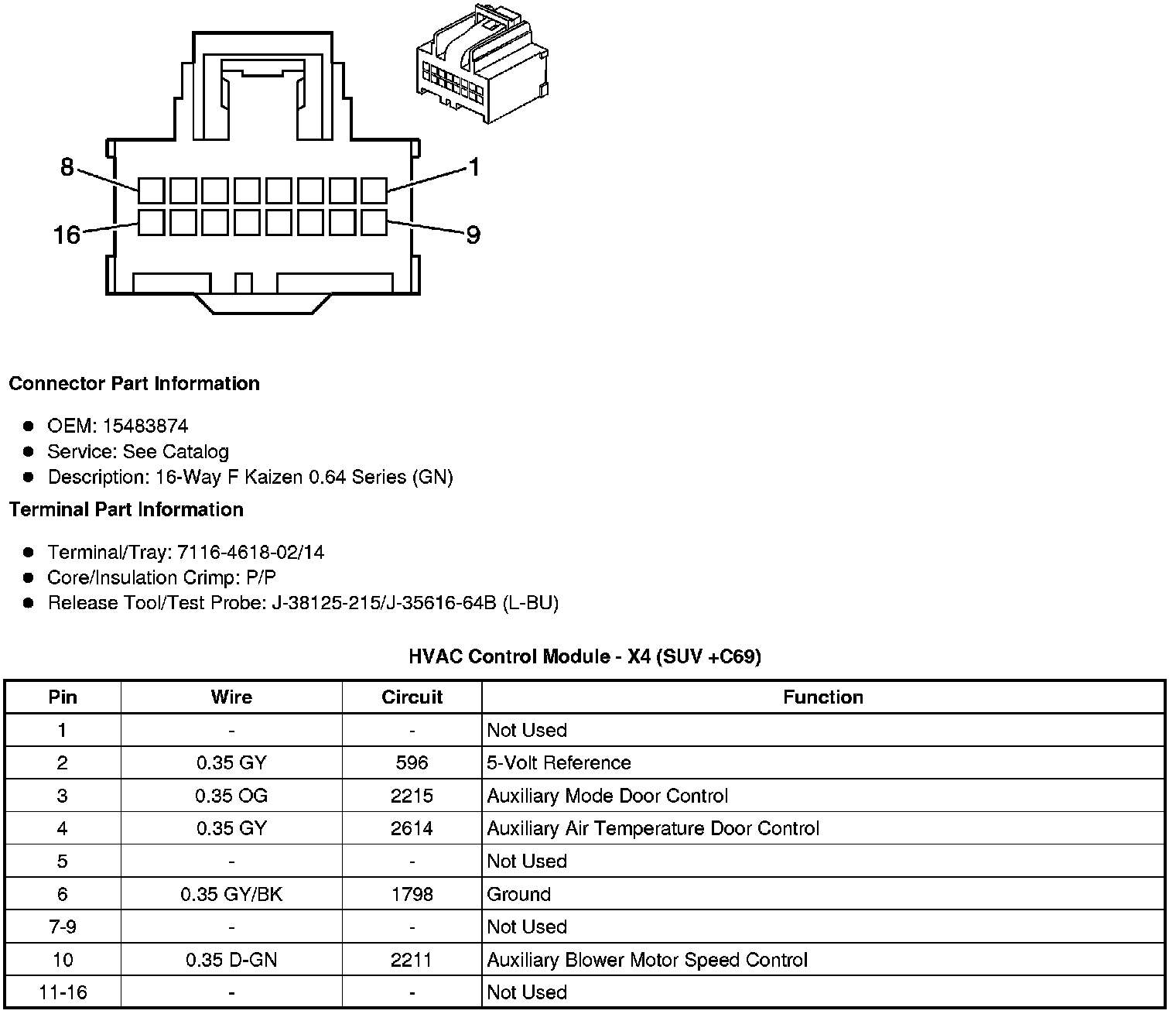

HVAC Control Module - X4 (SUV +C69)
Component Connector End Views
HVAC Control Module - X4 (SUV +C69)
