Fuse Block
Electrical Center Identification Views

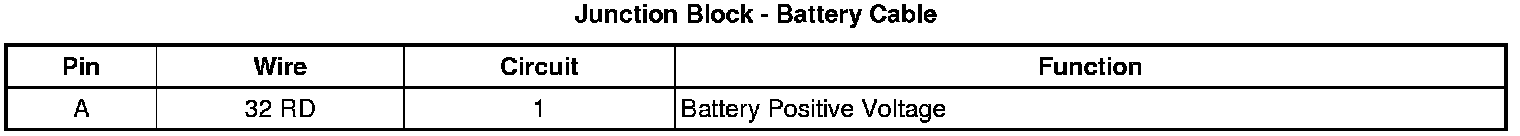

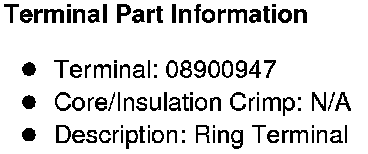

Junction Block - Battery Cable
Junction Block - Left I/P, Label

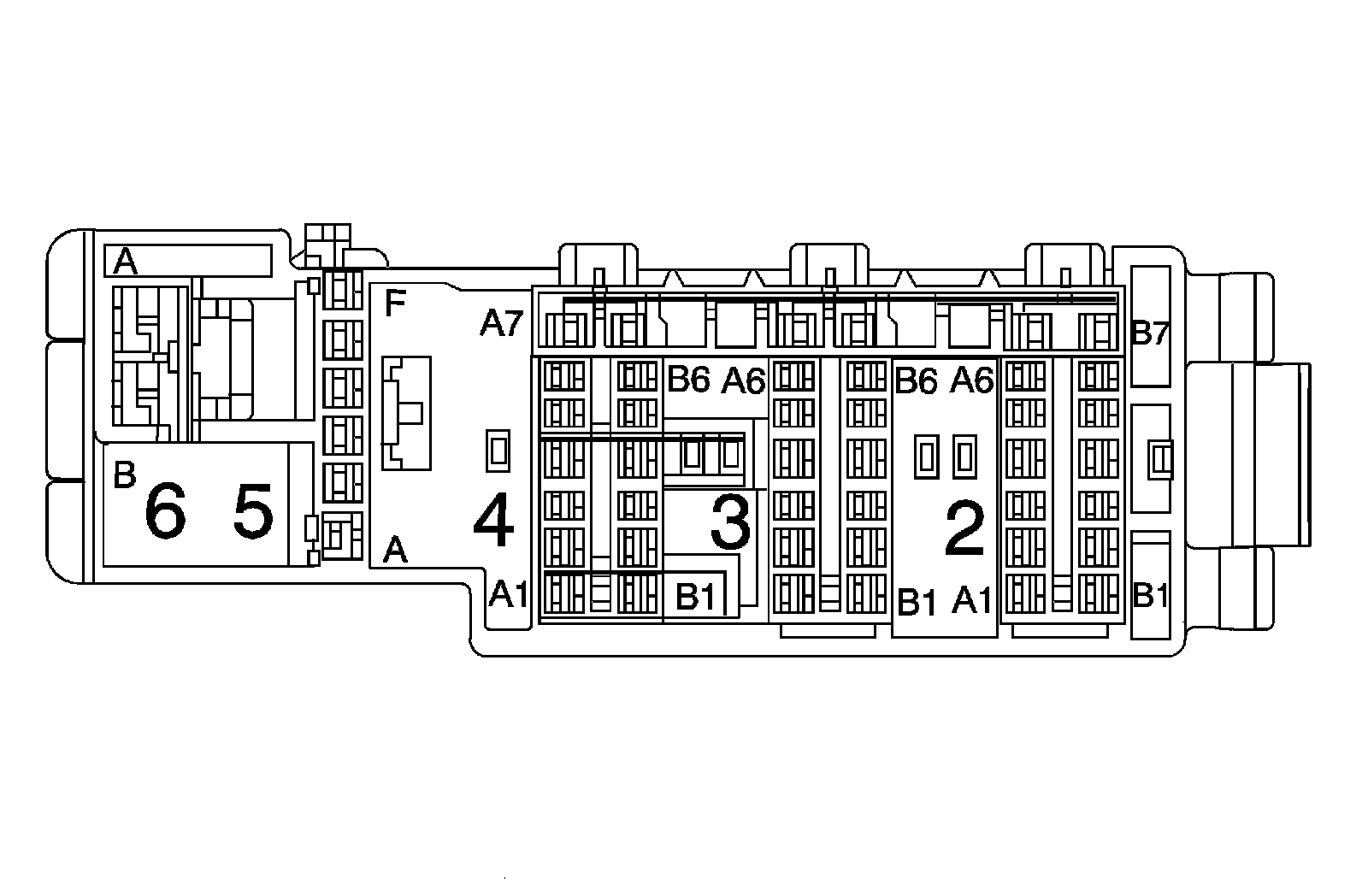

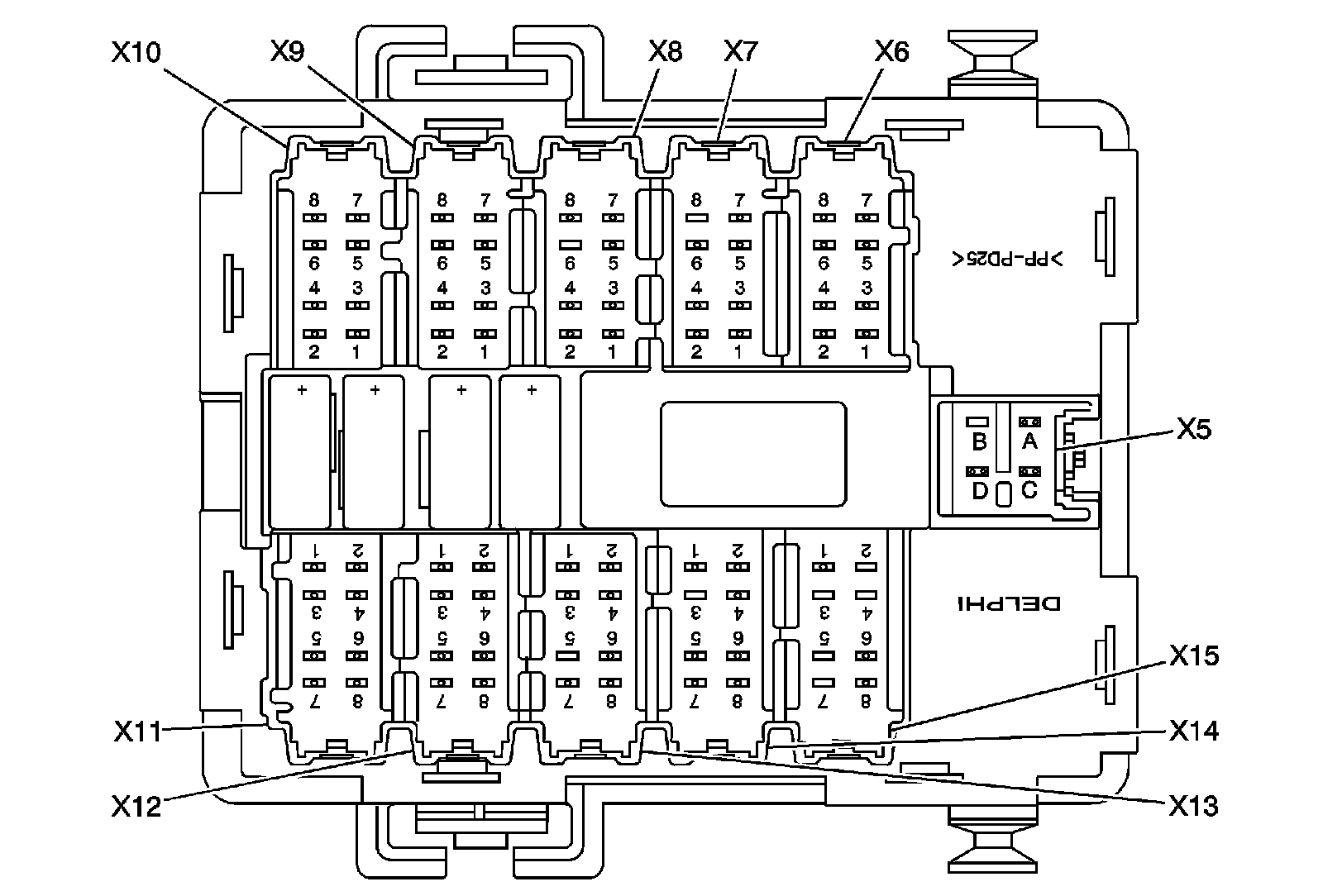

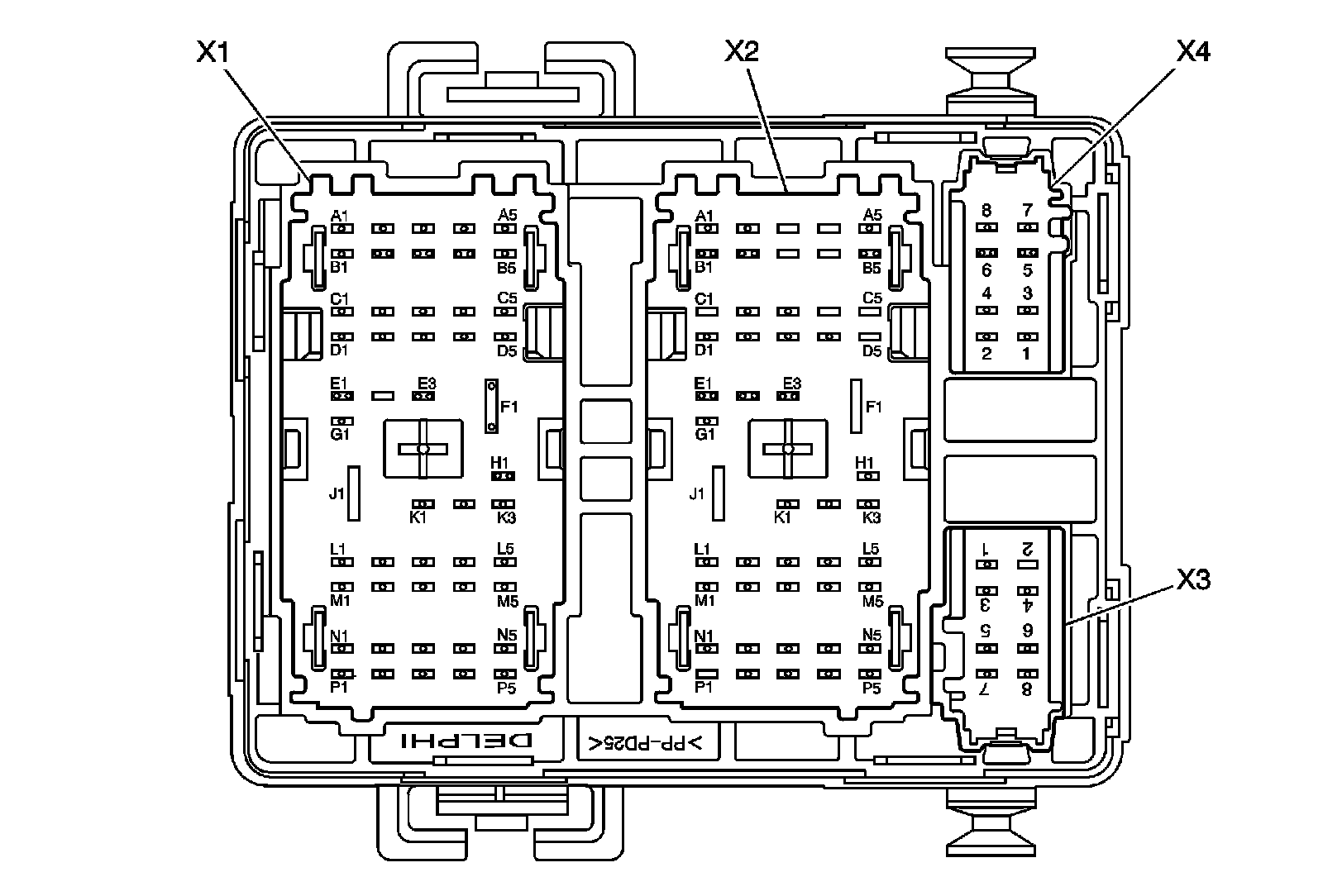

Junction Block - Left I/P, Top View
Junction Block - Left I/P, Bottom View

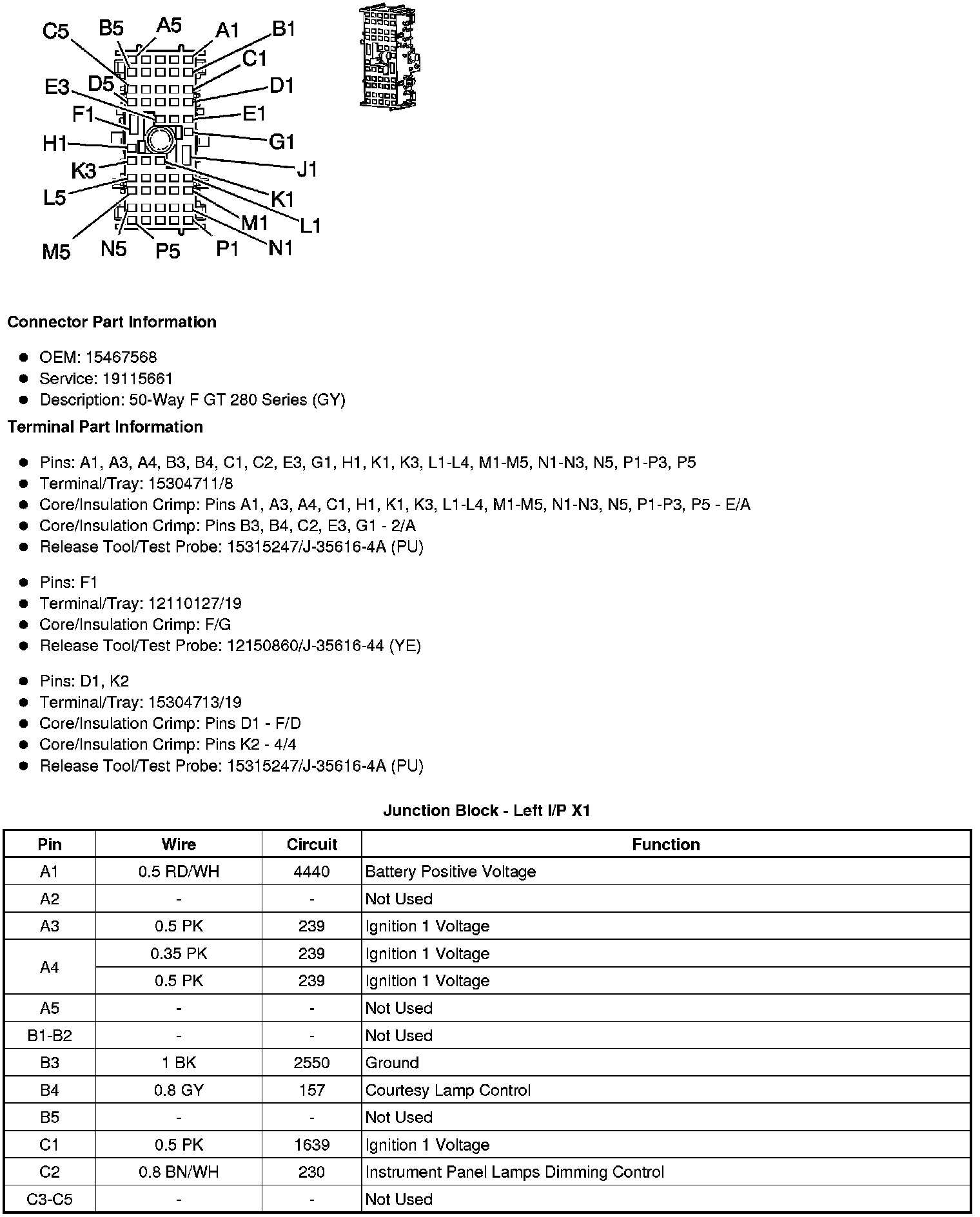

Junction Block - Left I/P X1

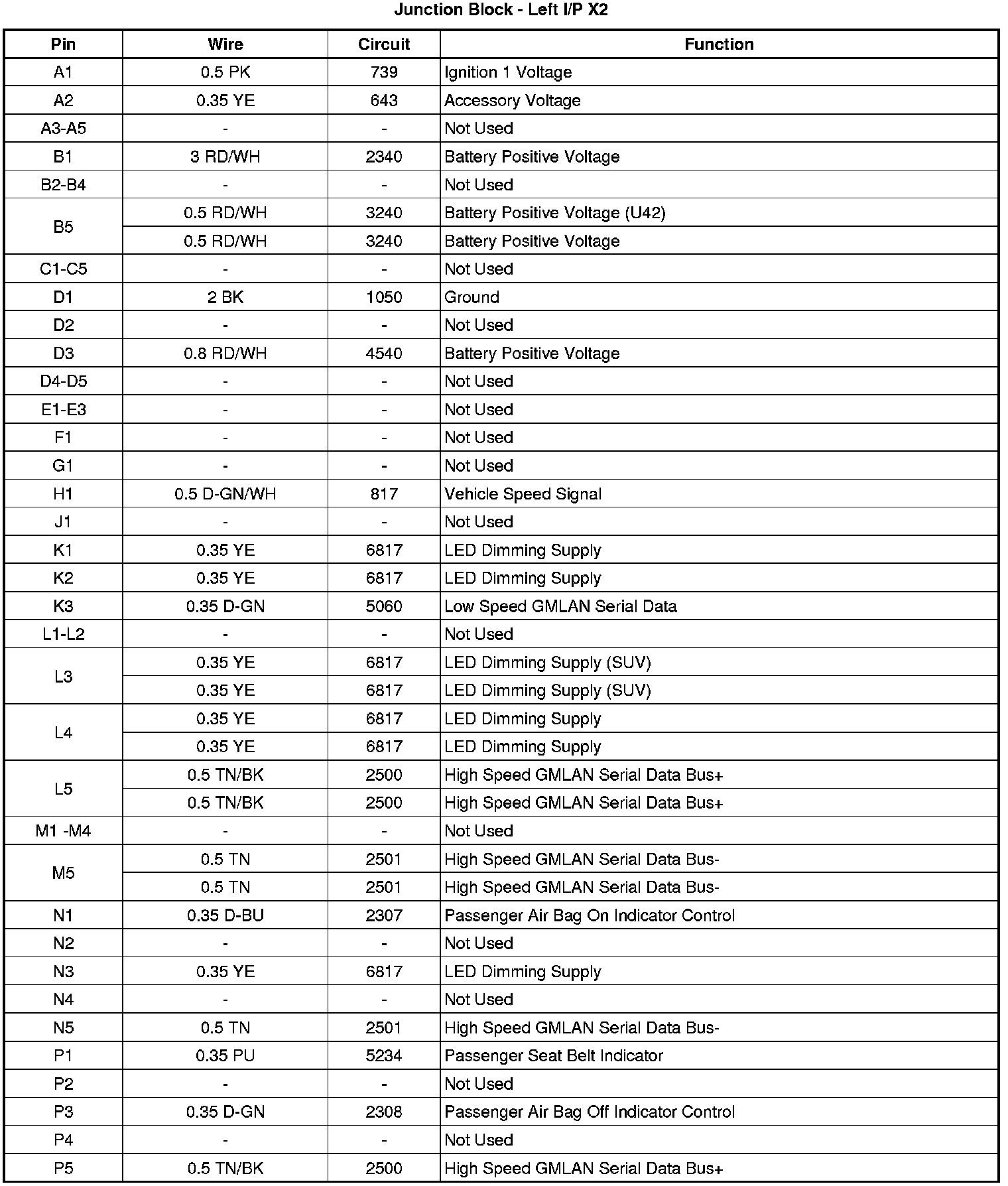

Junction Block - Left I/P X2
Junction Block - Left I/P X3

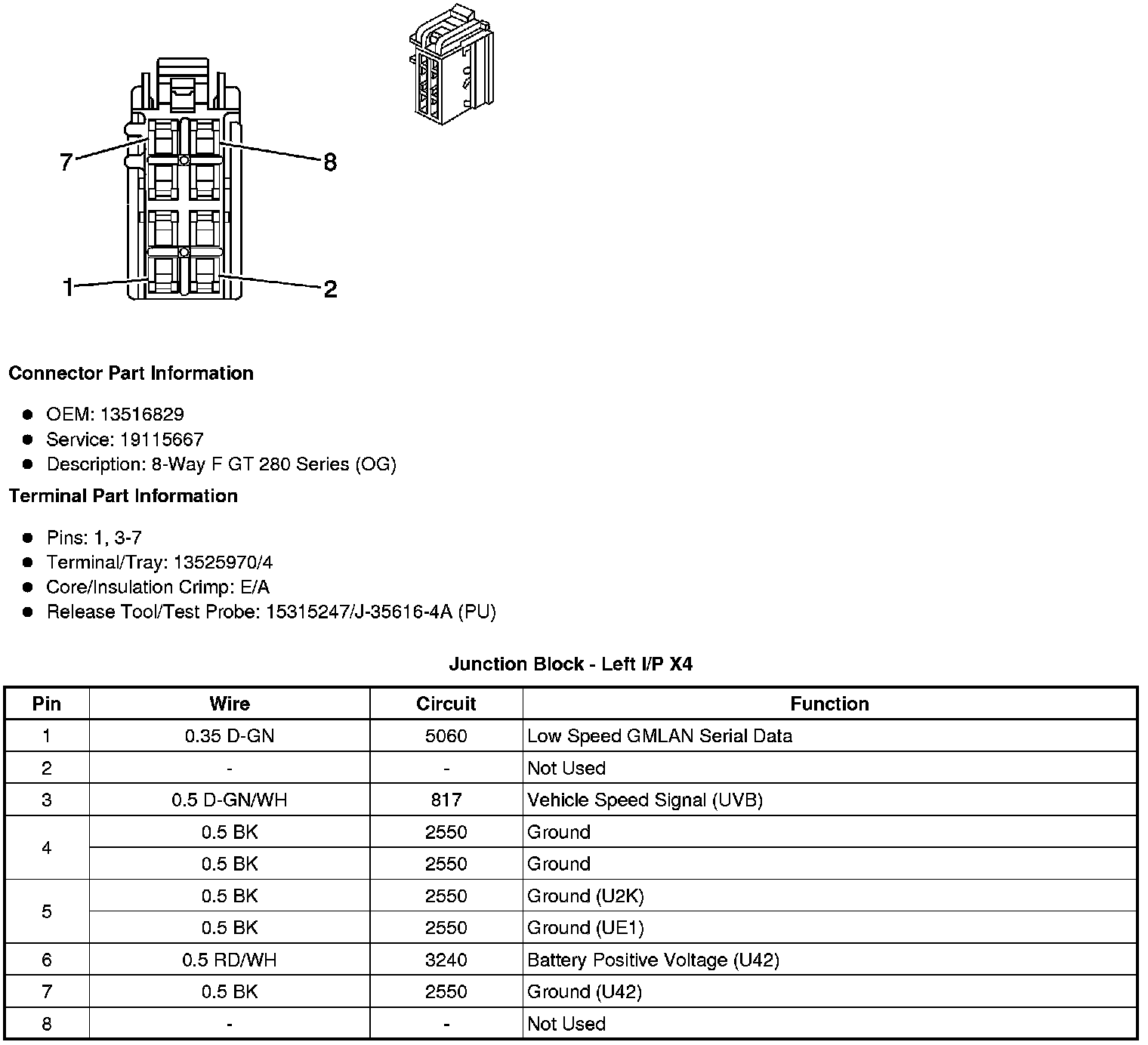

Junction Block - Left I/P X4

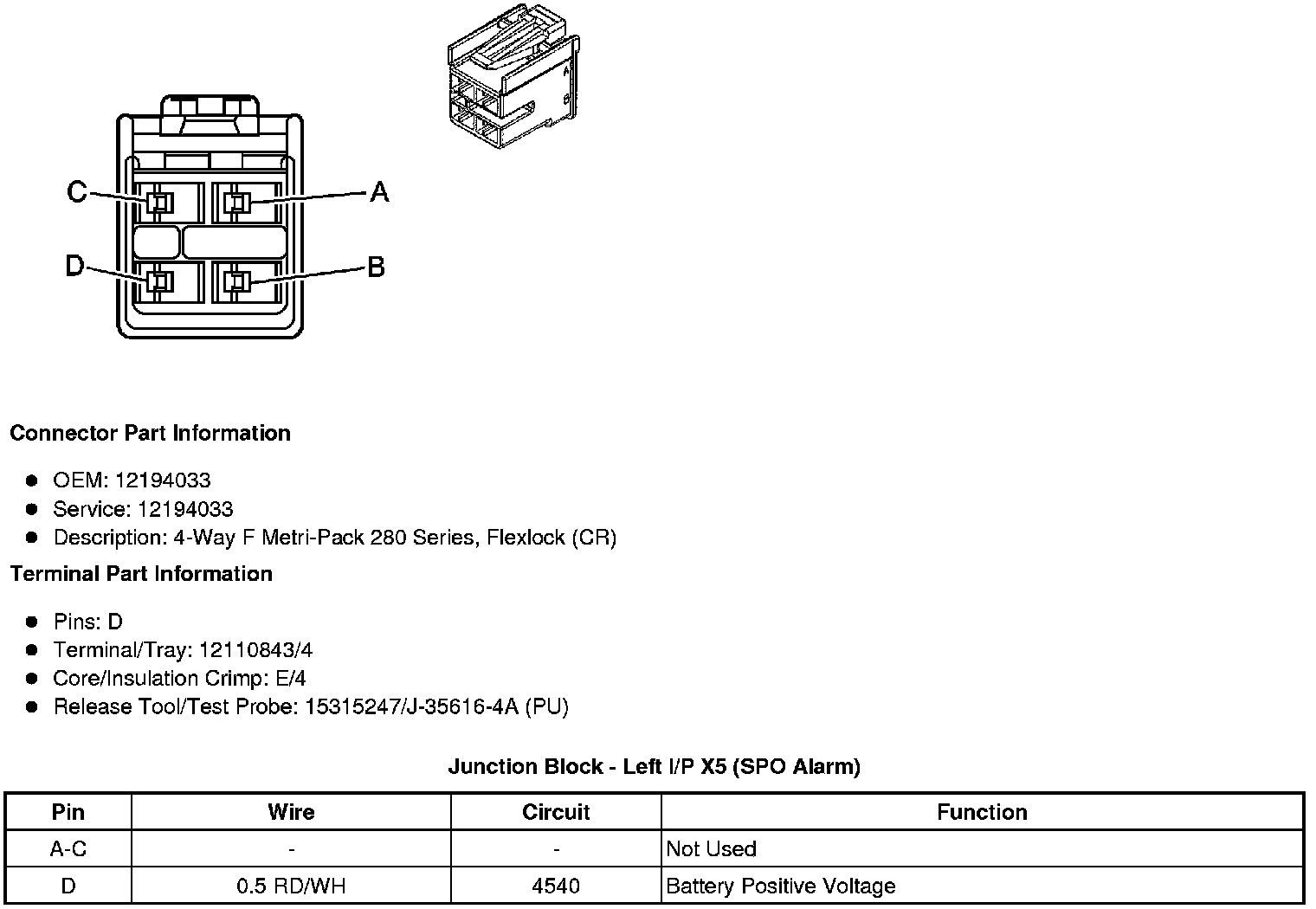

Junction Block - Left I/P X5 (SPO Alarm)

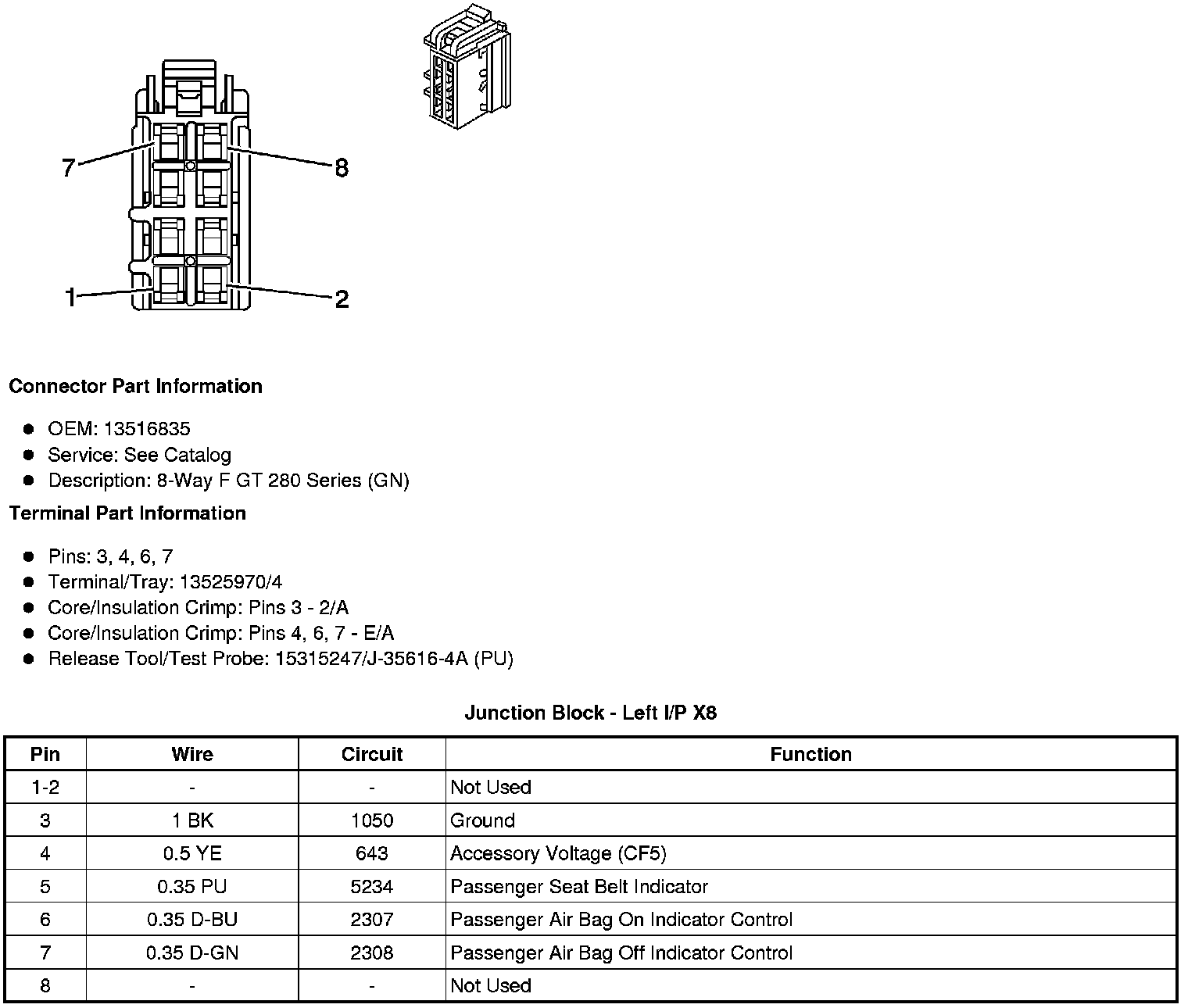

Junction Block - Left I/P X8

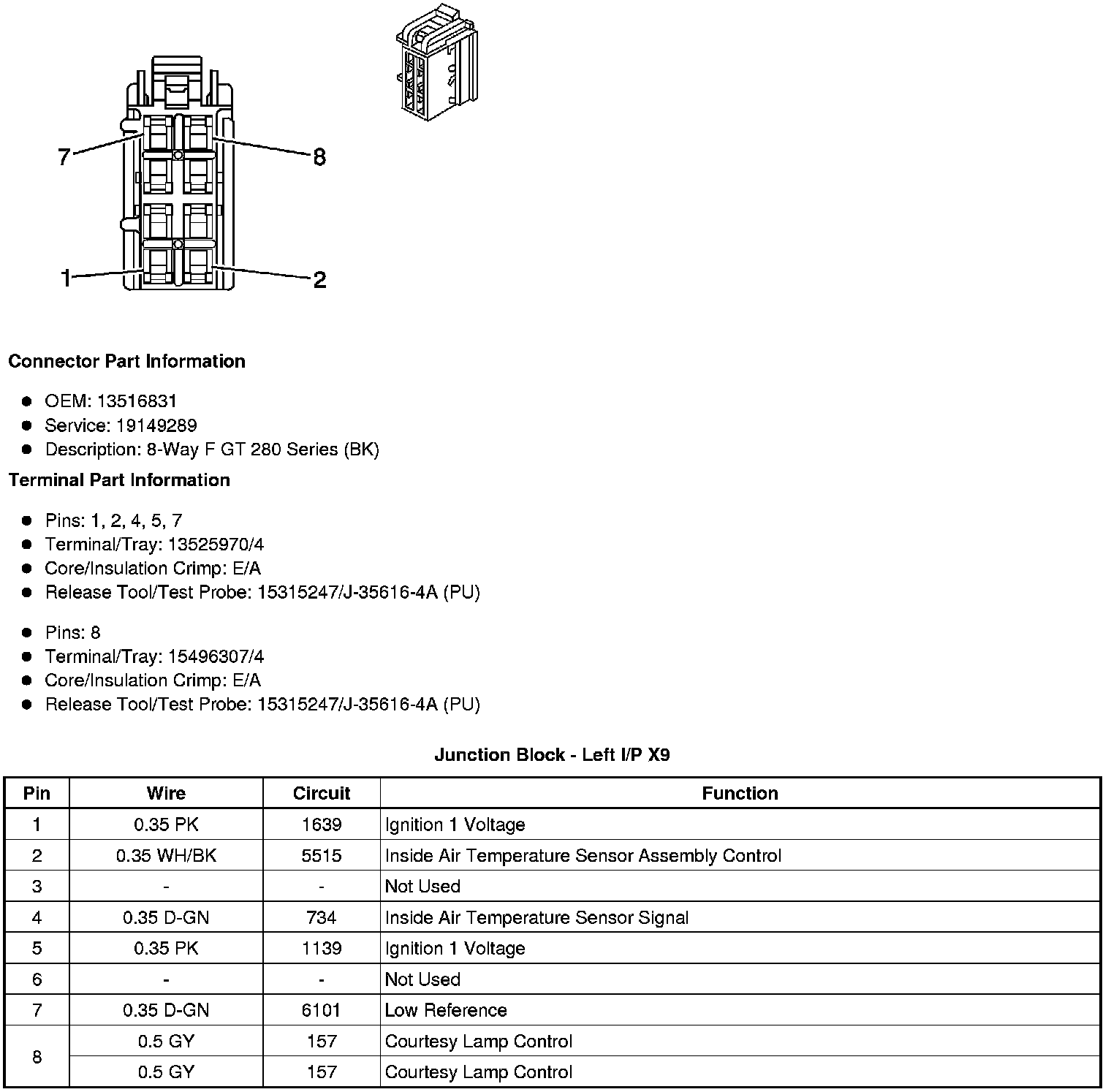

Junction Block - Left I/P X9

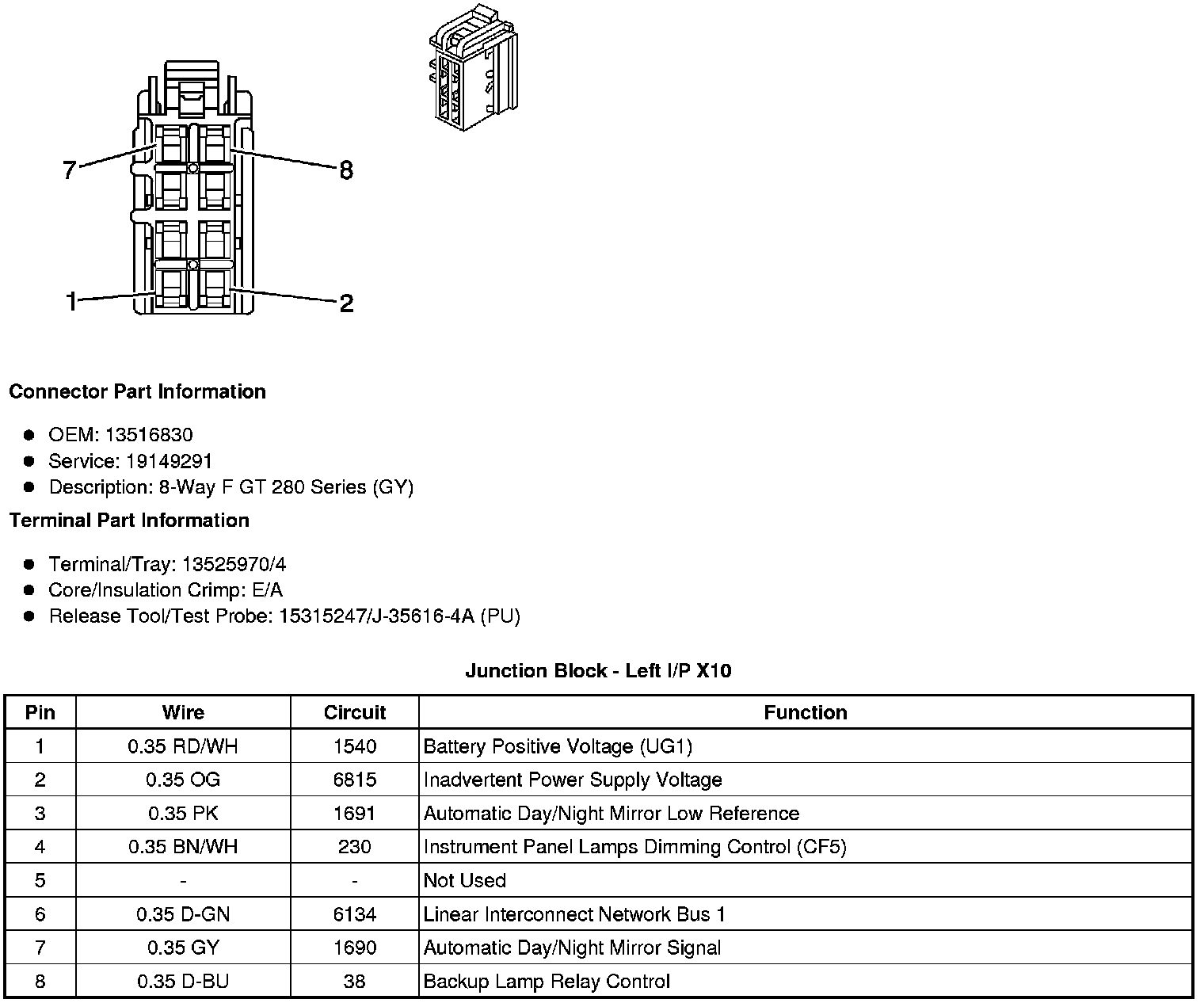

Junction Block - Left I/P X10

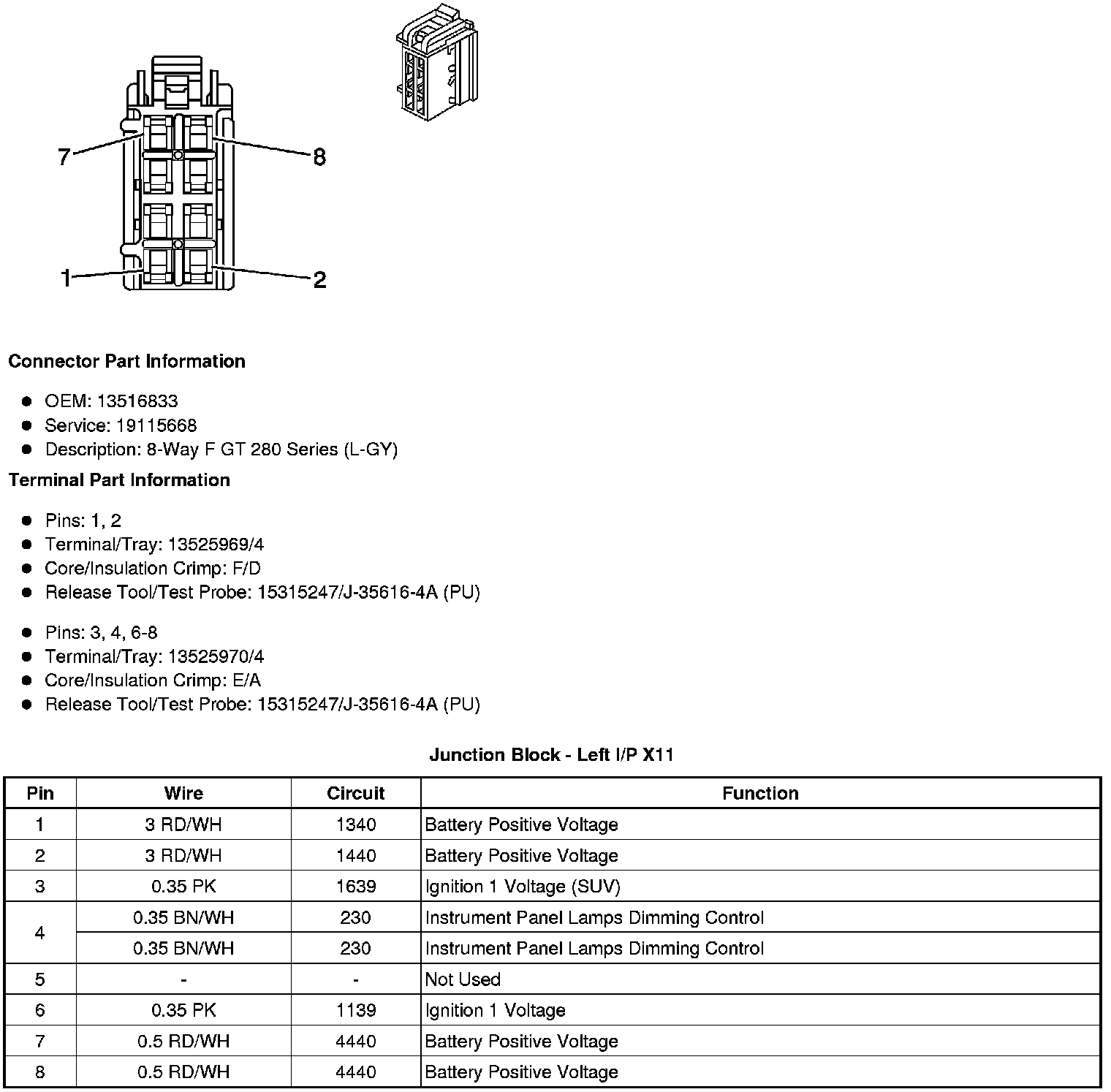

Junction Block - Left I/P X11

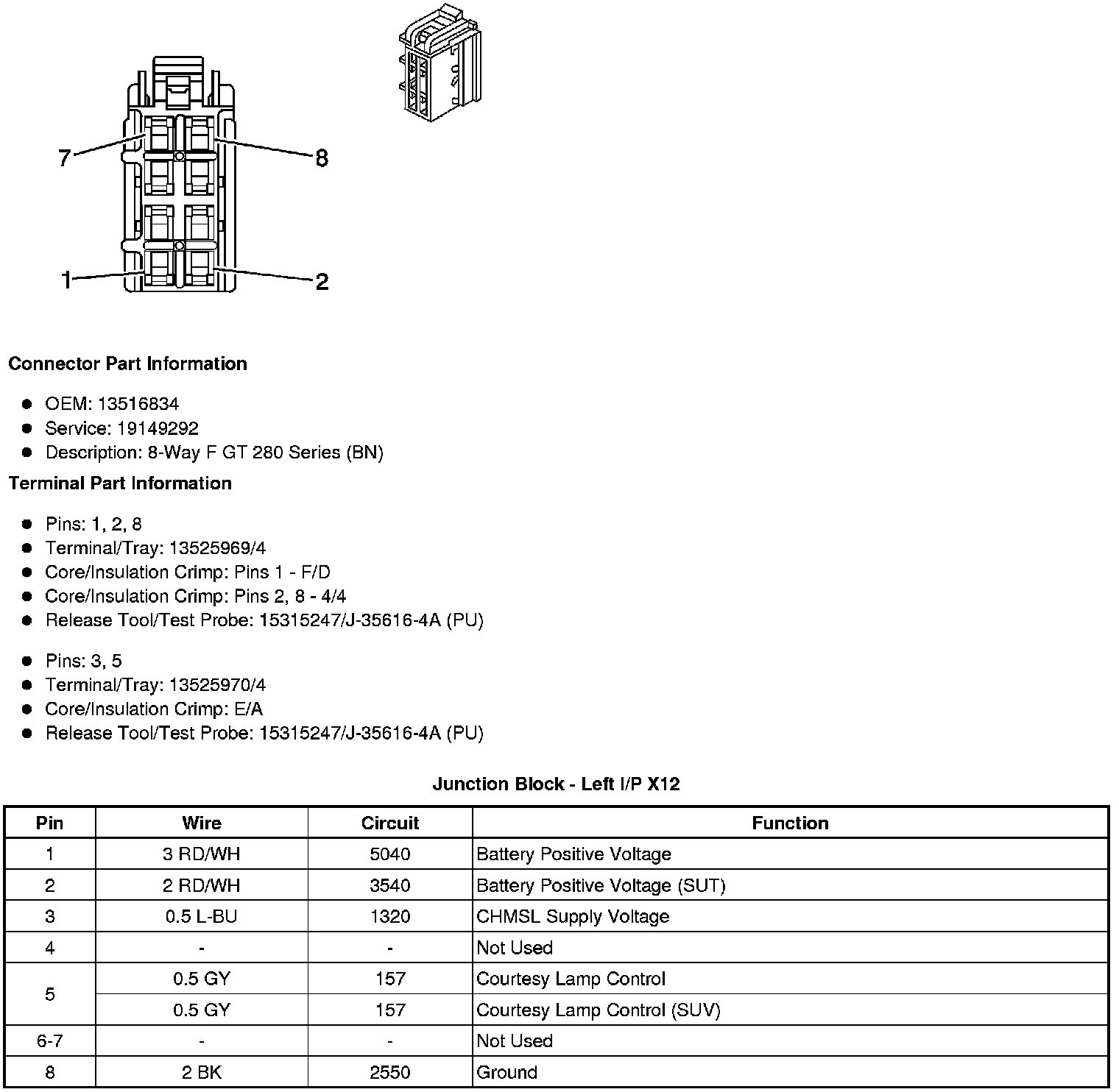

Junction Block - Left I/P X12

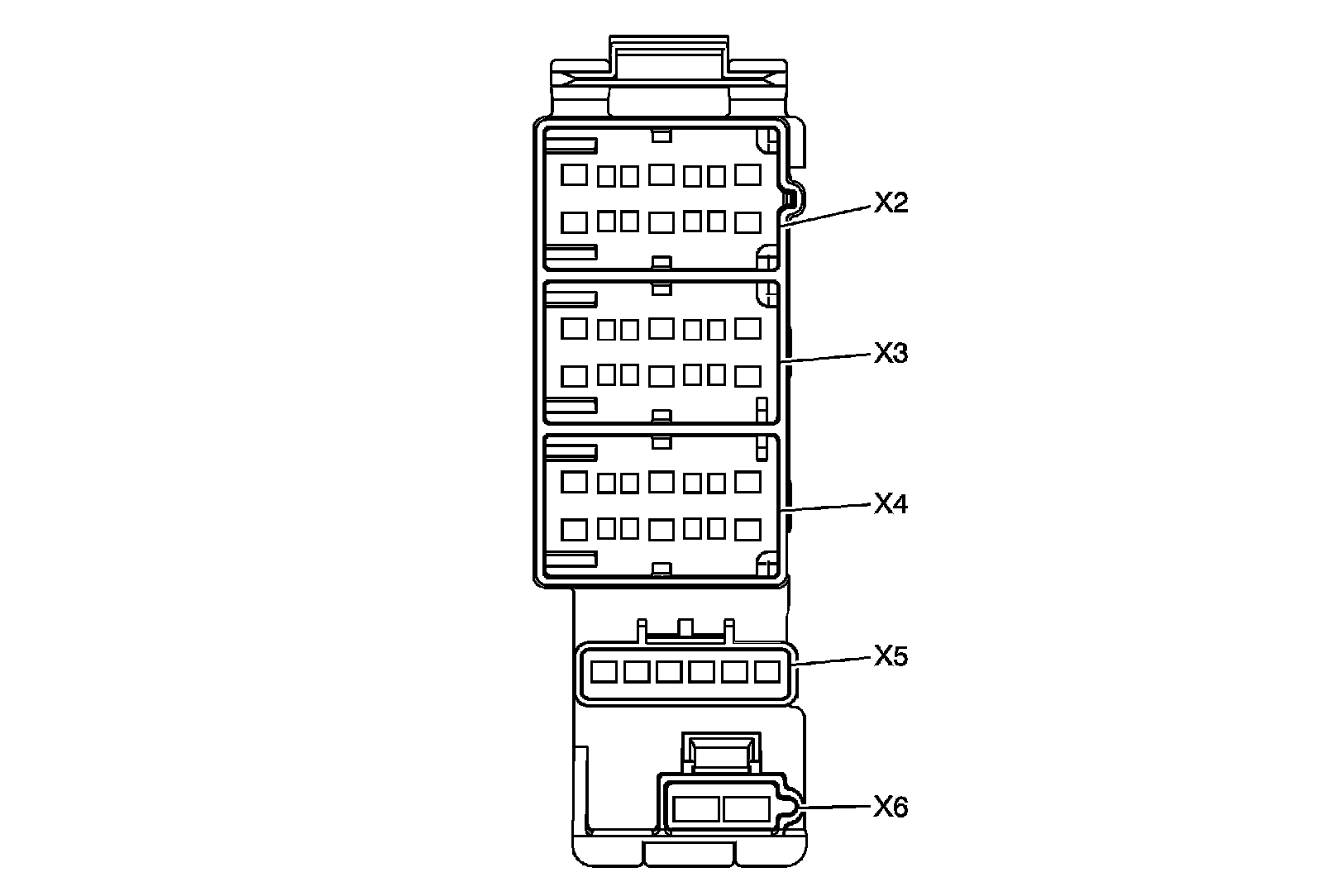

Junction Block - Right I/P, Top View

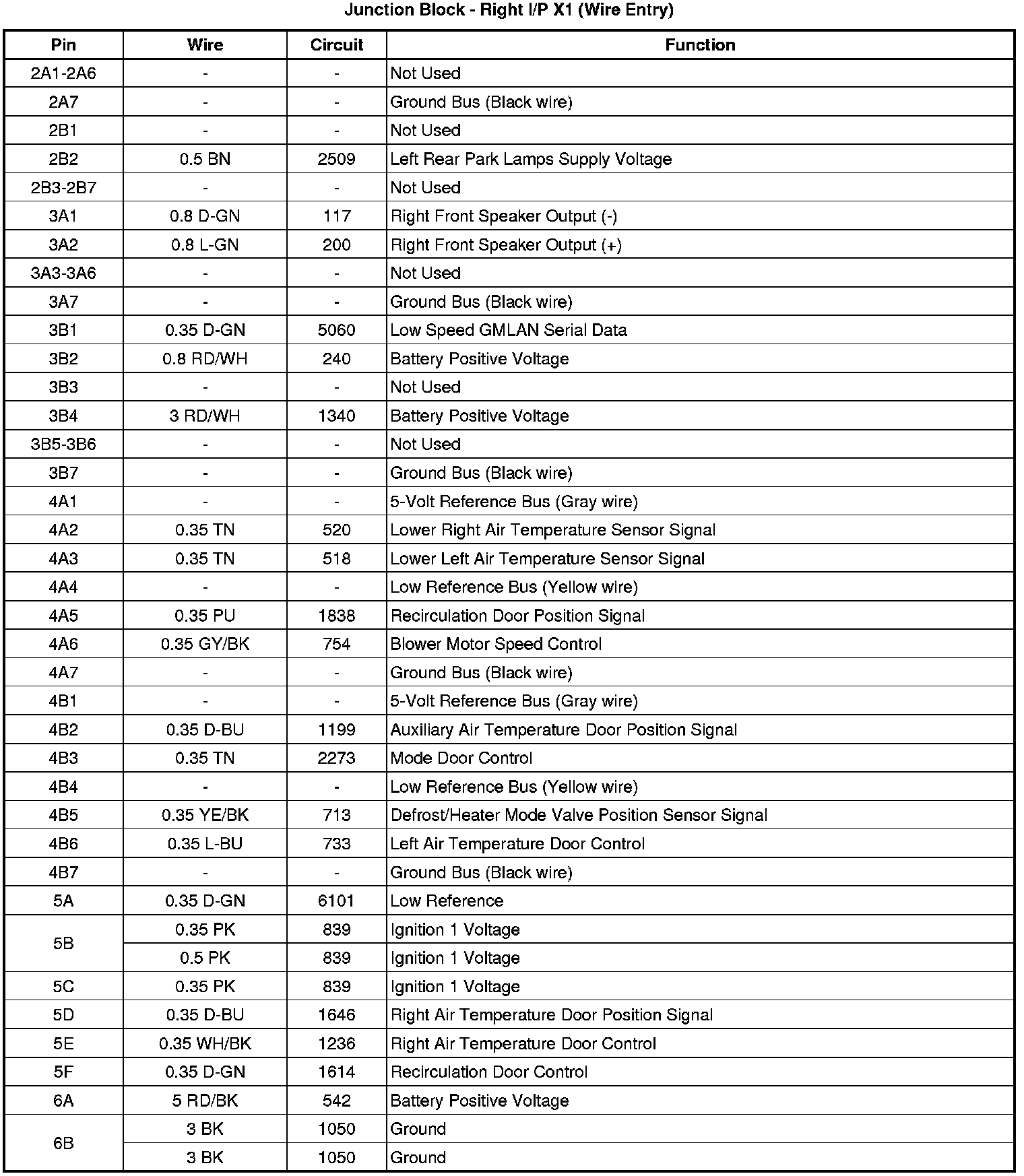

Junction Block - Right I/P X1 (Wire Entry)

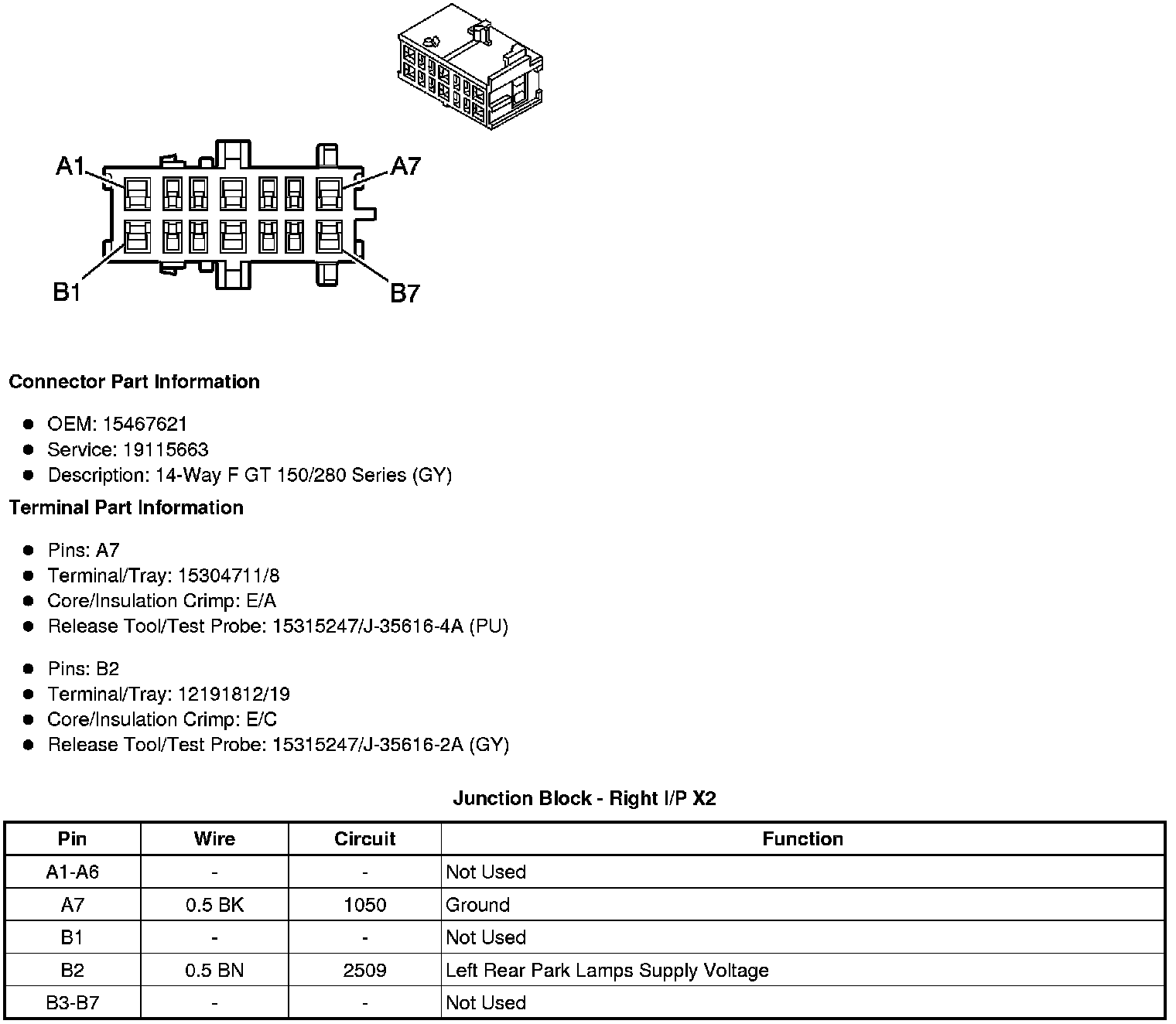

Junction Block - Right I/P X2

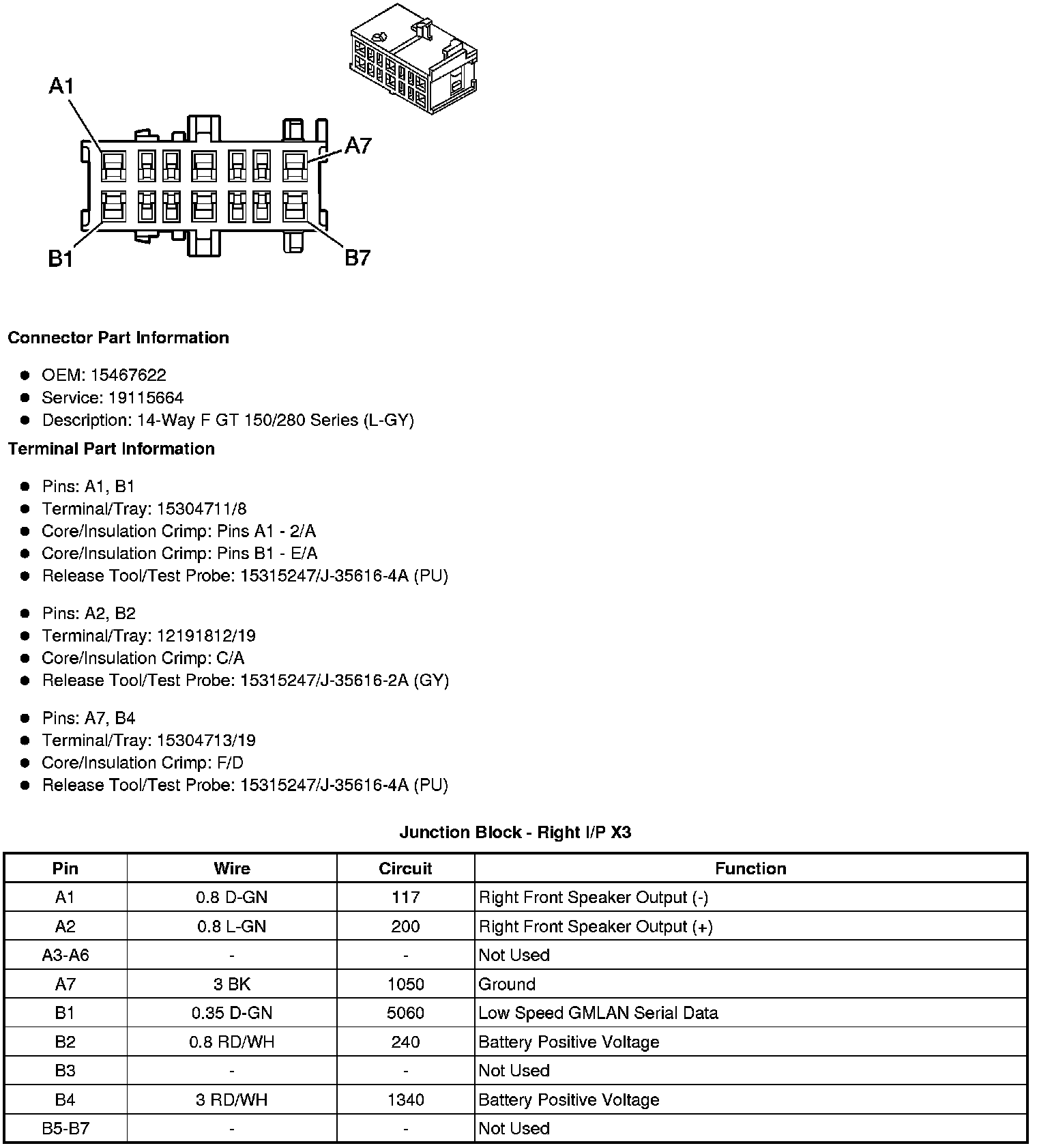

Junction Block - Right I/P X3

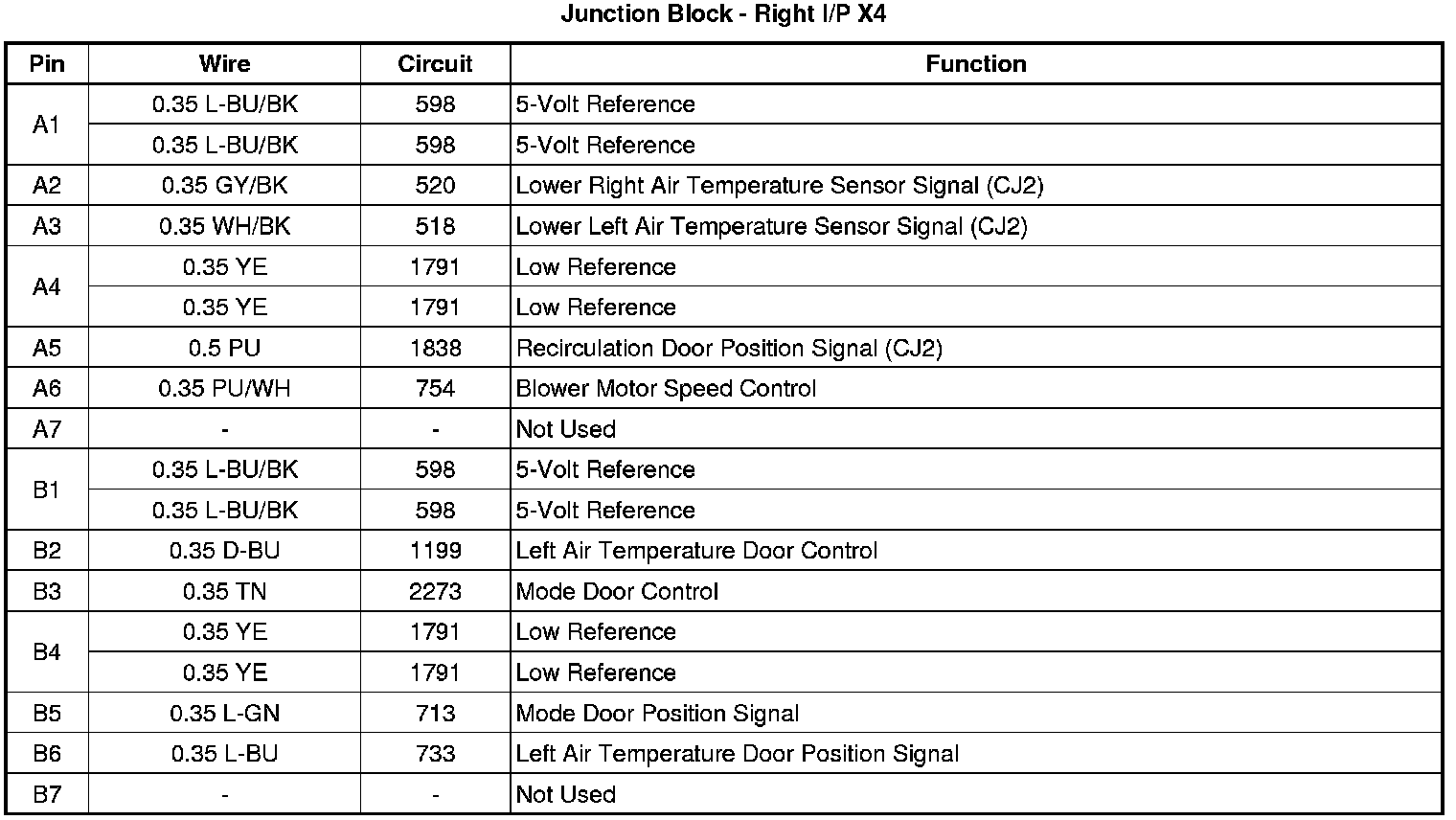

Junction Block - Right I/P X4

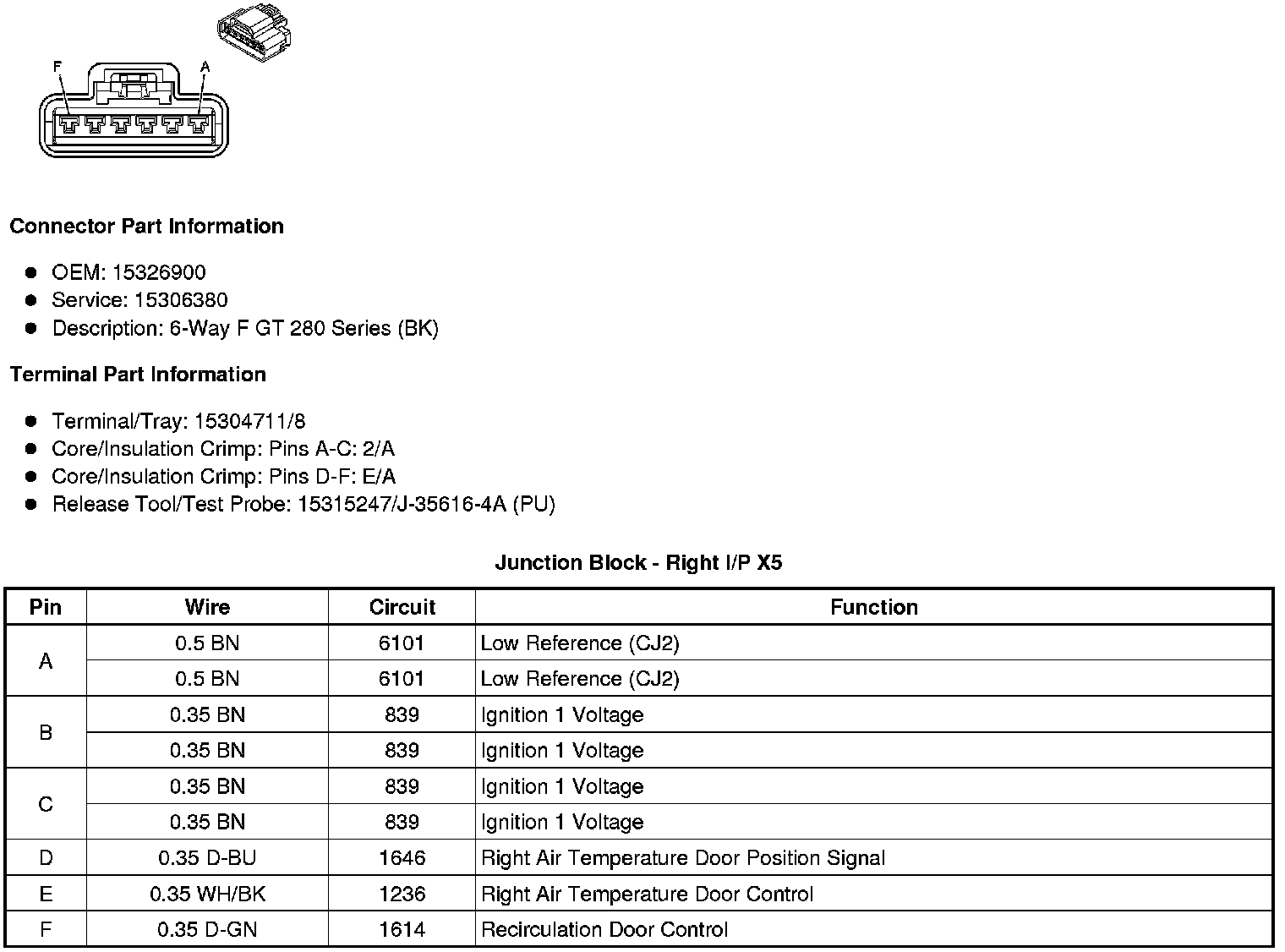

Junction Block - Right I/P X5

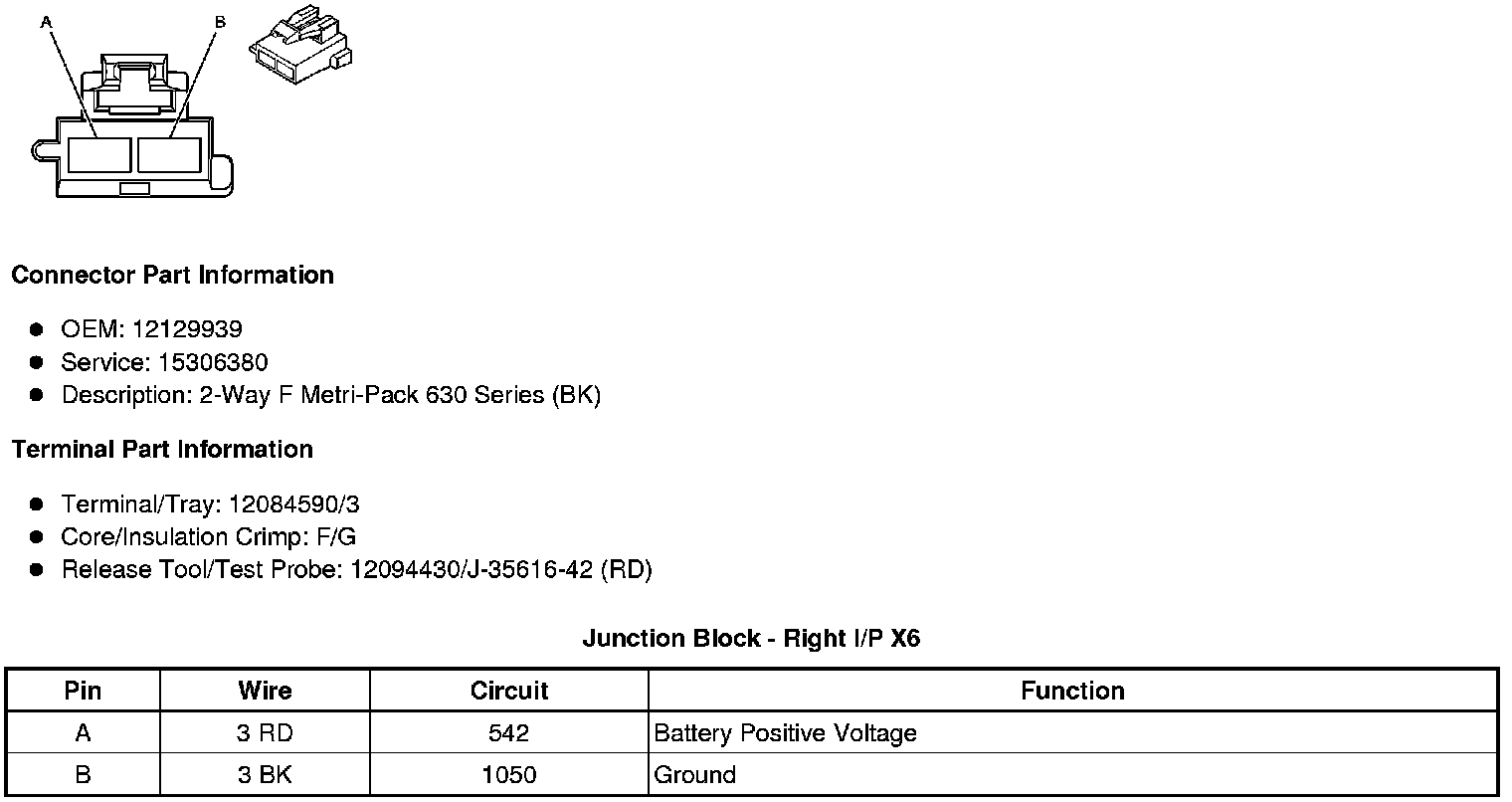

Junction Block - Right I/P X6
