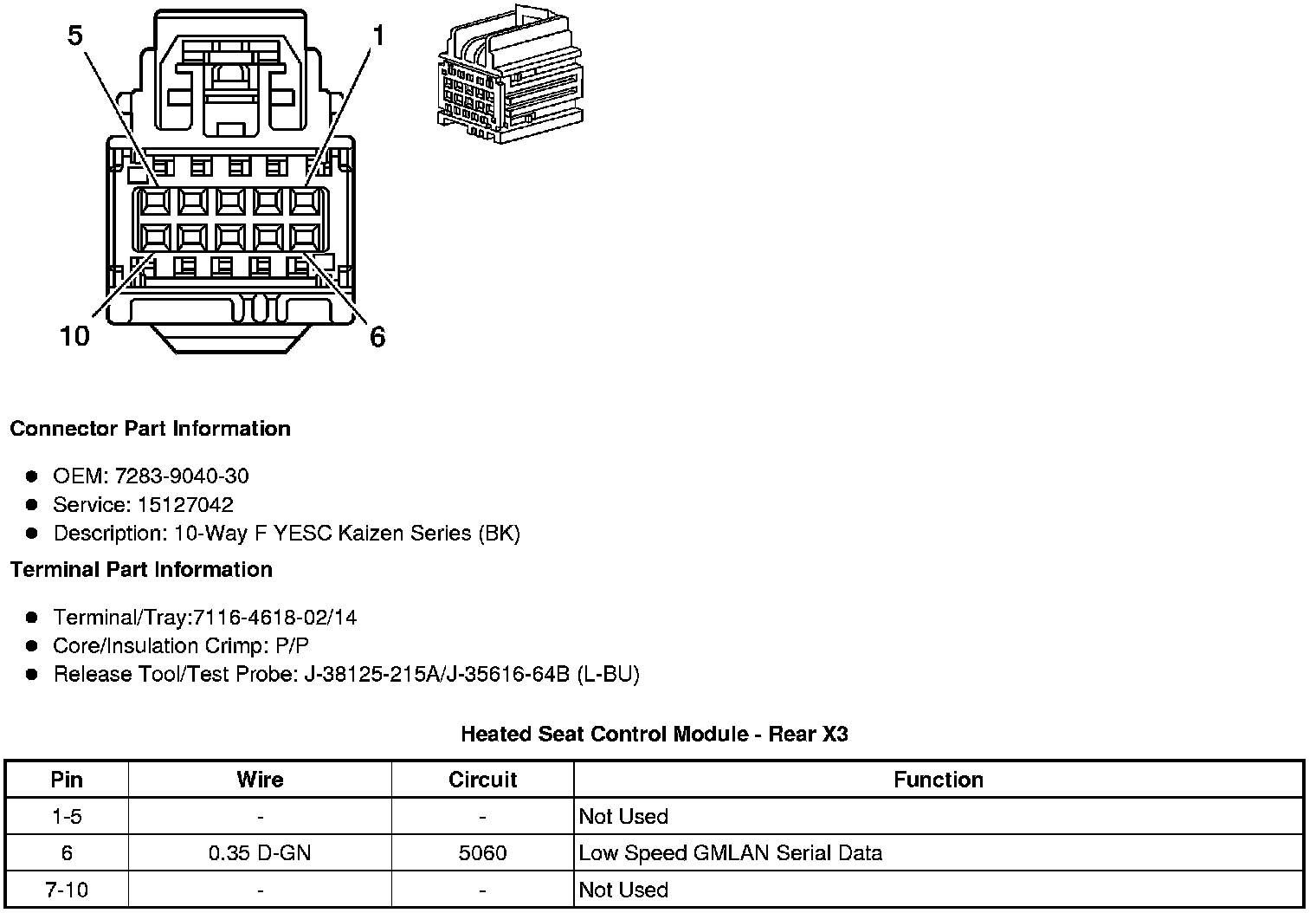

Heated Seat Control Module - Rear X3




Component Connector End Views

Heated Seat Control Module - Rear X3
