Thread Repair Specifications




Thread Repair Specifications

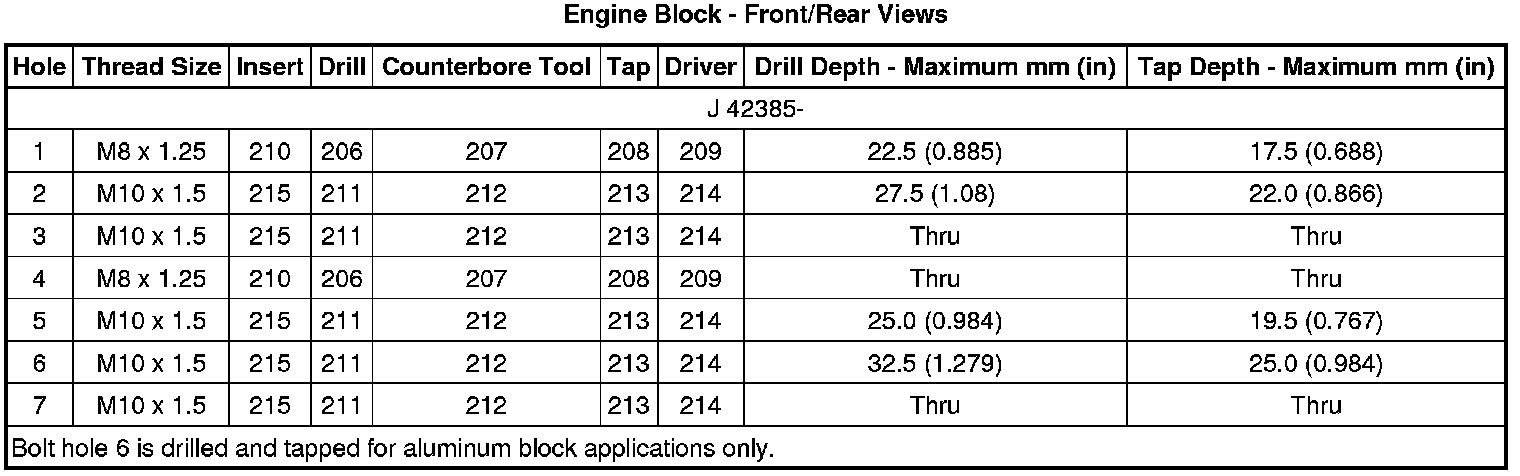

Engine Block - Front/Rear Views

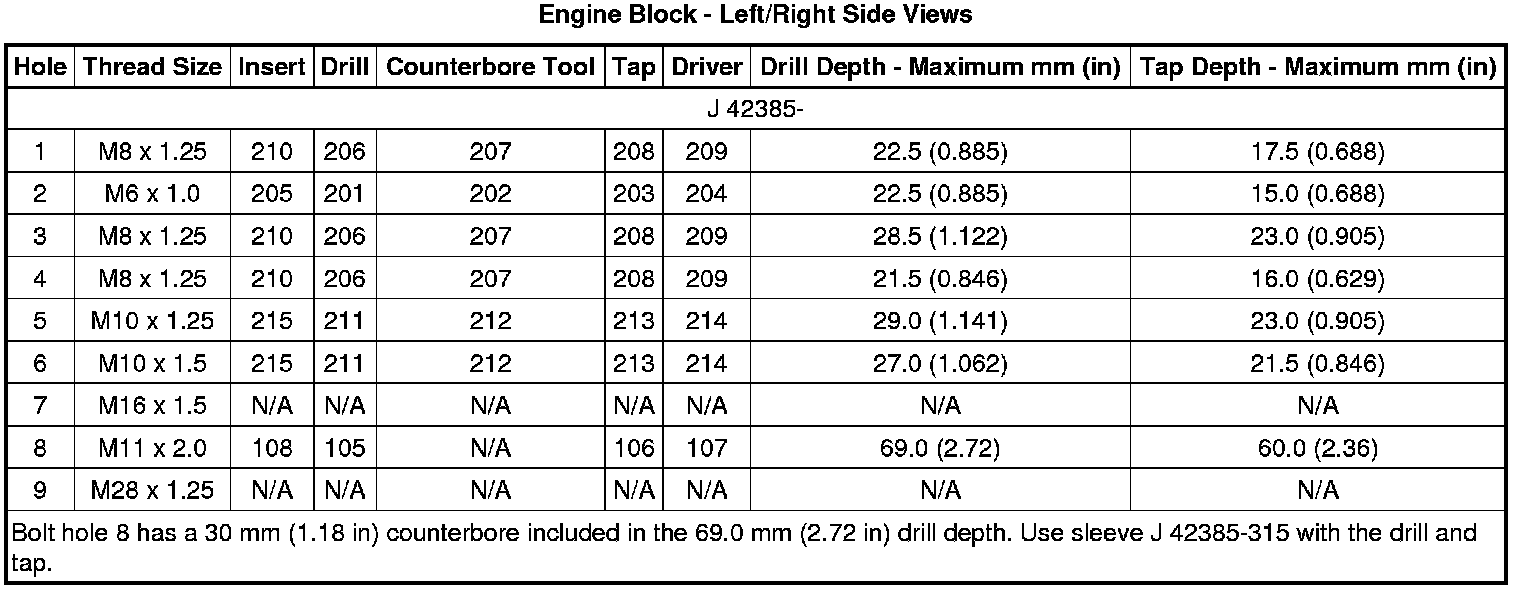

Engine Block - Left/Right Side Views

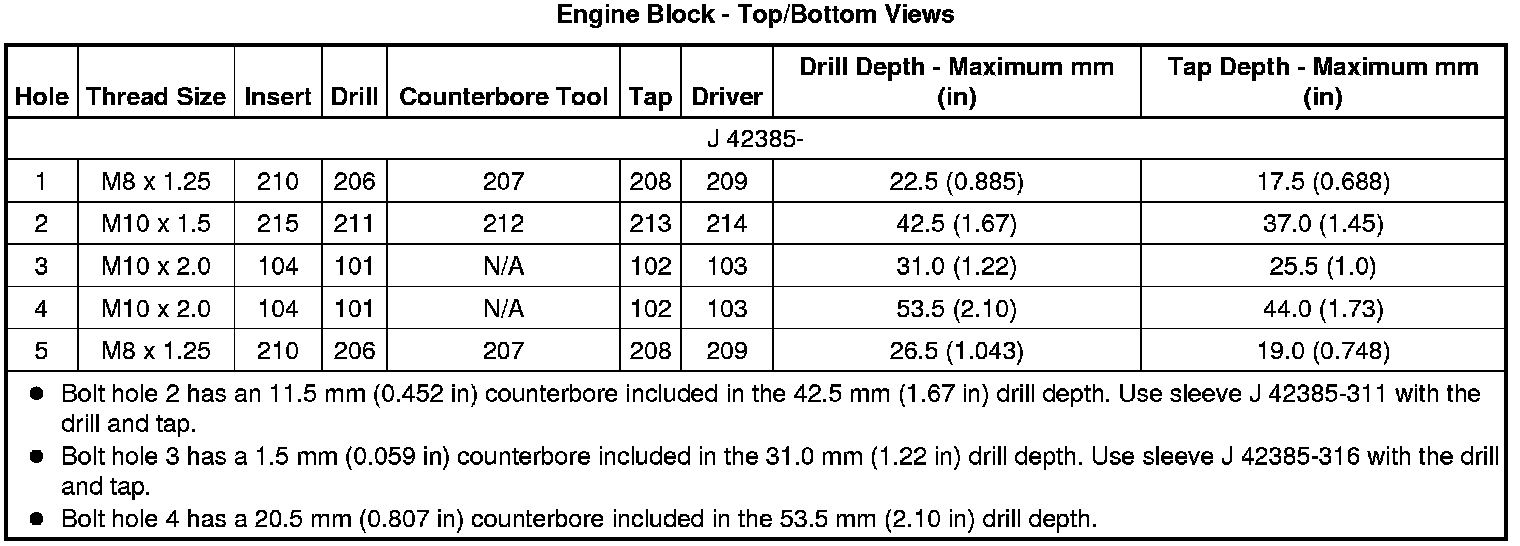

Engine Block - Top/Bottom Views

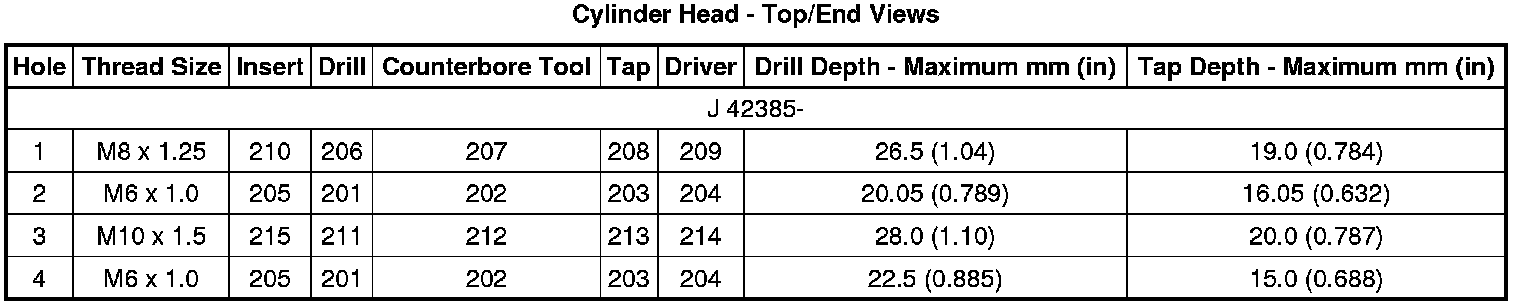

Cylinder Head - Top/End Views

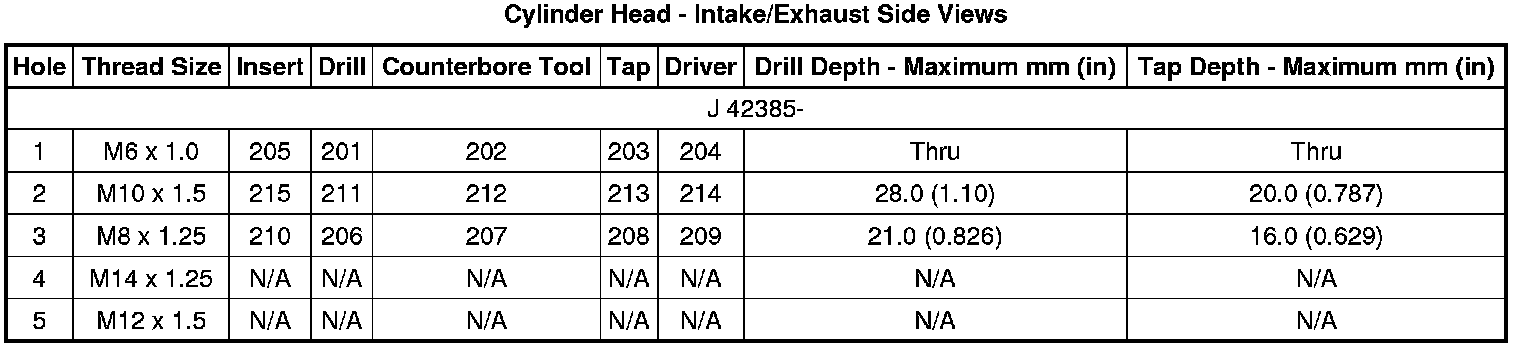

Cylinder Head - Intake/Exhaust Side Views
