Control Module HVAC: Locations

Luggage Compartment/Rear of Vehicle Component Views

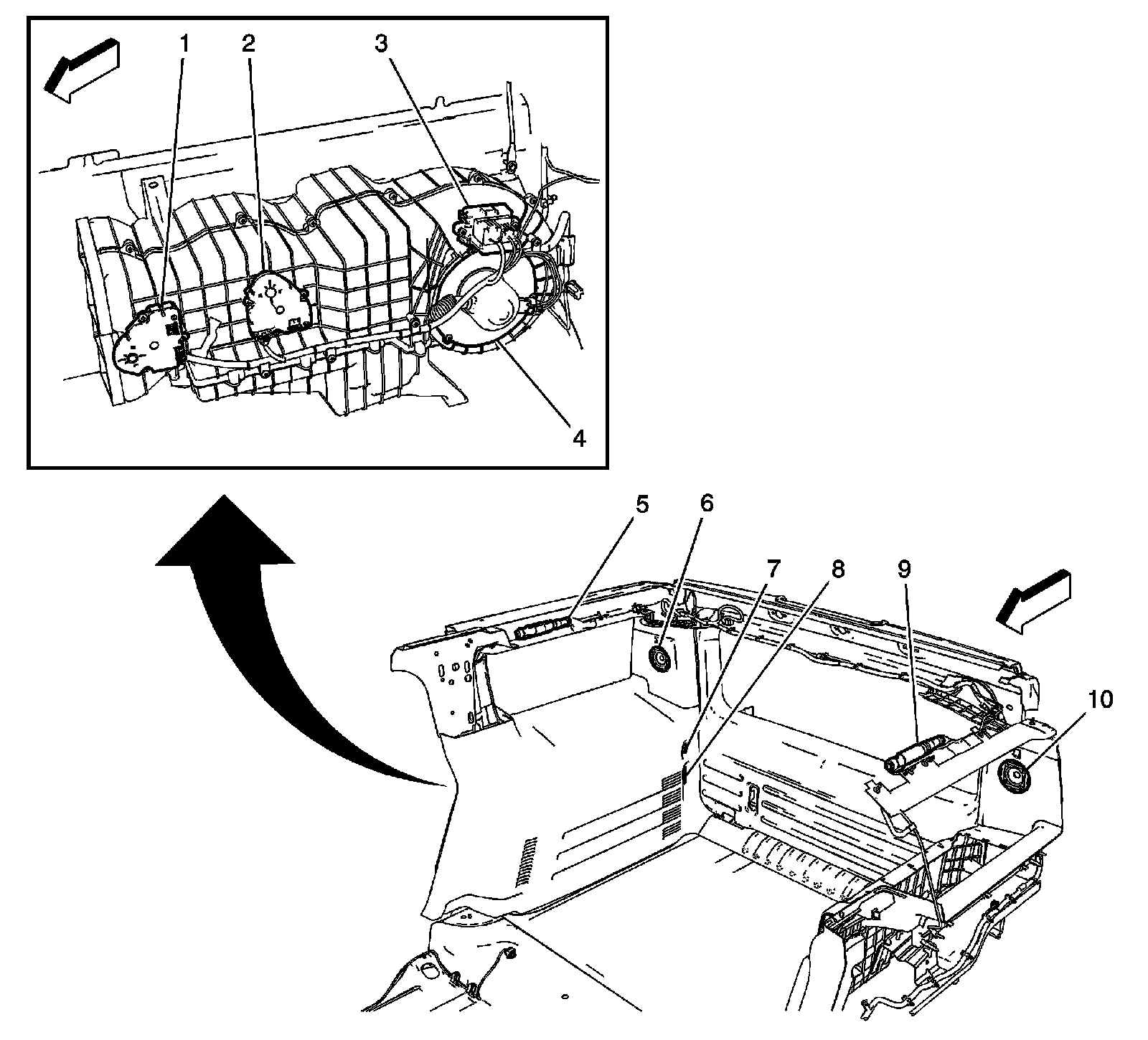

Rear Compartment Components




1 - Mode Actuator-Auxiliary
2 - Air Temperature Actuator-Auxiliary
3 - Blower Motor Control Module-Auxiliary
4 - Blower Motor-Auxiliary
5 - Inflatable Restraint Roof Rail Module - Right Rear (AS3)
6 - Speaker - Right D-Pillar
7 - Accessory Power Outlet - Rear
8 - Inflator Air Switch (ZM6)
9 - Inflatable Restraint Roof Rail Module - Left Rear (AS3)
10 - Speaker - Left D-Pillar
