Solar Sensor: Service and Repair

Sun Load Temperature Sensor Replacement

Removal Procedure




1. Remove the I/P upper trim panel with windshield defroster nozzle grille. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement).

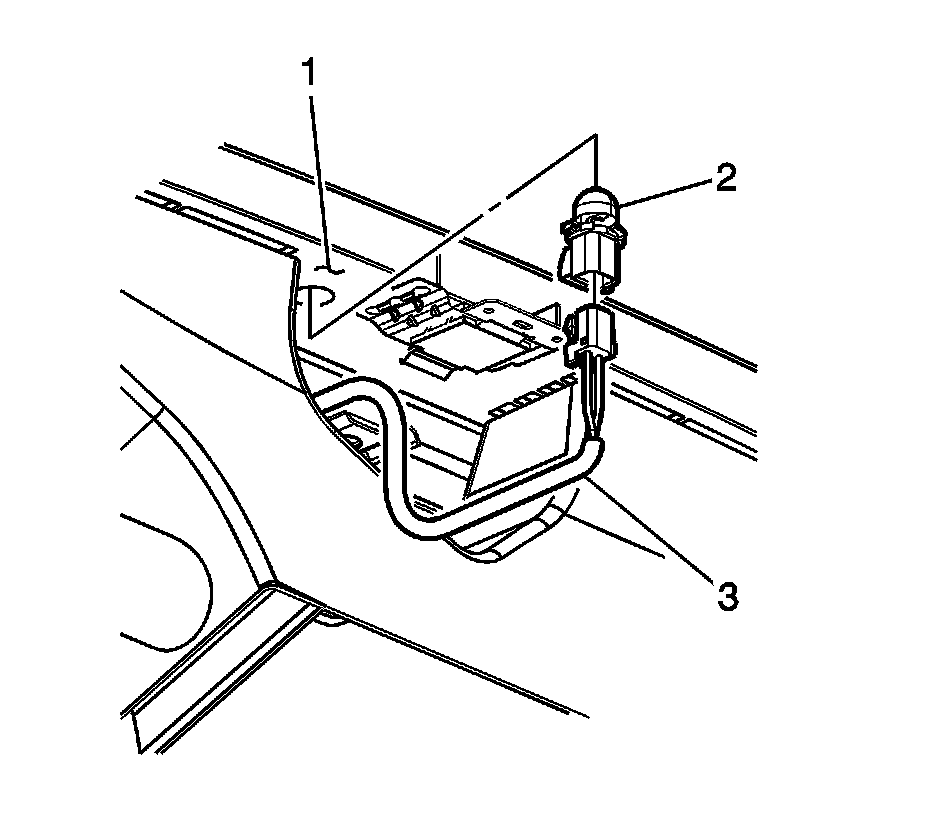

2. Remove the sun load sensor (2) from the I/P upper trim panel by turning 1/4 turn.
3. Disconnect the electrical connector from the sun load sensor (3).

Installation Procedure




1. Connect the electrical connector to the sun load sensor (3).
2. Install the sun load sensor (2) to the I/P upper trim panel by turning 1/4 turn clockwise.
3. Install the I/P upper trim panel with windshield defroster nozzle grille. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement (Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement).
