Fuel System Components




Harness Routing Views

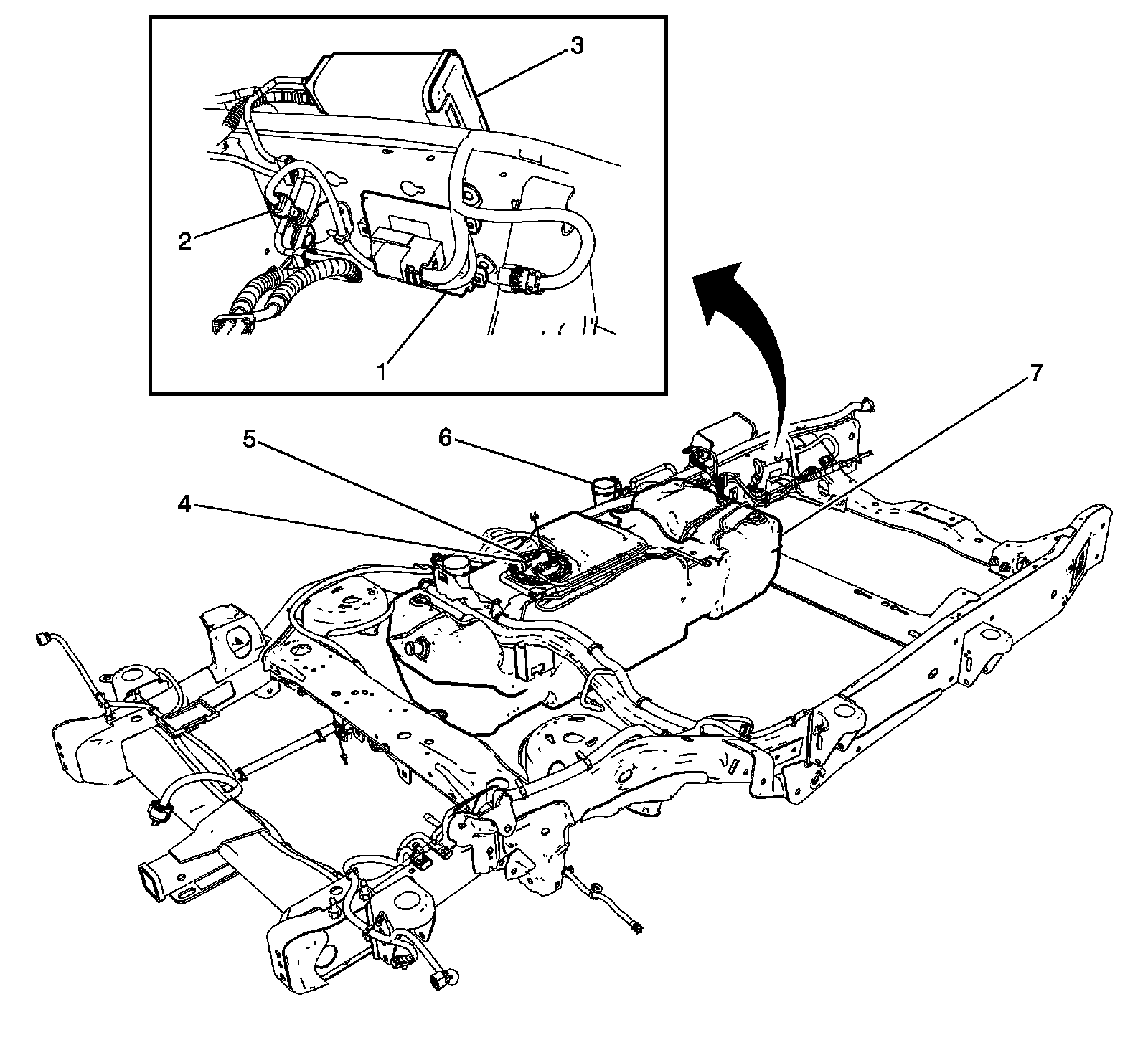

Fuel System Components




1 - Fuel Pump Flow Control Module
2 - Fuel Pressure Sensor
3 - Evaporative Emission (EVAP) Canister
4 - Fuel Tank Pressure (FTP) Sensor
5 - Fuel Pump and Sender Assembly
6 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
7 - Fuel Tank
