Engine Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

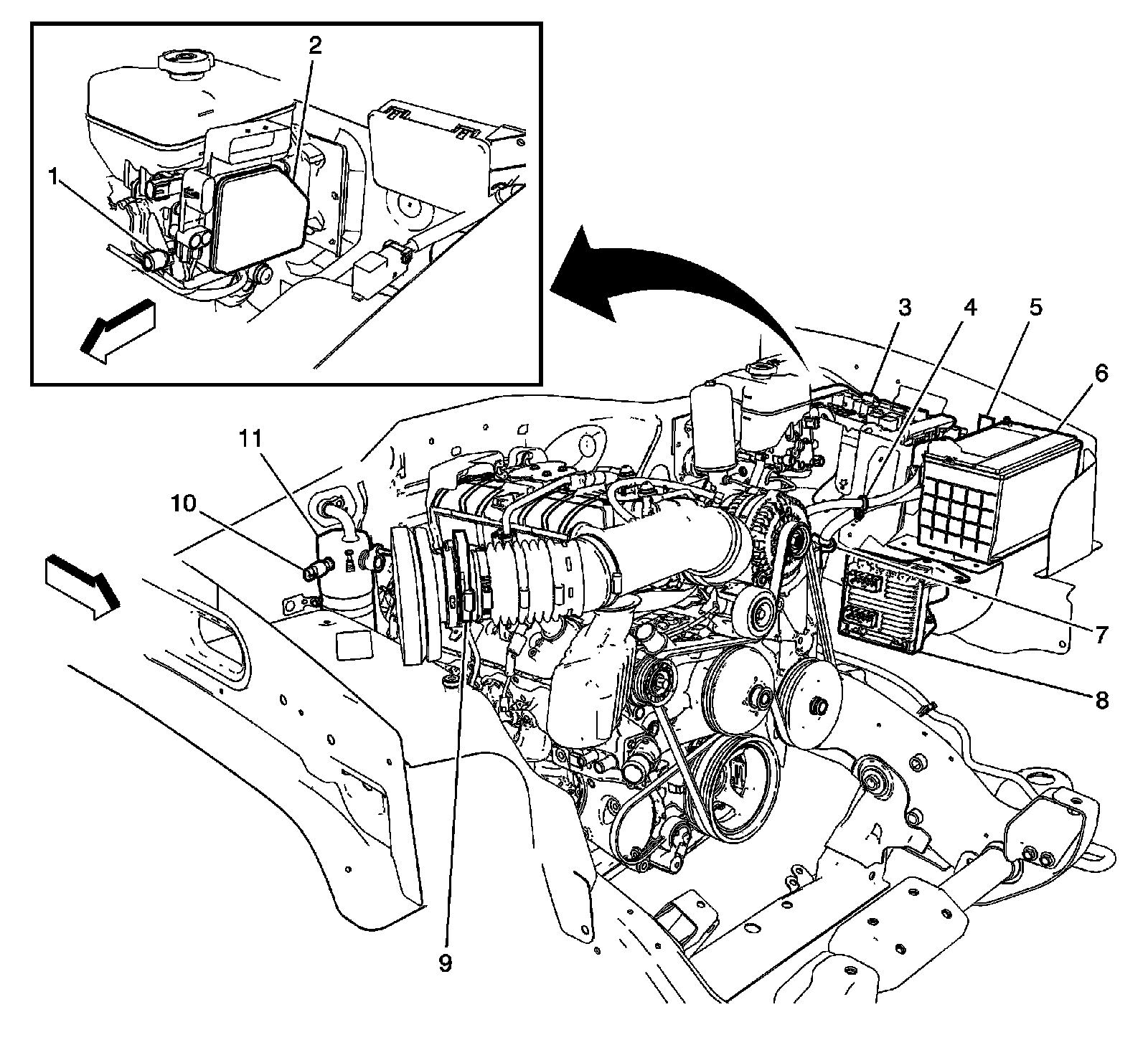

Engine Compartment - 2 of 2




1 - Brake Fluid Level Switch
2 - Electronic Brake Control Module (EBCM)
3 - Fuse Block-Underhood
4 - Air Suspension Relay (ZM6)
5 - Battery
6 - Junction Block - Battery Cable
7 - Engine Control Module (ECM)
8 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
9 - A/C Low Pressure Switch
10 - Accumulator
