Engine Controls Schematic 7




Engine Controls Schematics

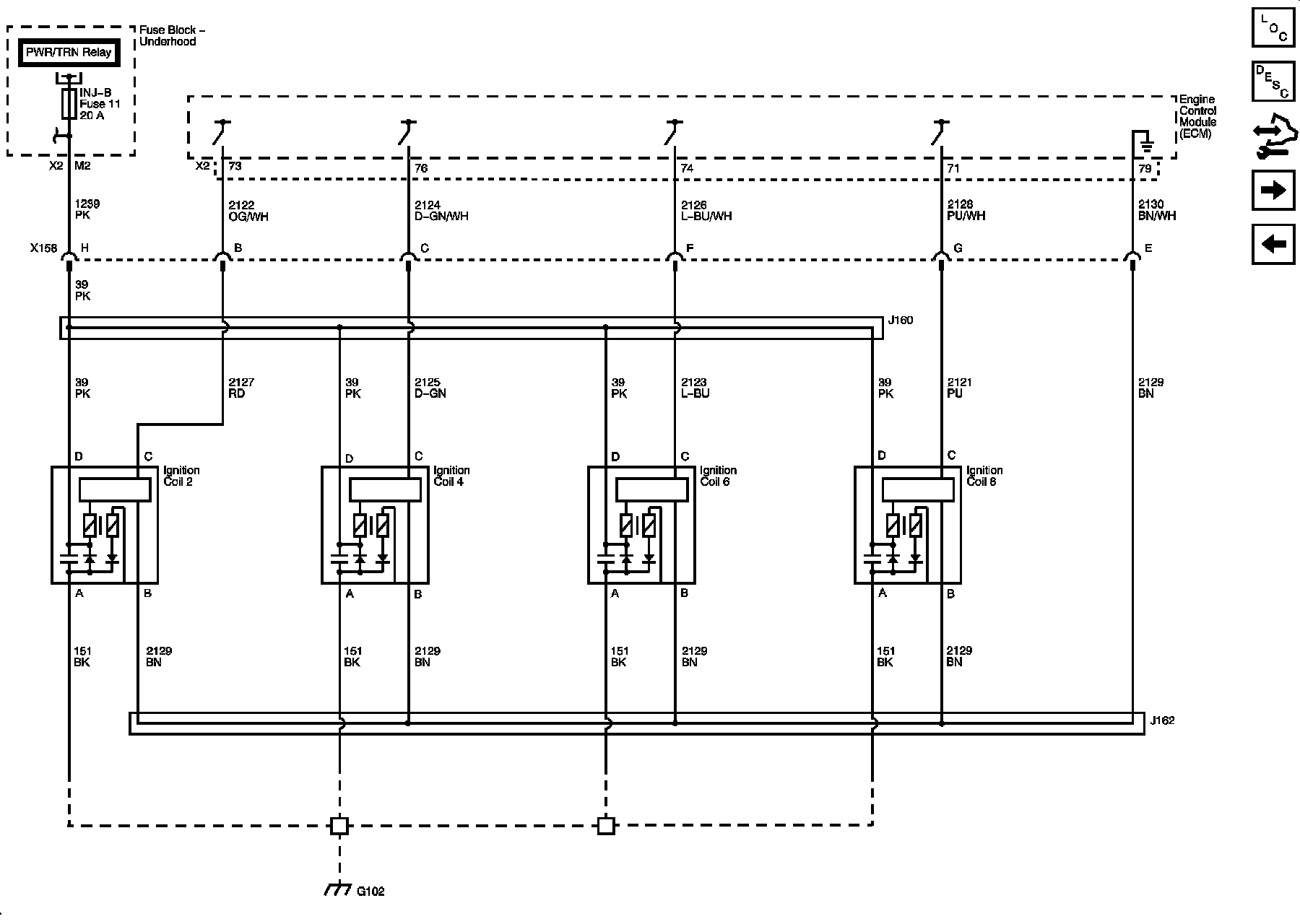

Ignition Controls - Ignition System Coils 2, 4, 6 and 8
