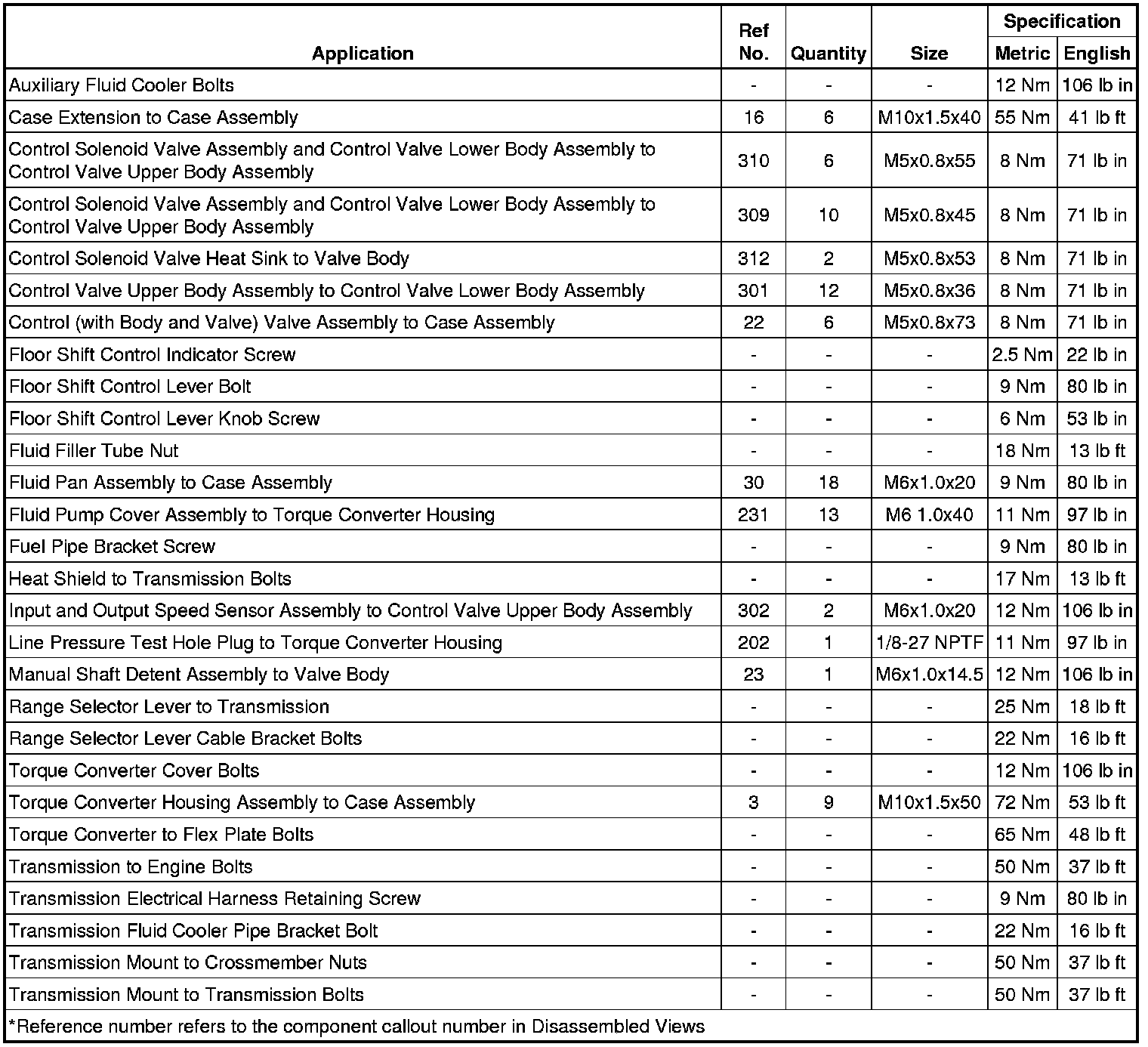

Fastener Tightening Specifications

Fastener Tightening Specifications

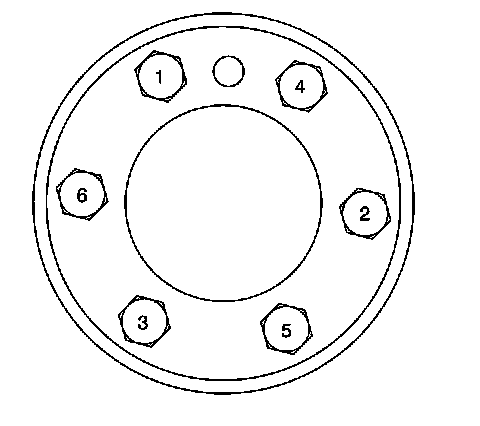

Flex Plate Bolts




Automatic Transmission Flex Plate Bolts - First Pass 20 Nm (15 lb ft)
Automatic Transmission Flex Plate Bolts - Second Pass 50 Nm (37 lb ft)
Automatic Transmission Flex Plate Bolts - Final Pass 100 Nm (74 lb ft)

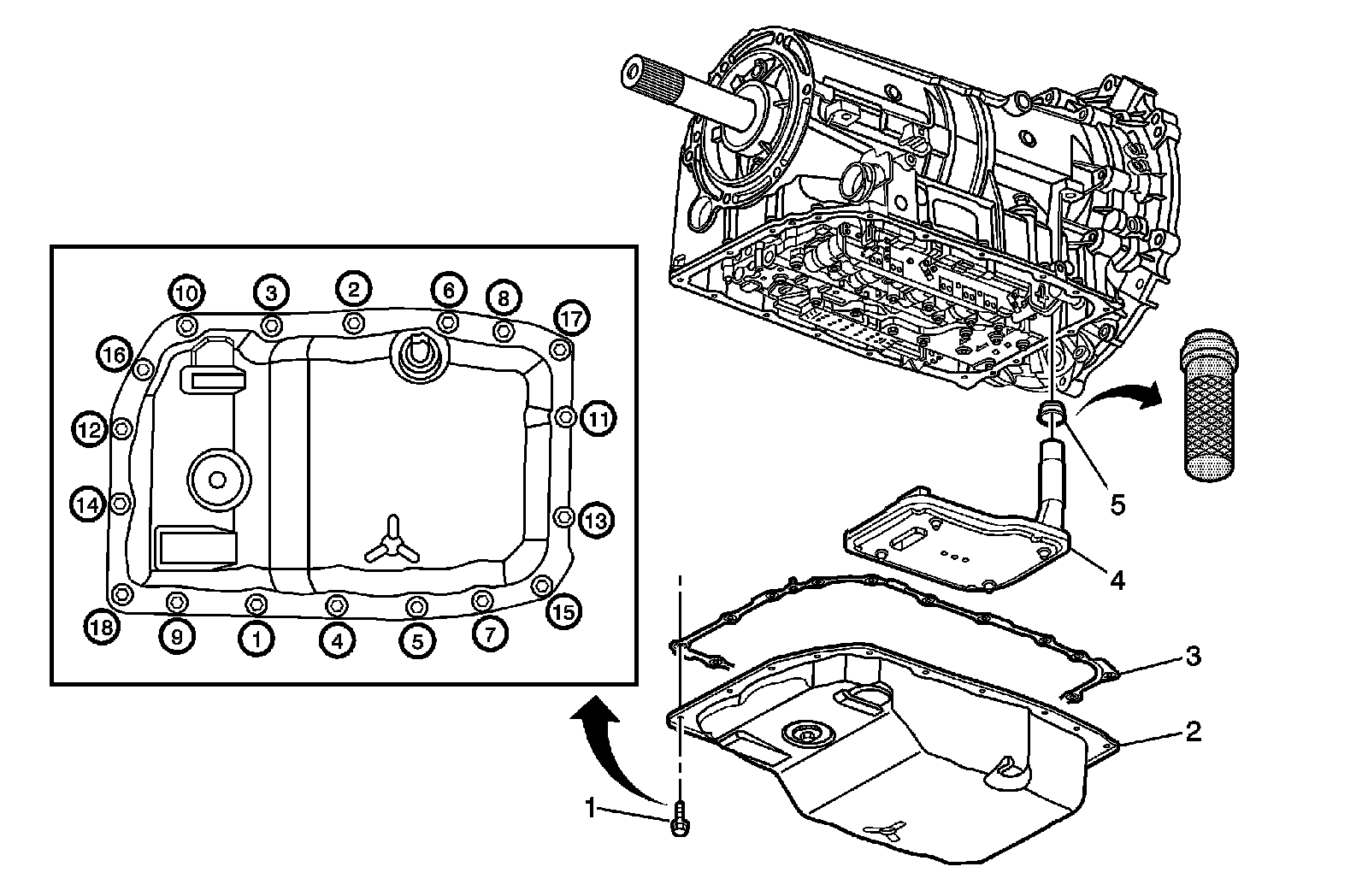

Fluid Pan Assembly




Fluid pan assembly to case assembly 9 Nm (80 lb in)
