Power Mirror Switch Replacement

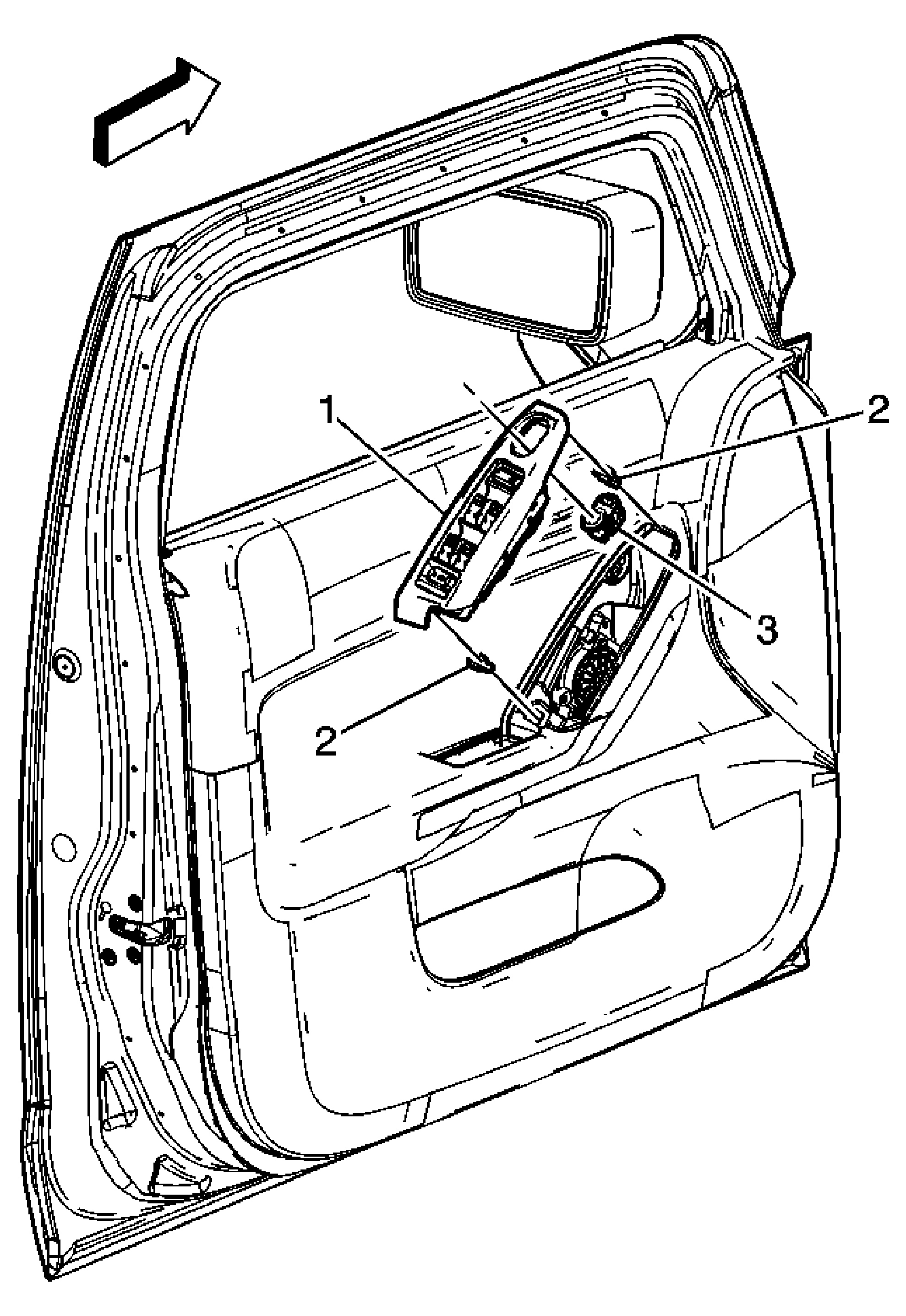

Fig 1: Replacing Power Mirror Switch
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Front Side Door Accessory Switch Mount Plate Assembly
2
Front Side Door Accessory Switch Mount Plate Clip (Qty: 2)
3
Power Mirror Switch Assembly
