Removal Procedure

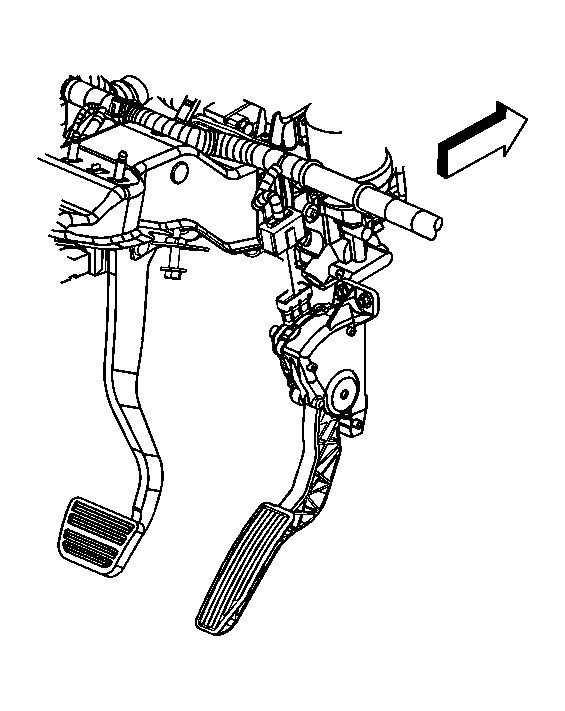

    Fig 1: Locating Accelerator Pedal Position APP Sensor
    GM1560064Courtesy of GENERAL MOTORS CORP.
  1. Remove the knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement (Right Hand Drive) or Driver Knee Bolster Bracket Replacement (Left Hand Drive) .
  2. Disconnect the body wiring harness electrical connector from the accelerator pedal position (APP) sensor.

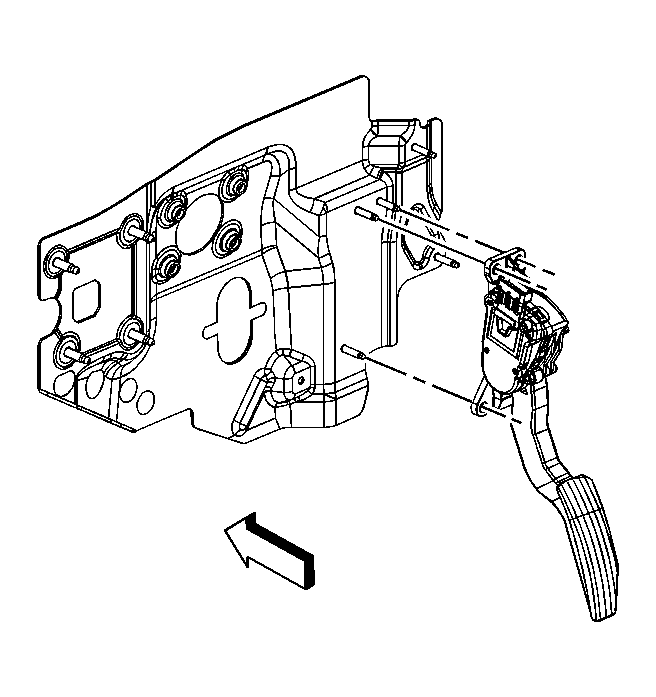

    3. Fig 2: Remove/Install Accelerator Pedal Position APP Sensor
    GM1560065Courtesy of GENERAL MOTORS CORP.
  3. Remove the accelerator pedal/APP sensor nuts.
  4. Remove the accelerator pedal/APP sensor from the vehicle.
