Installation Procedure

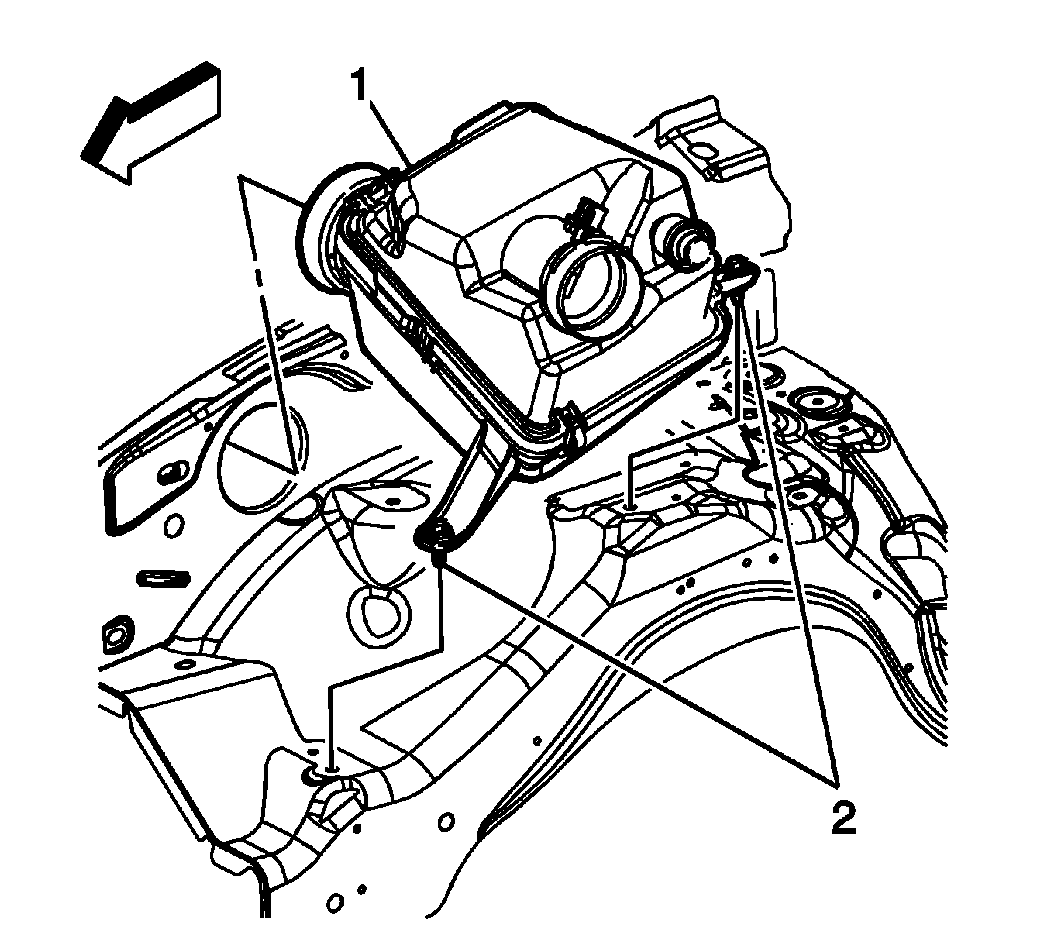

    Fig 1: Integral Air Cleaner Housing Bolts
    GM1899698Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner housing (1) to the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Tighten the integral air cleaner housing bolts (2) to 15 N.m (11 lb ft).

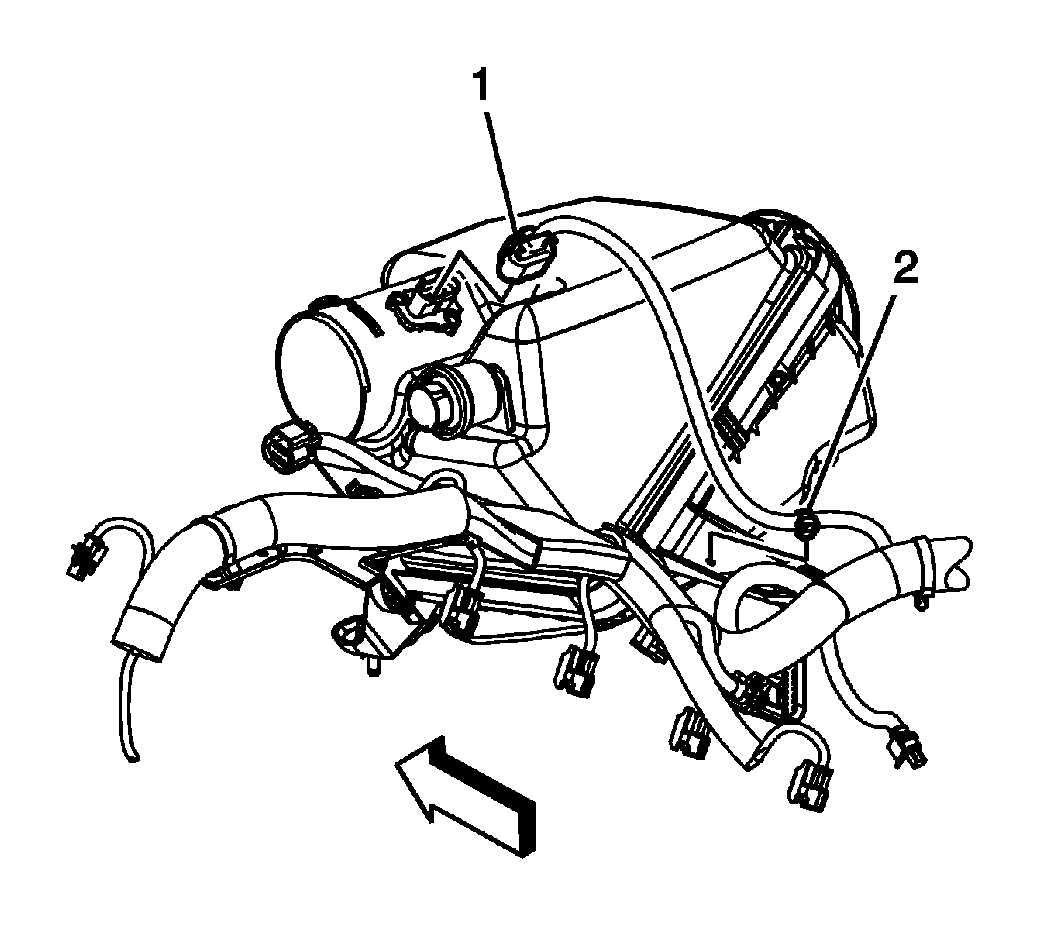

    3. Fig 2: Engine Wiring Harness Electrical Connector
    GM1897141Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
  4. Install the air cleaner outlet duct to the air cleaner. Refer to Air Cleaner Resonator Outlet Duct Replacement .
