Installation Procedure

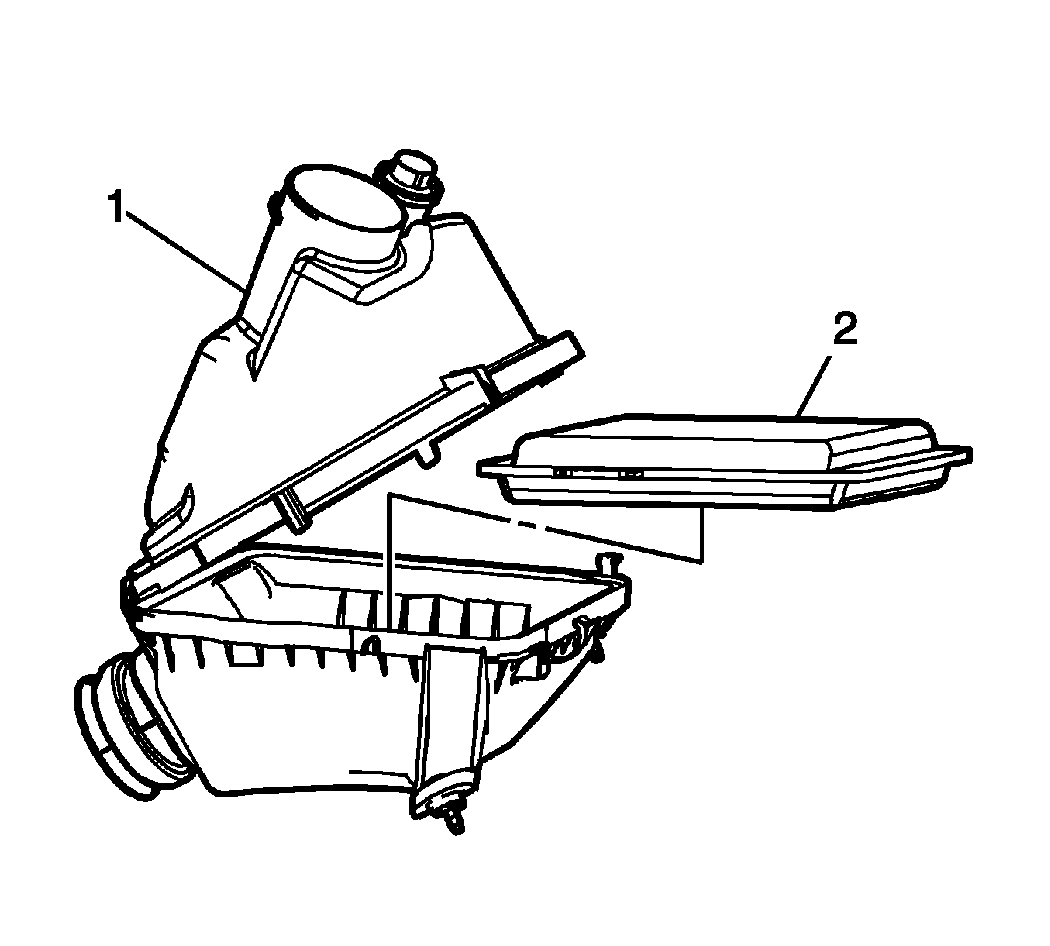

    Fig 1: Air Cleaner Upper Housing
    GM1899673Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter element (2) to the lower air cleaner housing.
  2. Close the air cleaner upper housing (1).

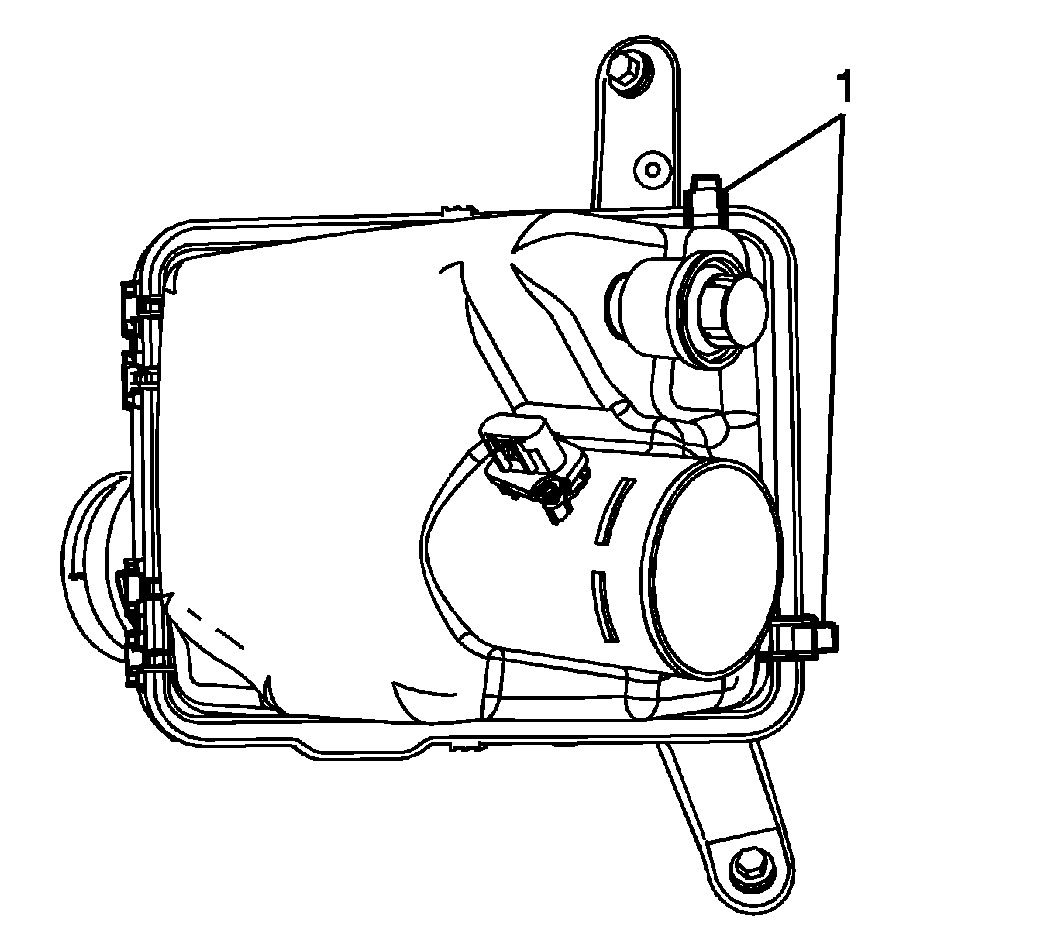

    3. Fig 2: Air Cleaner Upper Housing Retainer Clips
    GM1899669Courtesy of GENERAL MOTORS CORP.
  3. Latch the air cleaner upper housing retainer clips (1).
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
