Installation Procedure

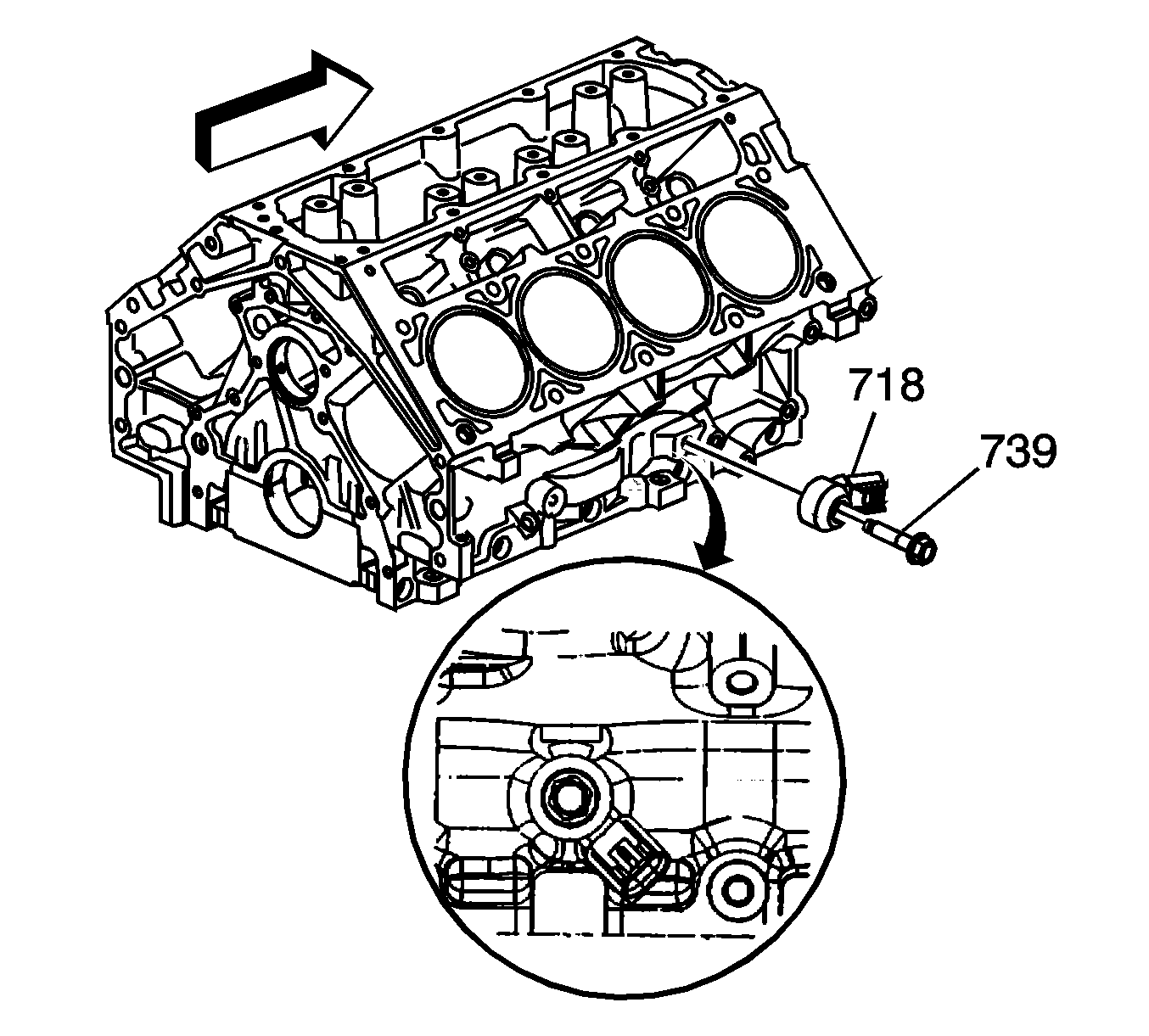

    Fig 1: Right Side Knock Sensor & Bolt
    GM1402140Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the knock sensor (718) to the engine block and install the bolt (739).

    Tighten:  Tighten the bolt to 20 N.m (15 lb ft).

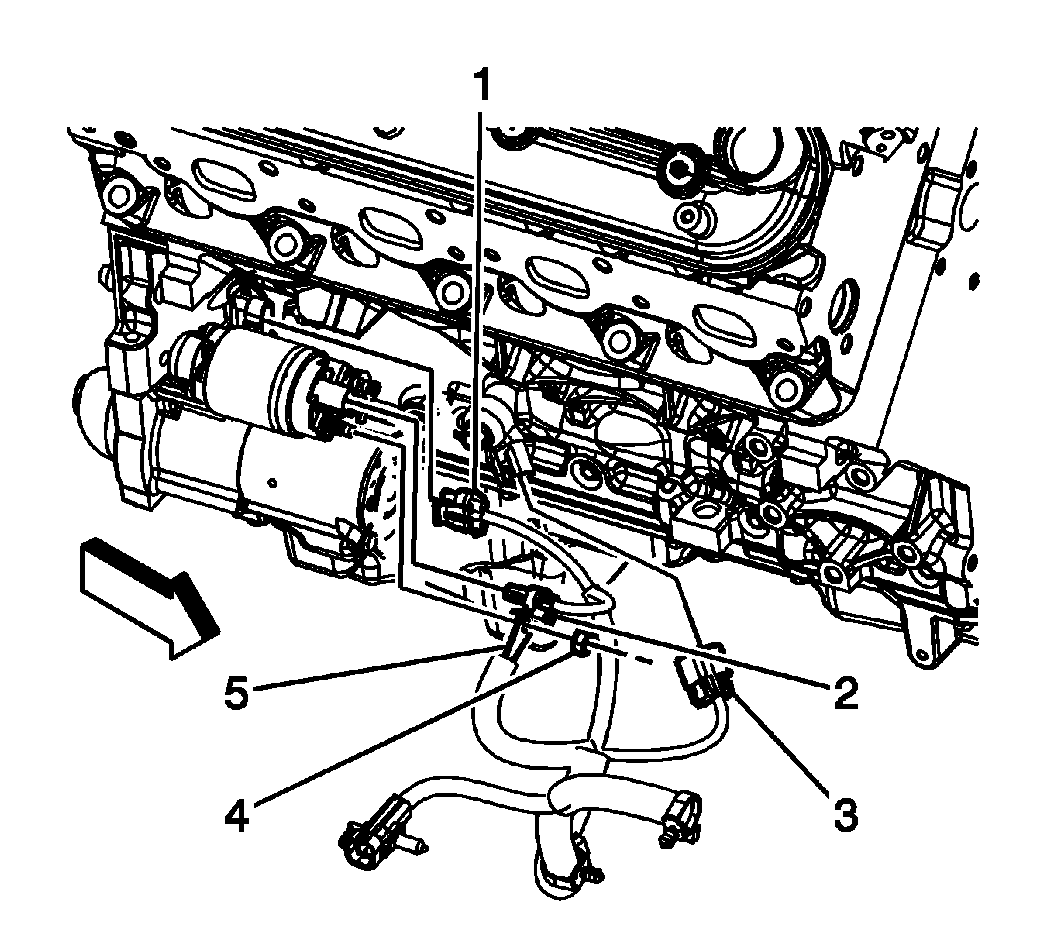

    2. Fig 2: Engine Wiring Harness Electrical Connector At Knock Sensor
    GM1899202Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (3) to the knock sensor.
  3. Lower the vehicle.
