Removal Procedure

NOTE: Use care when handling the mass air flow (MAF)/intake air temperature (IAT) sensor. Do not dent, puncture, or otherwise damage the honeycell located at the air inlet end of the MAF/IAT. Do not touch the sensing elements or allow anything including cleaning solvents and lubricants to come in contact with them. Use a small amount of a non-silicone based lubricant, on the air duct only, to aid in installation.
    Fig 1: Engine Wiring Harness Electrical Connector
    GM1897141Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness electrical connector (1) from the MAF/IAT sensor.

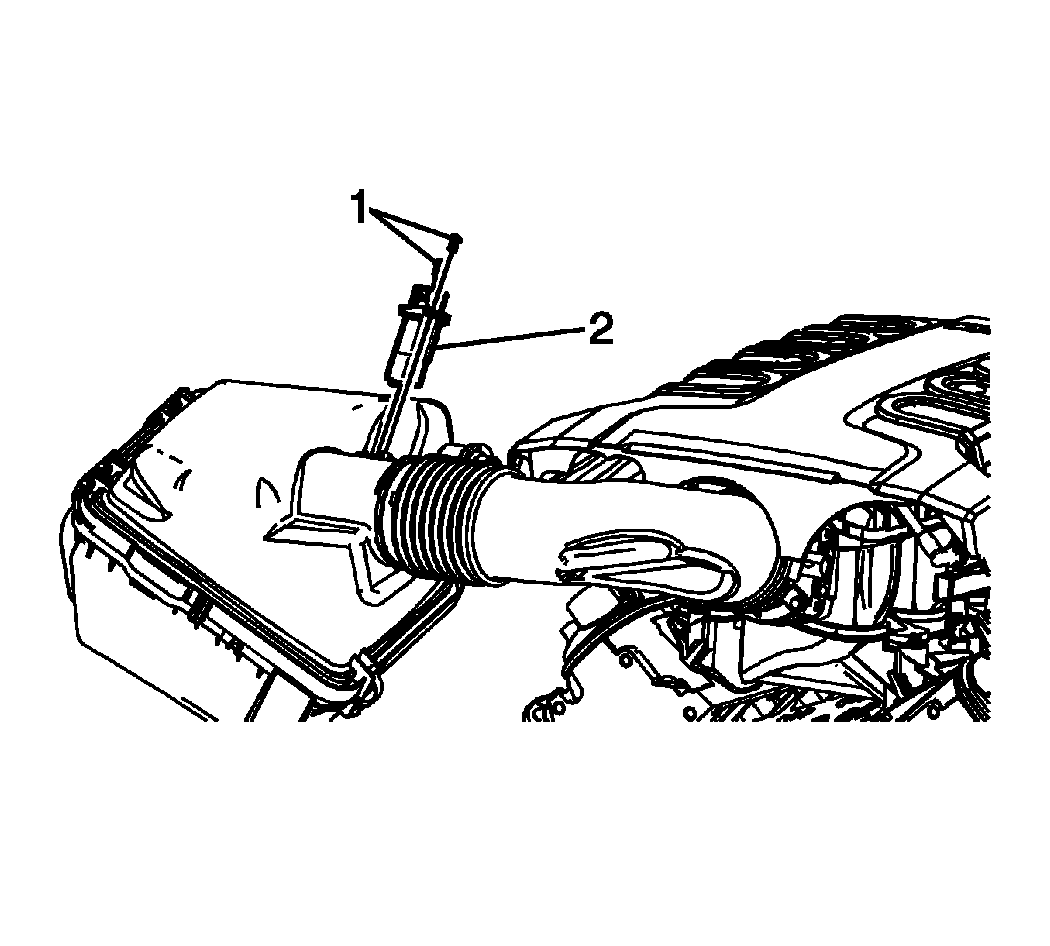

    2. Fig 2: MAF/IAT Sensor Screws
    GM1897143Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAF/IAT sensor screws (1).
  3. Remove the MAF/IAT sensor (2) from the air cleaner upper housing.
