Information Center Telltale Assembly (UD7)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

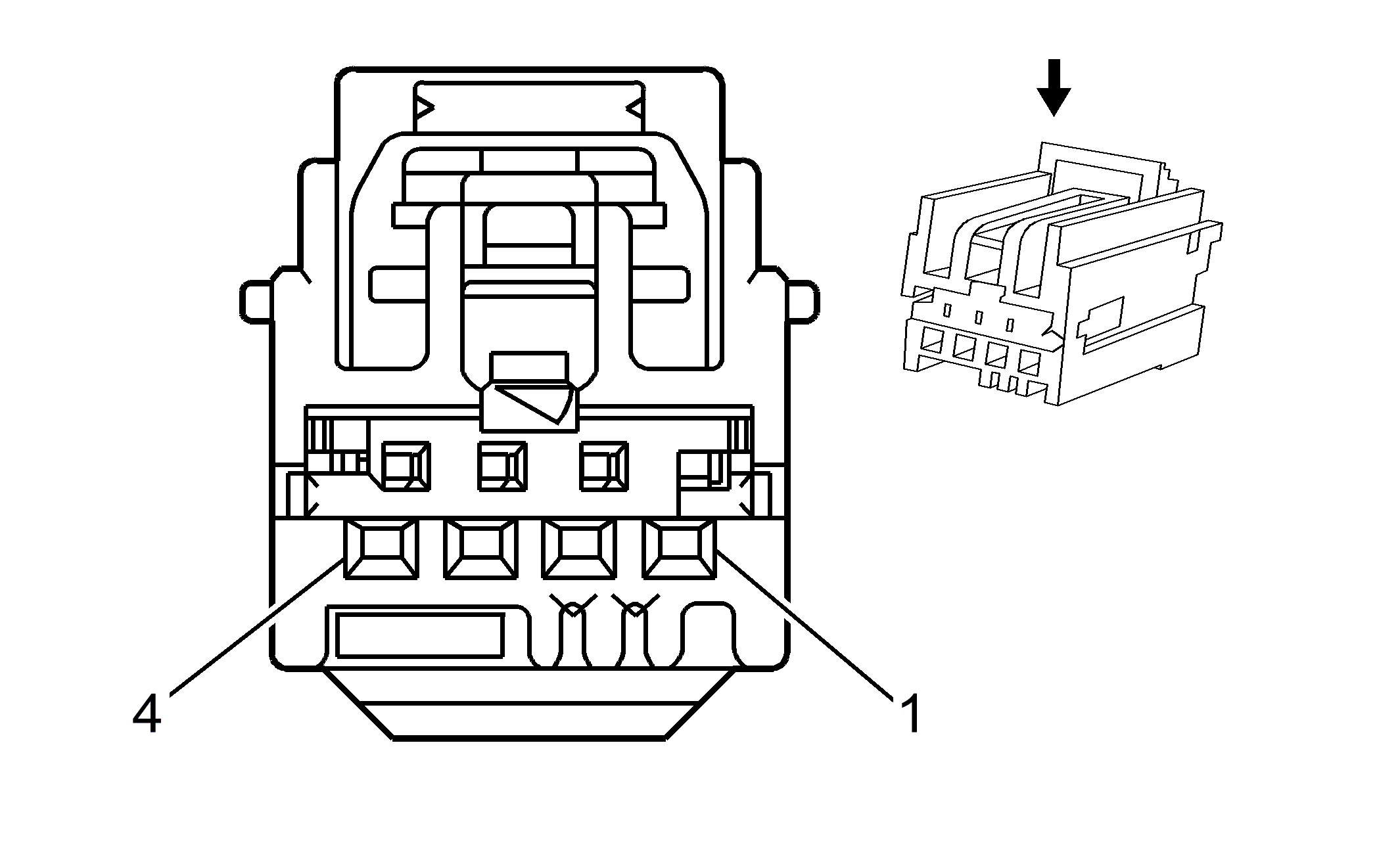

Fig 1: Information Center Telltale Assembly (UD7) Connector End View
GM1710990Courtesy of GENERAL MOTORS CORP.
Information Center Telltale Assembly (UD7) Connector Parts Information

Connector Part Information
  • OEM: 15491295
  • Service: 19149305
  • Description: 4-Way F Receptacle 0.64 Series (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
Information Center Telltale Assembly (UD7) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 WH 2370 Telltale Assembly Supply Voltage
2 OG 2371 Left Amber Indicator Control
3 D-BU 2372 Center Amber Indicator Control
4 GY 2373 Red Indicator Control
