Rear View Camera Replacement (Endgate)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Rear View Camera Replacement (Endgate)

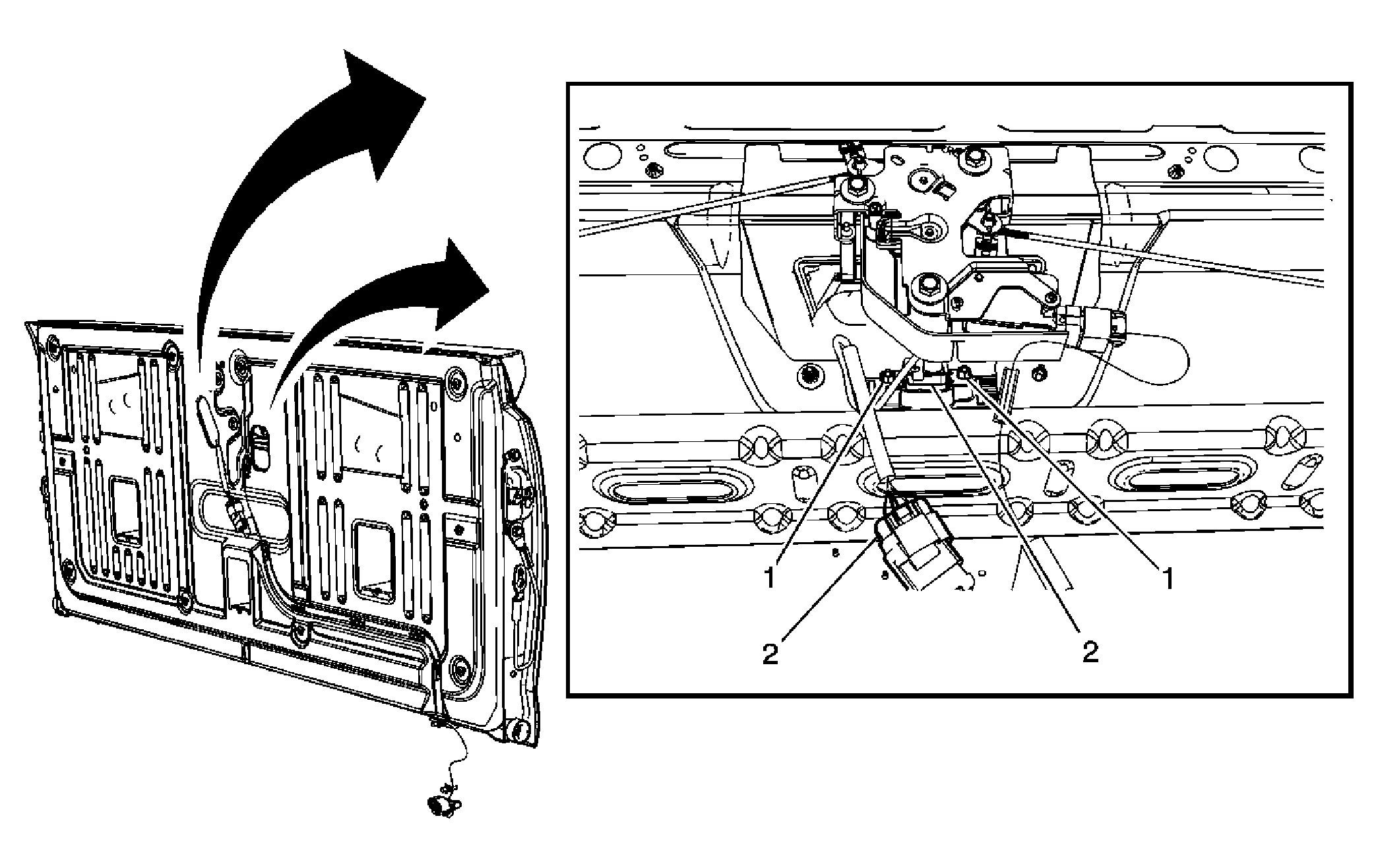

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the endgate trim panel. Refer to Trim Panel Replacement - Endgate . |
|
| 1 | Rear Object Camera Nuts
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Rear Object Camera Tip: Disconnect the electrical connector. |
