Rear View Camera Replacement (Liftgate)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

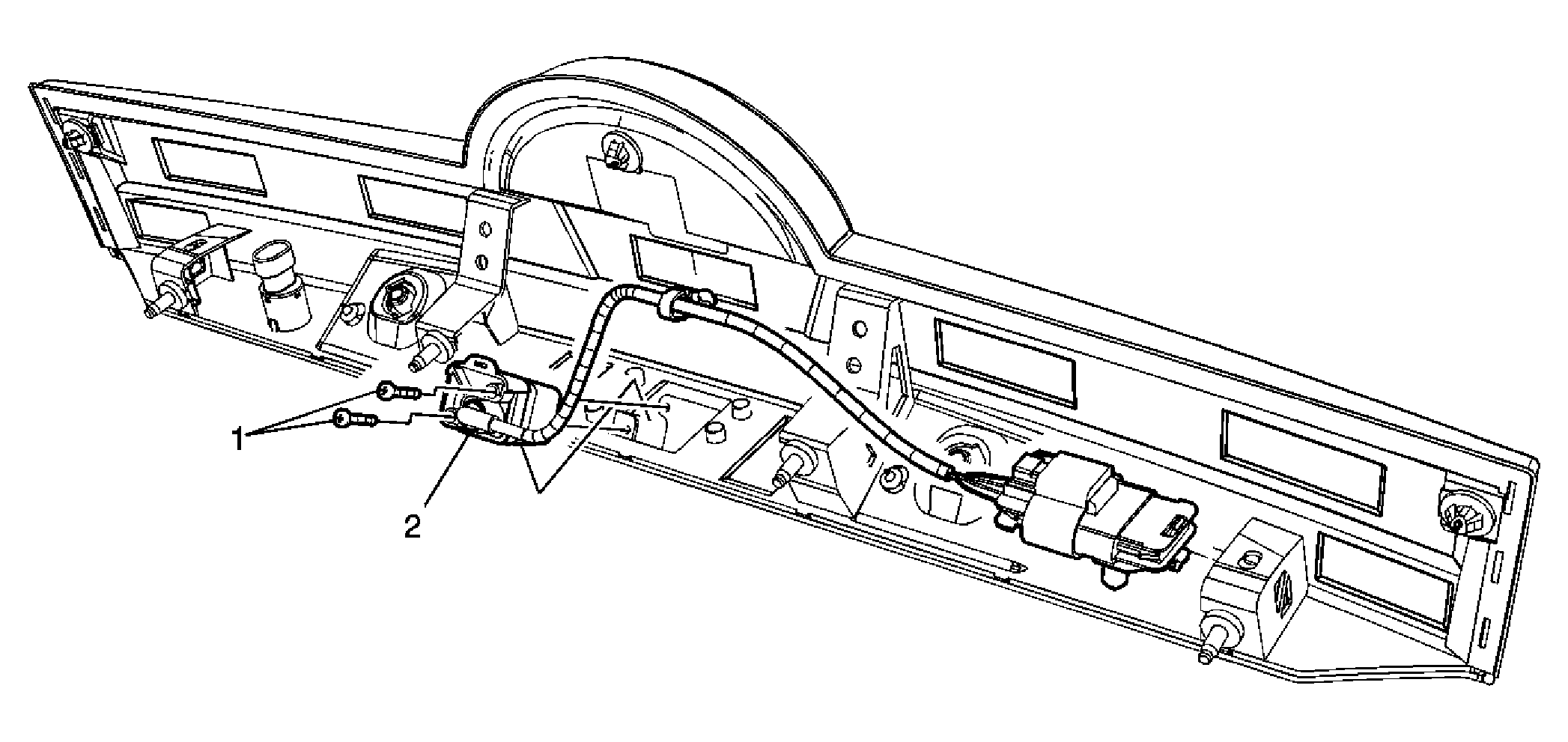

Fig 1: View Of Rear Object Camera & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear liftgate applique. Refer to Liftgate Center Applique Replacement (Escalade) or Liftgate Center Applique Replacement (Tahoe, Yukon) .
1	Rear Object Camera Screws Tighten: 2 N.m (18 lb in)
2	Rear Object Camera Tip: Disconnect the electrical connector.
