Steering Wheel Inflatable Restraint Module Replacement

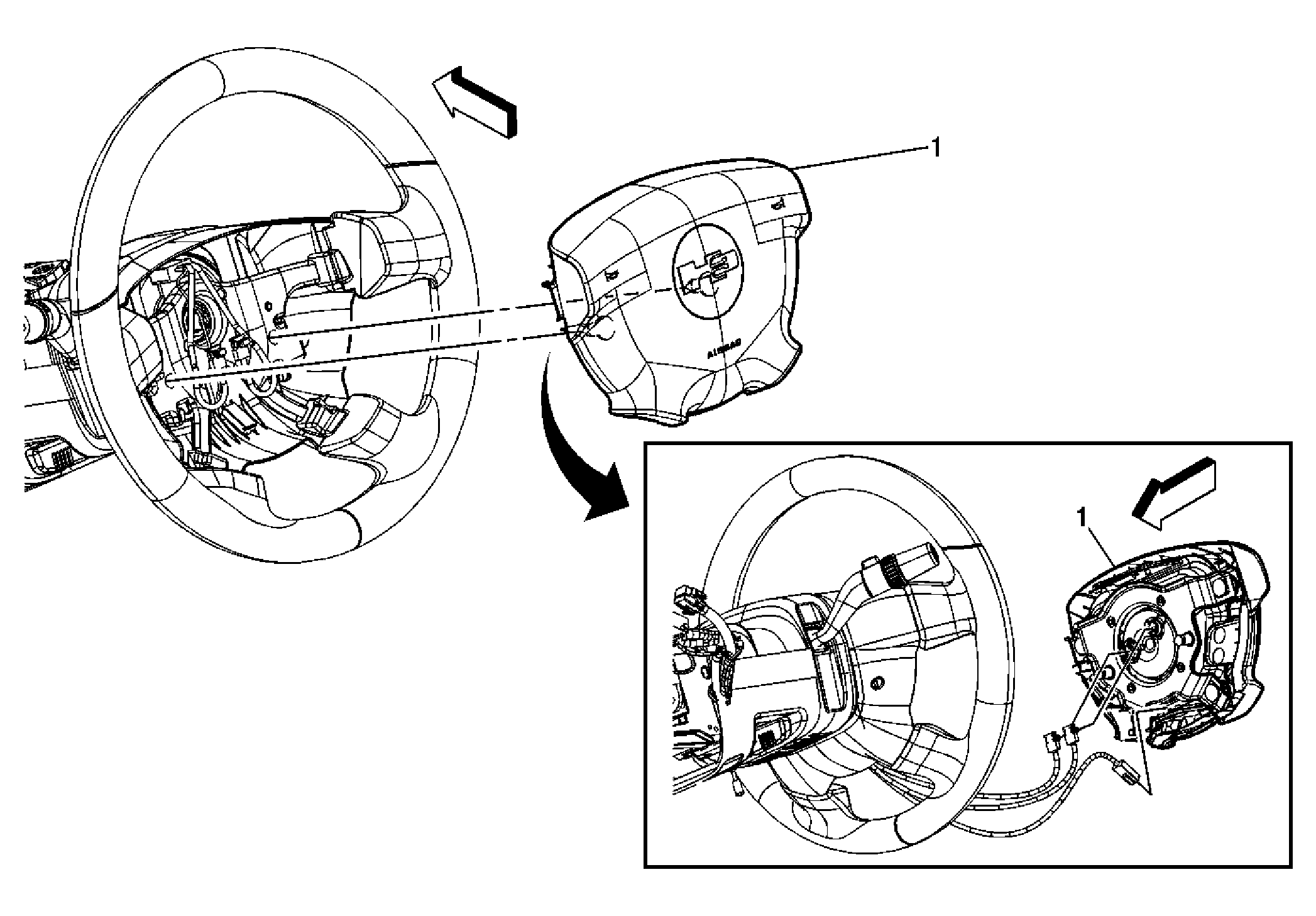

Fig 1: Identifying Inflatable Restraint Steering Wheel Module

GM1744423

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

WARNING: Refer to SIR Inflator Module Handling and Storage Warning .

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
On the back side of the steering wheel shroud are 2 openings. Place the wheel so that one opening is on top.
Using a blunt-ended tool, push the spring fastener inward through the access hole. Repeat the step for the other opening.

1

Steering Wheel Inflatable Restraint Module
Tip:

Release the connector position assurance (CPA) retainer.
Disconnect the electrical connectors.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
