Front View Camera Image Display Module Replacement (H3T)

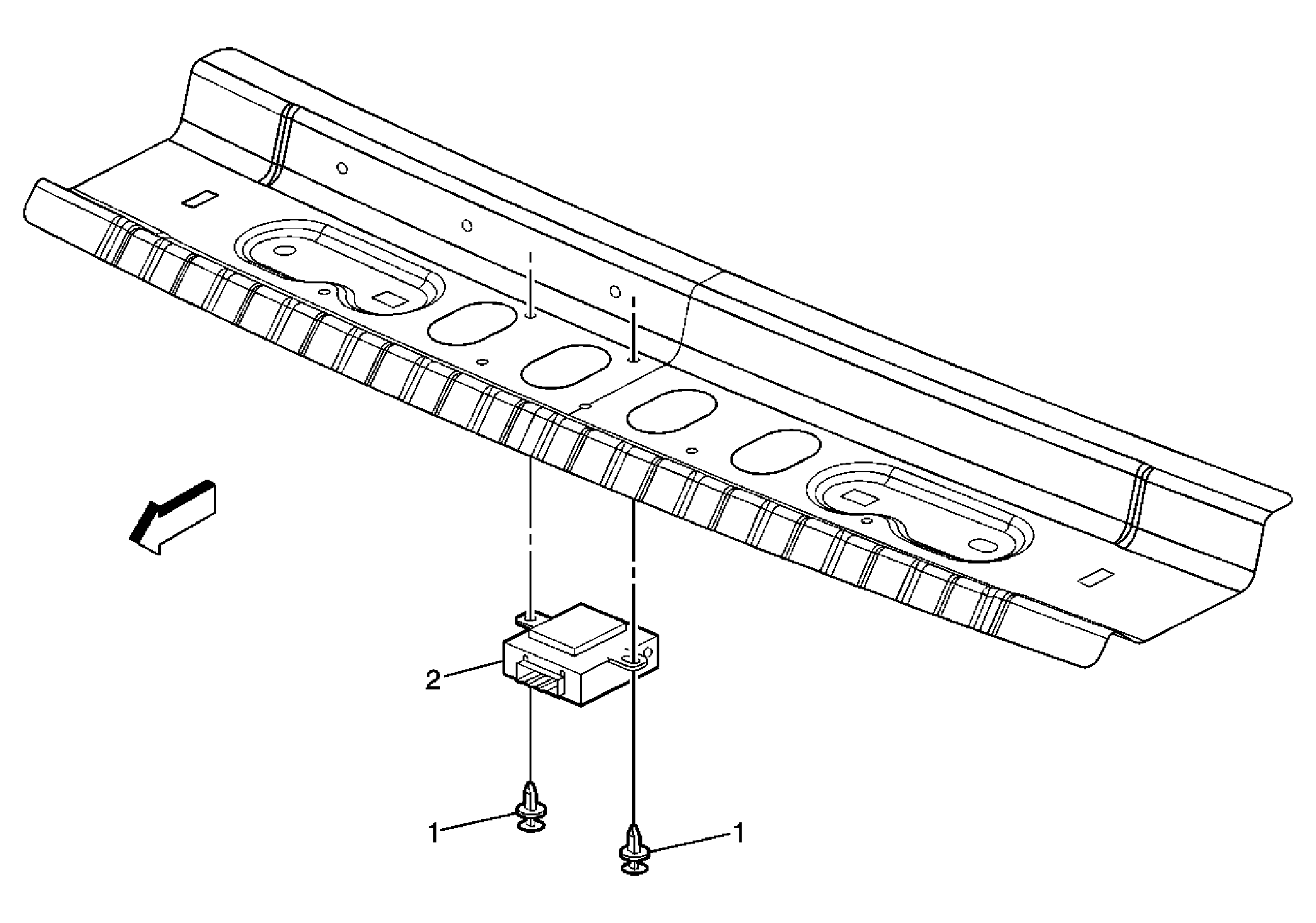

Fig 1: Front View Camera Image Display Module Replacement (H3T)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the windshield frame header front panel. Refer to Windshield Frame Header Front Panel Replacement (H3T) .
1	Rearview Camera Image Display Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Rearview Camera Image Display Module Assembly Procedure Disconnect the electrical connector. Reprogram the module if replacing the unit. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures:
Remove the windshield frame header front panel. Refer to Windshield Frame Header Front Panel Replacement (H3T) .

Rearview Camera Image Display Module Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Rearview Camera Image Display Module Assembly

Procedure

Disconnect the electrical connector.
Reprogram the module if replacing the unit. Refer to Control Module References .
