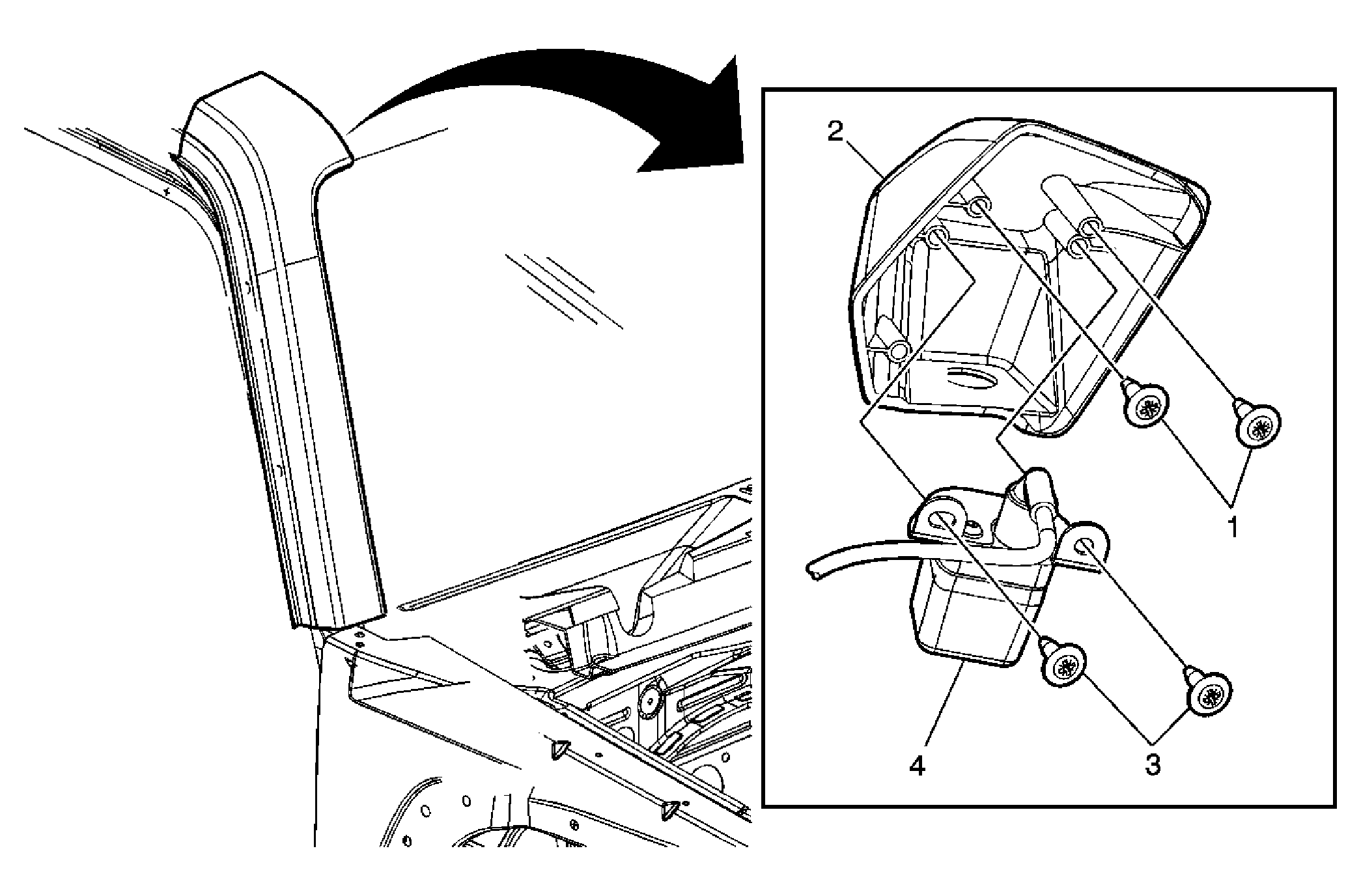

Front View Camera Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the windshield side reveal molding. Refer to Windshield Side Reveal Molding Replacement (H3 with UVF) or Windshield Side Reveal Molding Replacement (H3T) or Windshield Side Reveal Molding Replacement (Without UVF) . |
|
| 1 | Front View Camera Housing Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Front View Camera Housing |
| 3 | Front View Camera Screw (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 4 | Front View Camera Procedure: Disconnect the electrical connectors. |
