Remote Function Schematics

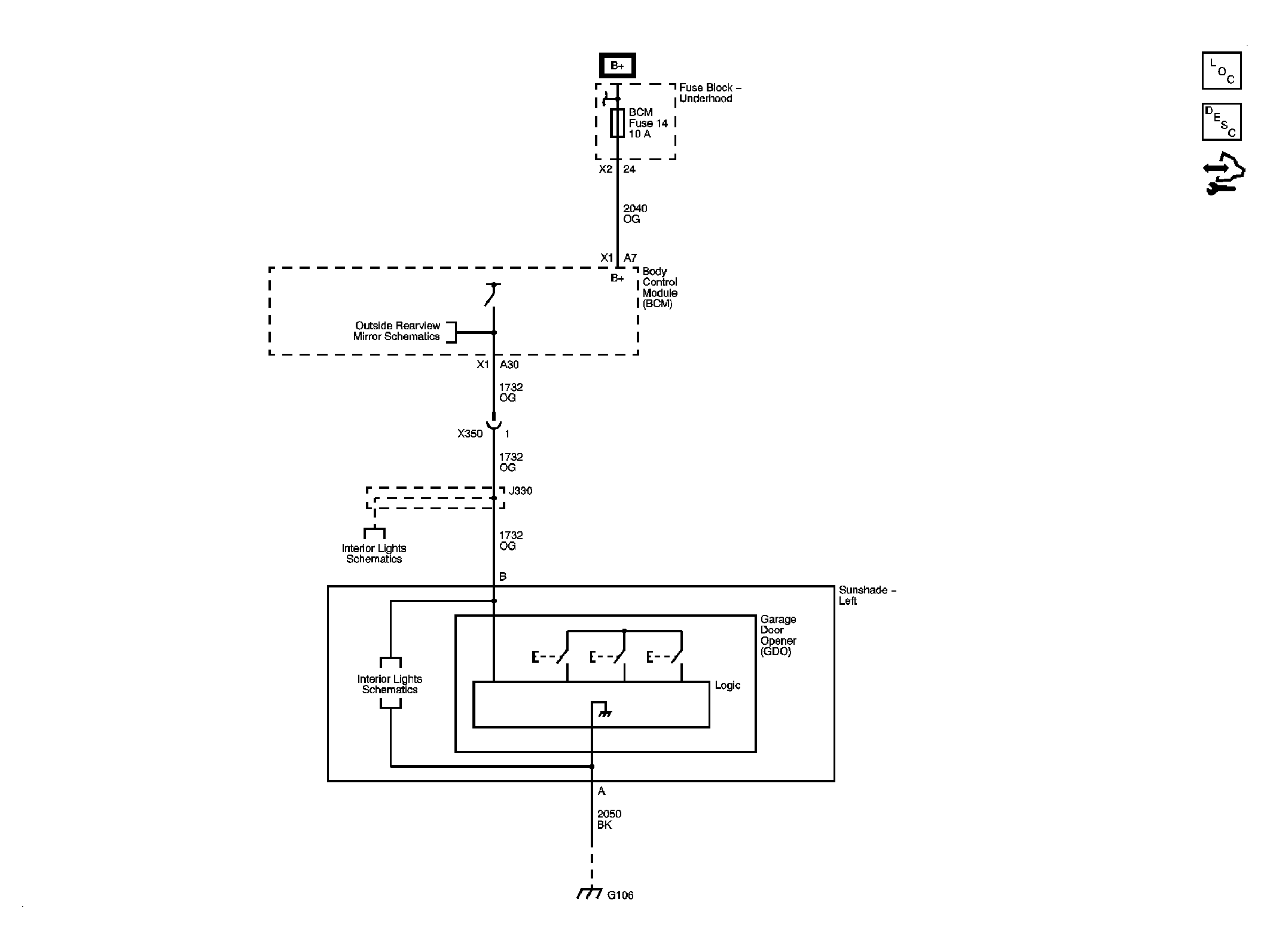

Fig 1: Garage Door Opener Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
