Theft Deterrent Module Replacement

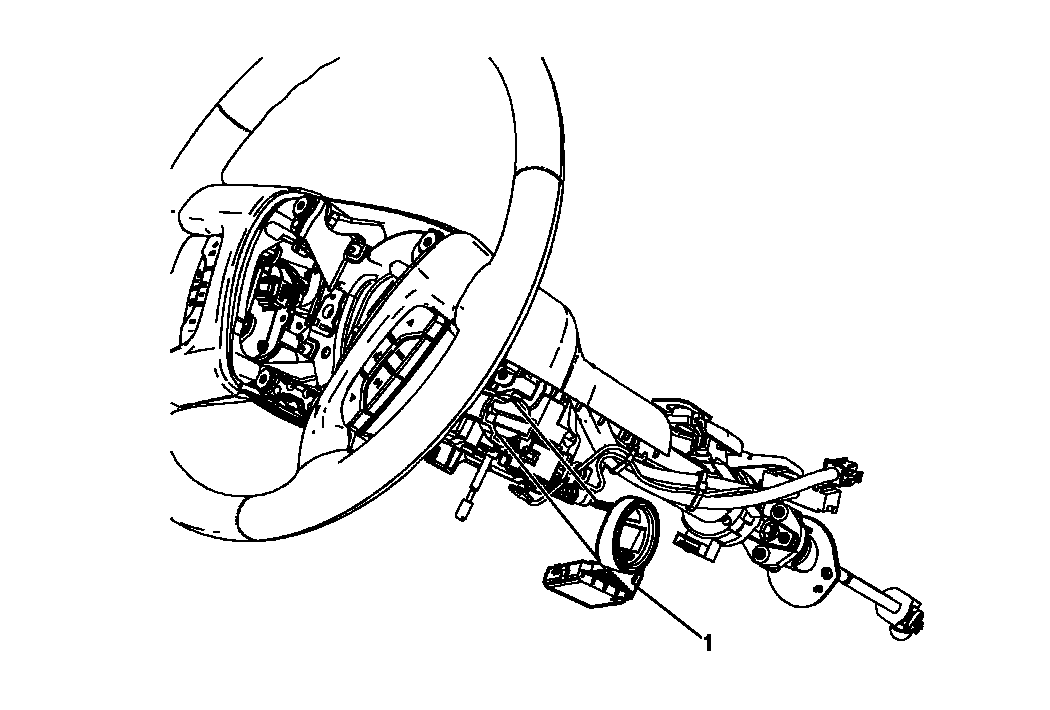

Fig 1: Theft Deterrent Module Replacement
GM2274157Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove the steering column shroud. Refer to Steering Column Shroud Replacement
  2. Remove the steering wheel inflatable restraint module. Refer to Steering Wheel Inflatable Restraint Module Replacement
  3. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement
1 Theft Deterrent Module

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and set up procedures.
