Rear Wheel Speed Sensor Replacement

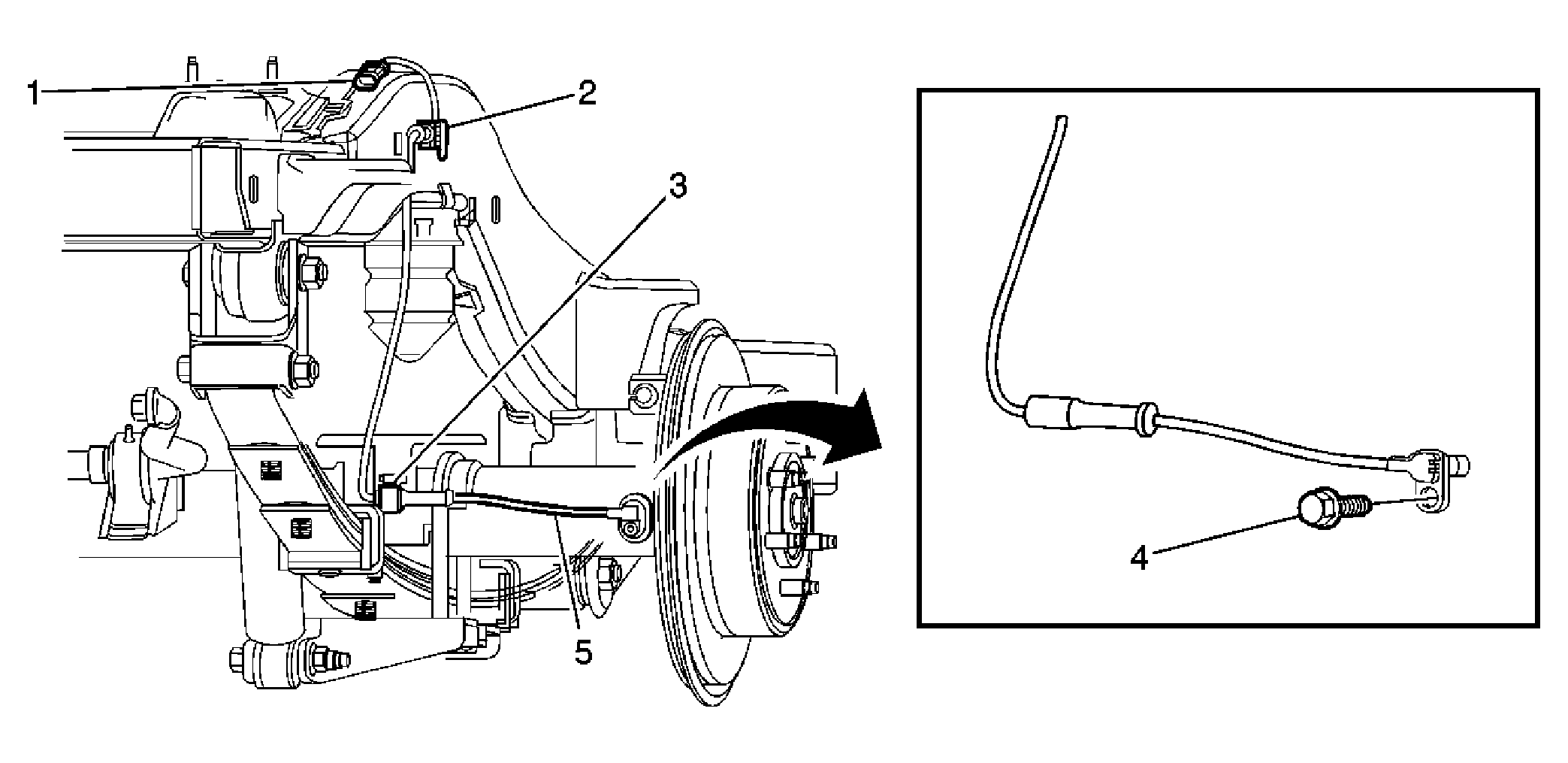

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | ABS Electrical Connector |
| 2 | ABS Wiring Harness Frame Retaining Clip |
| 3 | ABS Wiring Harness Axle Housing Retaining Clip |
| 4 | Wheel Speed Sensor Mounting Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 18 N.m (13 lb ft) |
| 5 | Wheel Speed Sensor |
