Installation Procedure

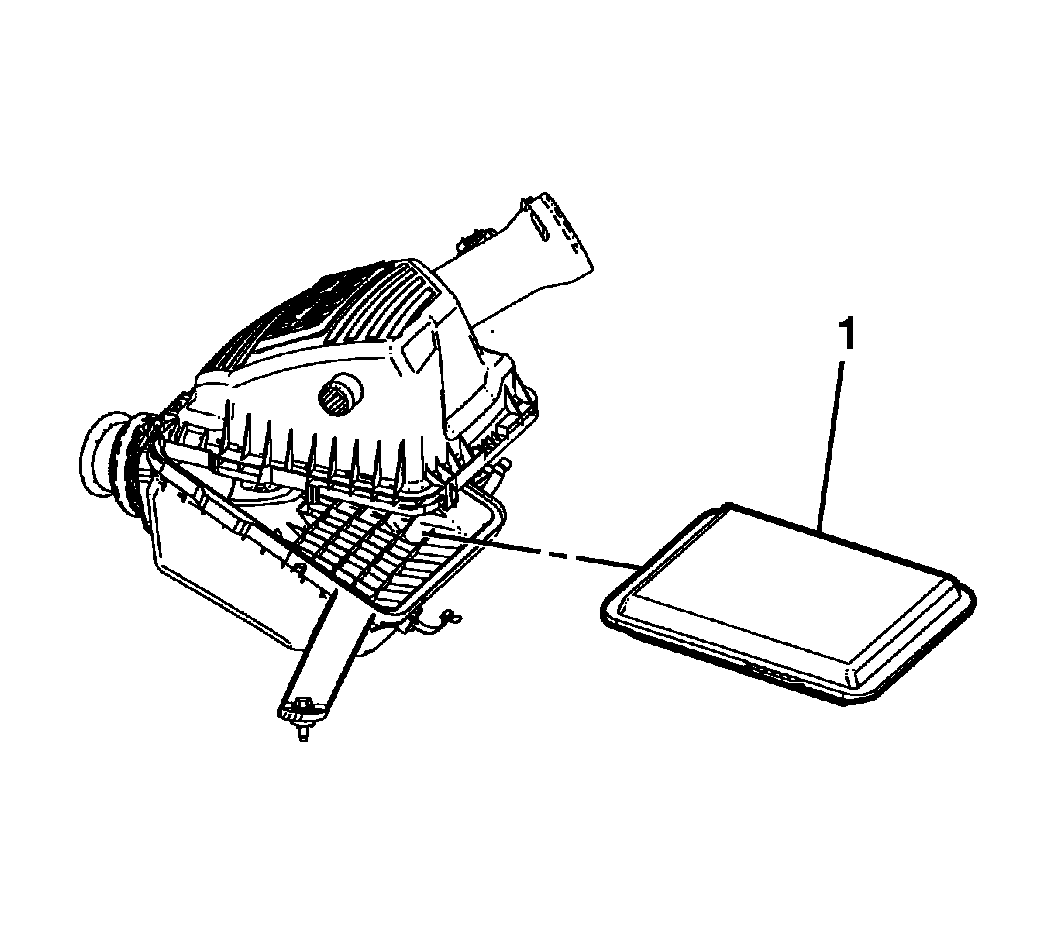

    Fig 1: Air Filter Element
    GM1969154Courtesy of GENERAL MOTORS CORP.
  1. Install the air filter element (1), and close the air cleaner housing cover.

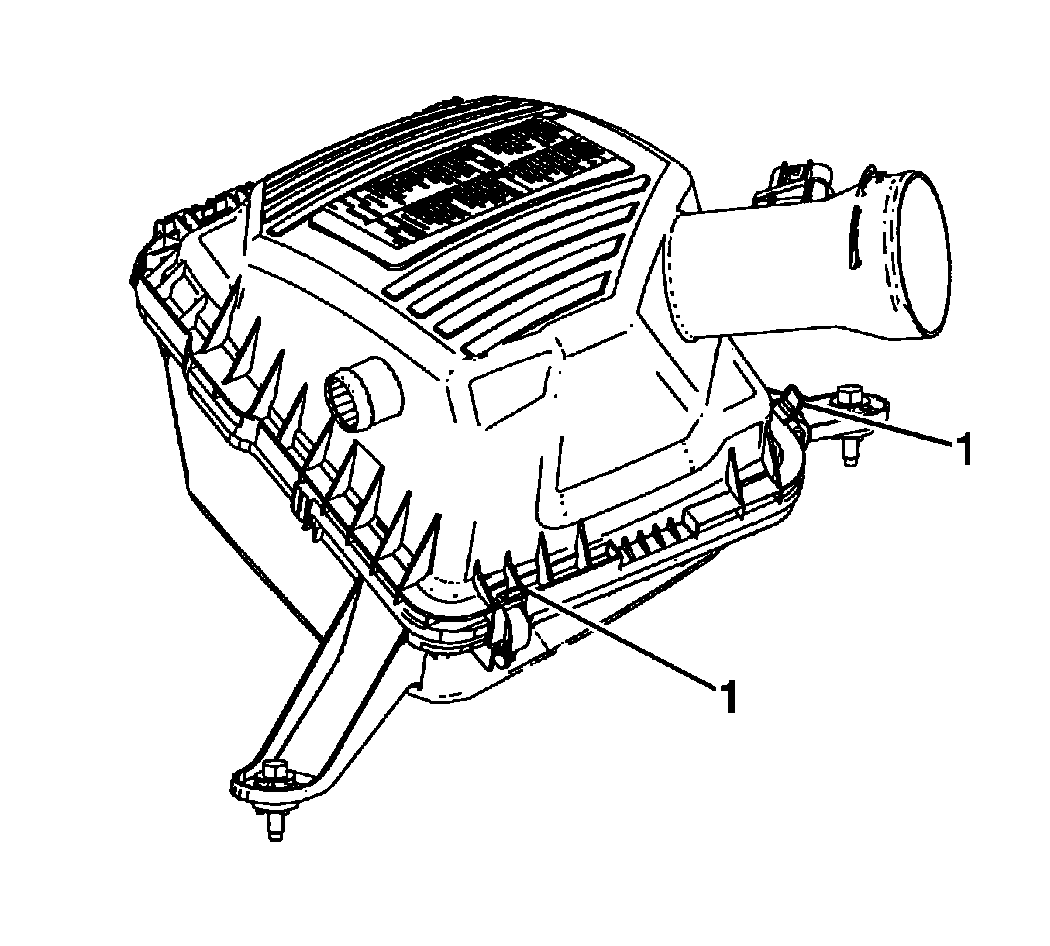

    2. Fig 2: Air Cleaner Housing Retainers
    GM1969151Courtesy of GENERAL MOTORS CORP.
  2. Engage the 2 air cleaner housing retainers (1) securing the cover.
    3. Fig 3: Secondary Air Injection (AIR) Pump Inlet Hose
    GM1969060Courtesy of GENERAL MOTORS CORP.
  3. Connect the AIR pump inlet hose (1) quick connect fitting to the air cleaner assembly. Refer to Plastic Collar Quick Connect Fitting Service .
    4. Fig 4: Engine Wiring Harness Electrical Connector And Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor
    GM1969052Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor (2).
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
