Installation Procedure

  1. Install a new O-ring seal to the exhaust CMP sensor.
  2. Lightly lubricate the O-ring seal with clean engine oil.

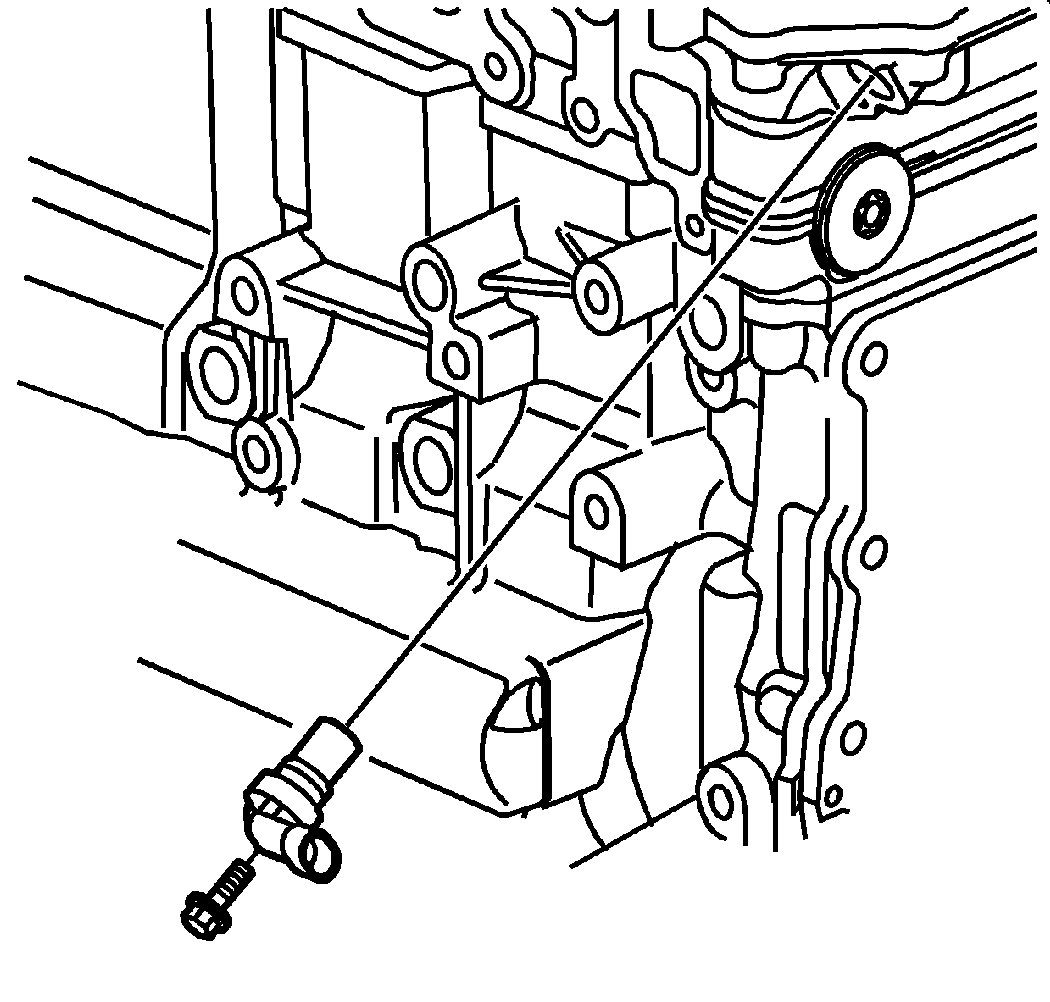

    3. Fig 1: View Of Exhaust Camshaft Sensor
    GM858172Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust CMP sensor into the cylinder head.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the exhaust CMP sensor bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

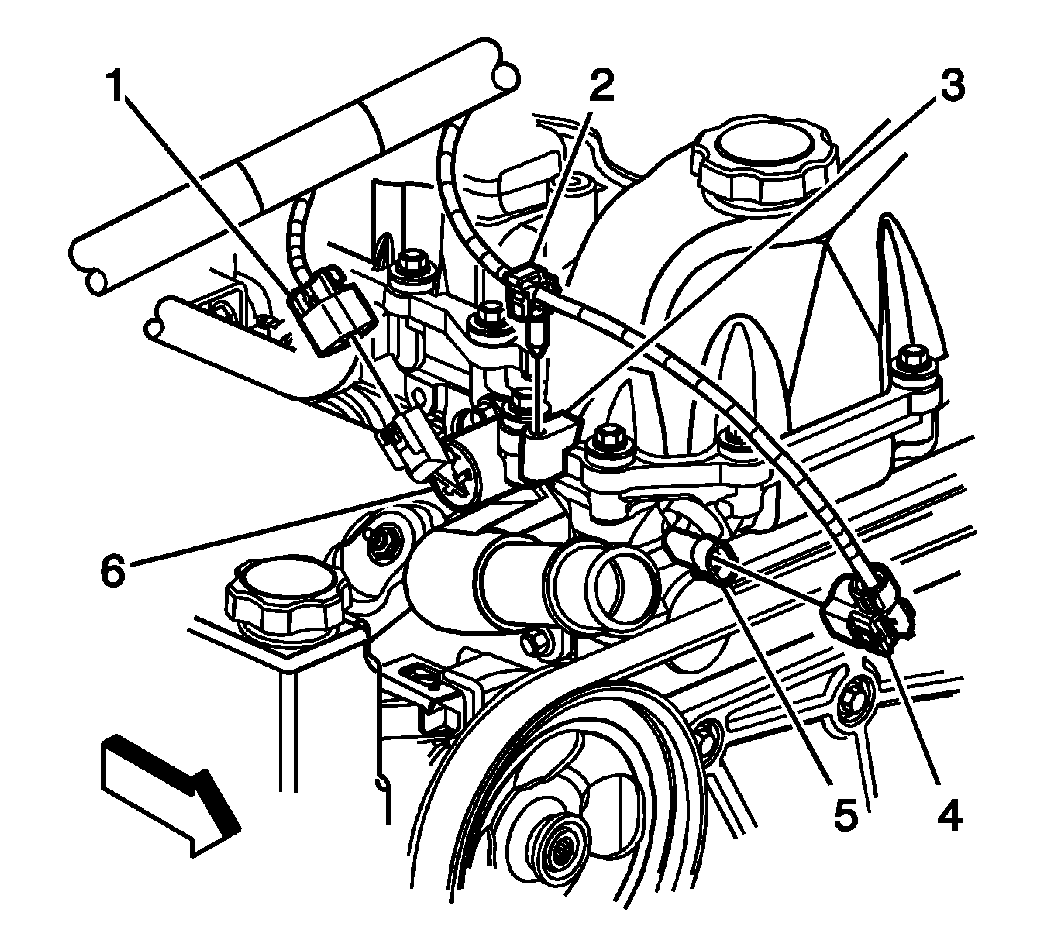

    5. Fig 2: View Of CMP Sensor Connector, Exhaust Camshaft Actuator Connector & Engine Wiring Harness Retainer
    GM1350714Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector (4) to the exhaust CMP sensor (5).
