Installation Procedure

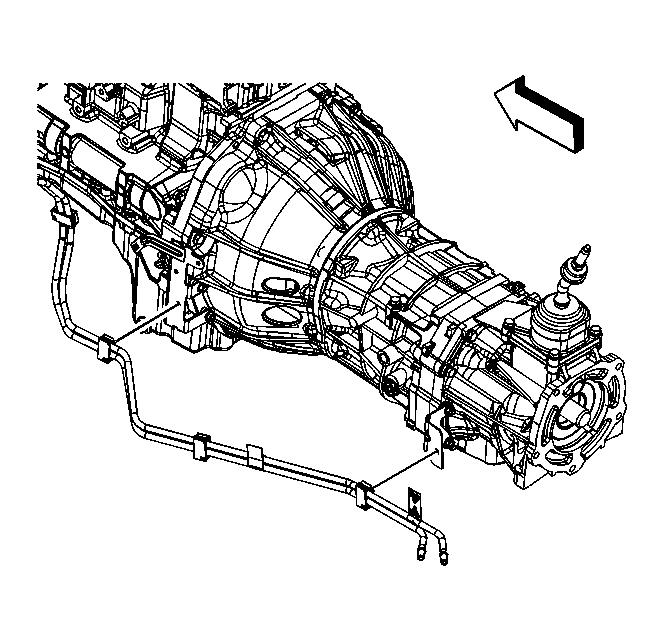

Fig 1: Locating EVAP Lines & Clips At Manual Transmission

Courtesy of GENERAL MOTORS CORP.

Install the fuel feed line to the clips.
If equipped with a manual transmission, close the retaining clips attaching the lines to the transmission.

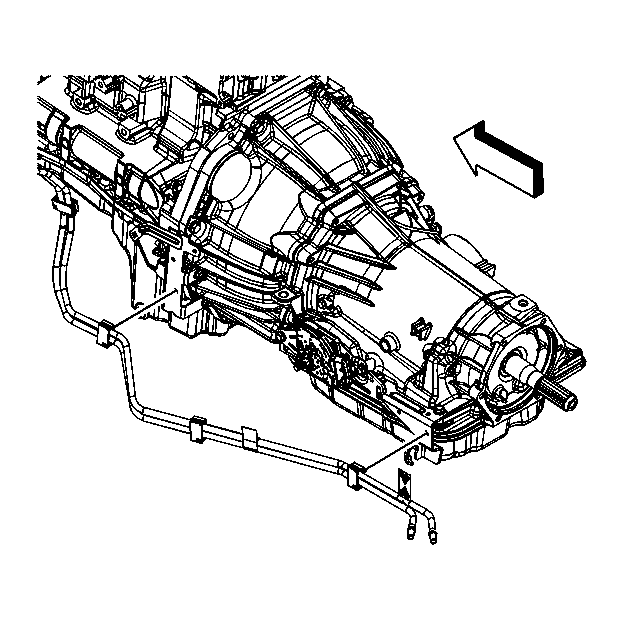

Fig 2: Locating EVAP Lines & Clips At Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

Install the fuel feed line to the clips.
If equipped with an automatic transmission, close the retaining clips attaching the lines to the transmission.

Fig 3: Identifying Fuel Feed Lines, Connections & Clips

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel feed line from the fuel tank. Refer to Plastic Collar Quick Connect Fitting Service .
Lower the vehicle.
Install fuel feed line to the clips.
Close the retaining clips (3, 4).
Connect the fuel feed line quick connect (2). Refer to Metal Collar Quick Connect Fitting Service .
Engage the quick connect fitting lock clip (1).
