Fuel Pump Flow Control Module Replacement

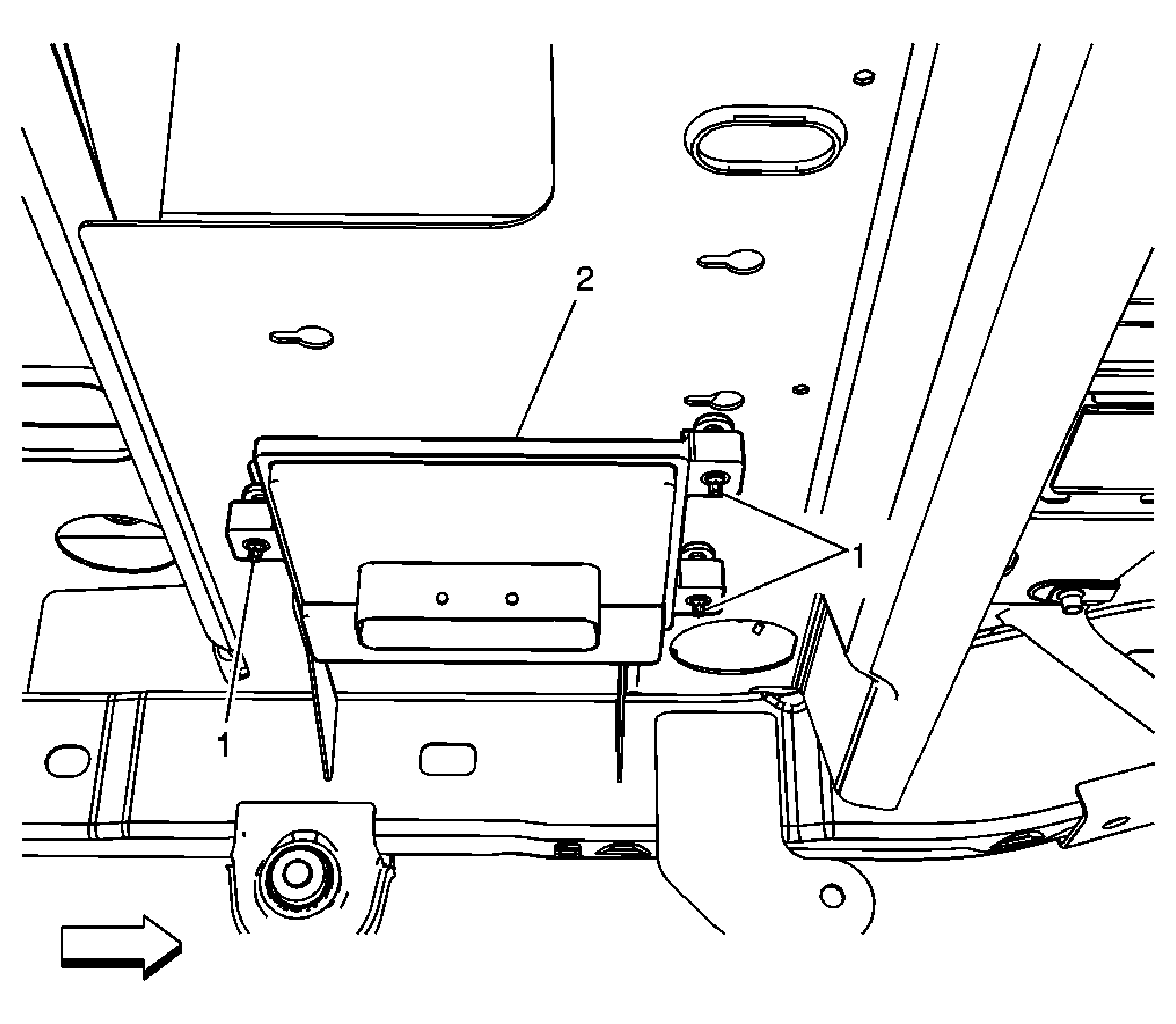

Fig 1: Fuel Pump Flow Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Pump Flow Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution Tip: The bolts used are two headed and can be loosened from the module side, then maneuvered out of the slots. Tighten: 9 N.m (80 lb in)
2	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. If replacing the fuel pump flow control module, program the control module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the spare tire. Refer to Spare Tire Carrier Replacement .

Fuel Pump Flow Control Module Fastener (Qty: 3)

CAUTION: Refer to Fastener Caution

Tip: The bolts used are two headed and can be loosened from the module side, then maneuvered out of the slots.

Tighten: 9 N.m (80 lb in)

Fuel Pump Flow Control Module

Procedure

Disconnect the electrical connector.
If replacing the fuel pump flow control module, program the control module. Refer to Control Module References .
