2-4 Band Servo Piston Pin Selection

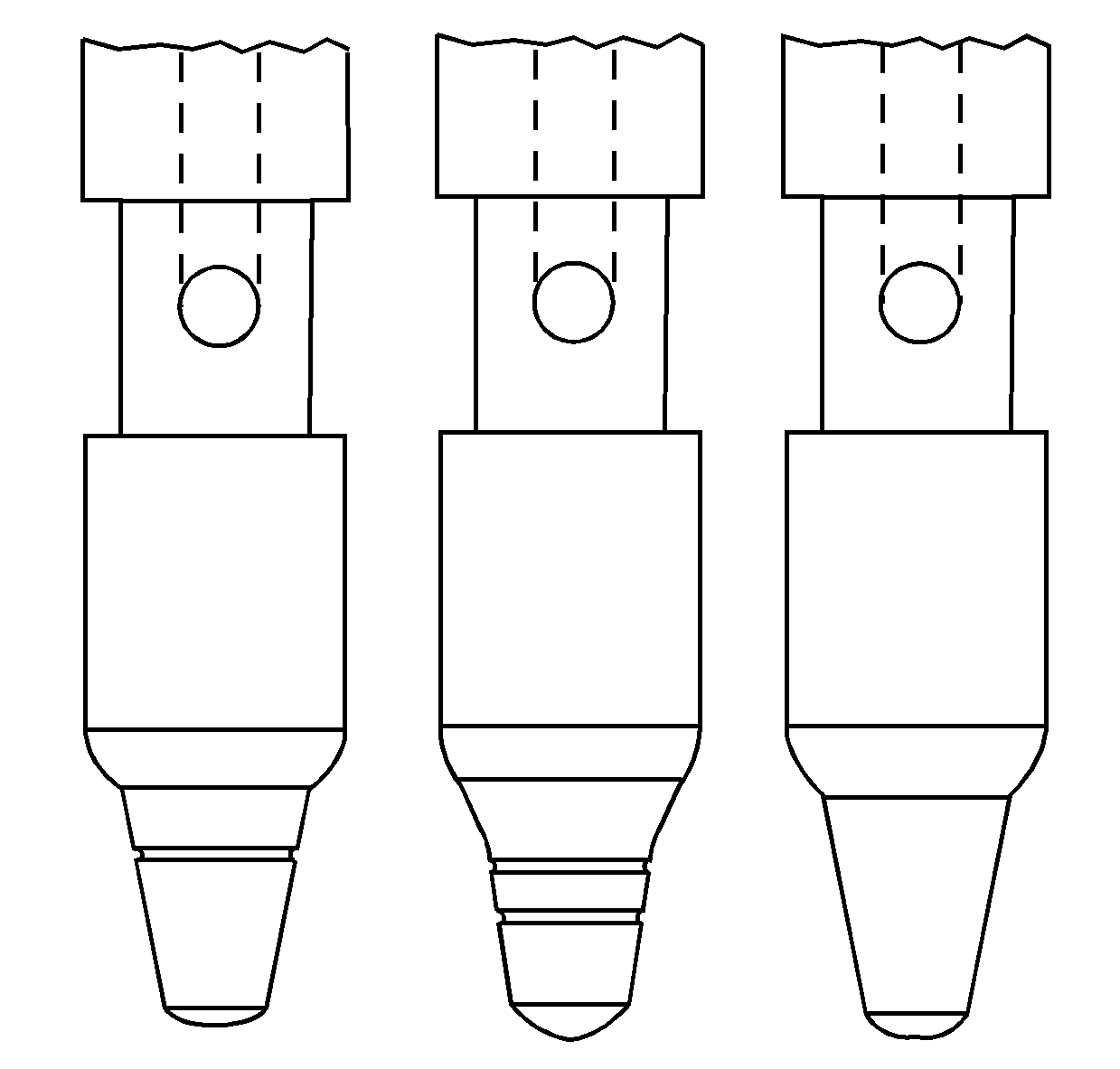

Fig 1: 2-4 Servo Pin Selection
GM13129Courtesy of GENERAL MOTORS CORP.
2-4 Servo Pin Selection

Pin Length Pin Identification
mm inch
65.82-66.12 2.59-2.60 1 Groove
67.23-67.53 2.65-2.66 2 Grooves
68.64-68.94 2.70-2.71 No Groove
