Transfer Case Adapter Replacement

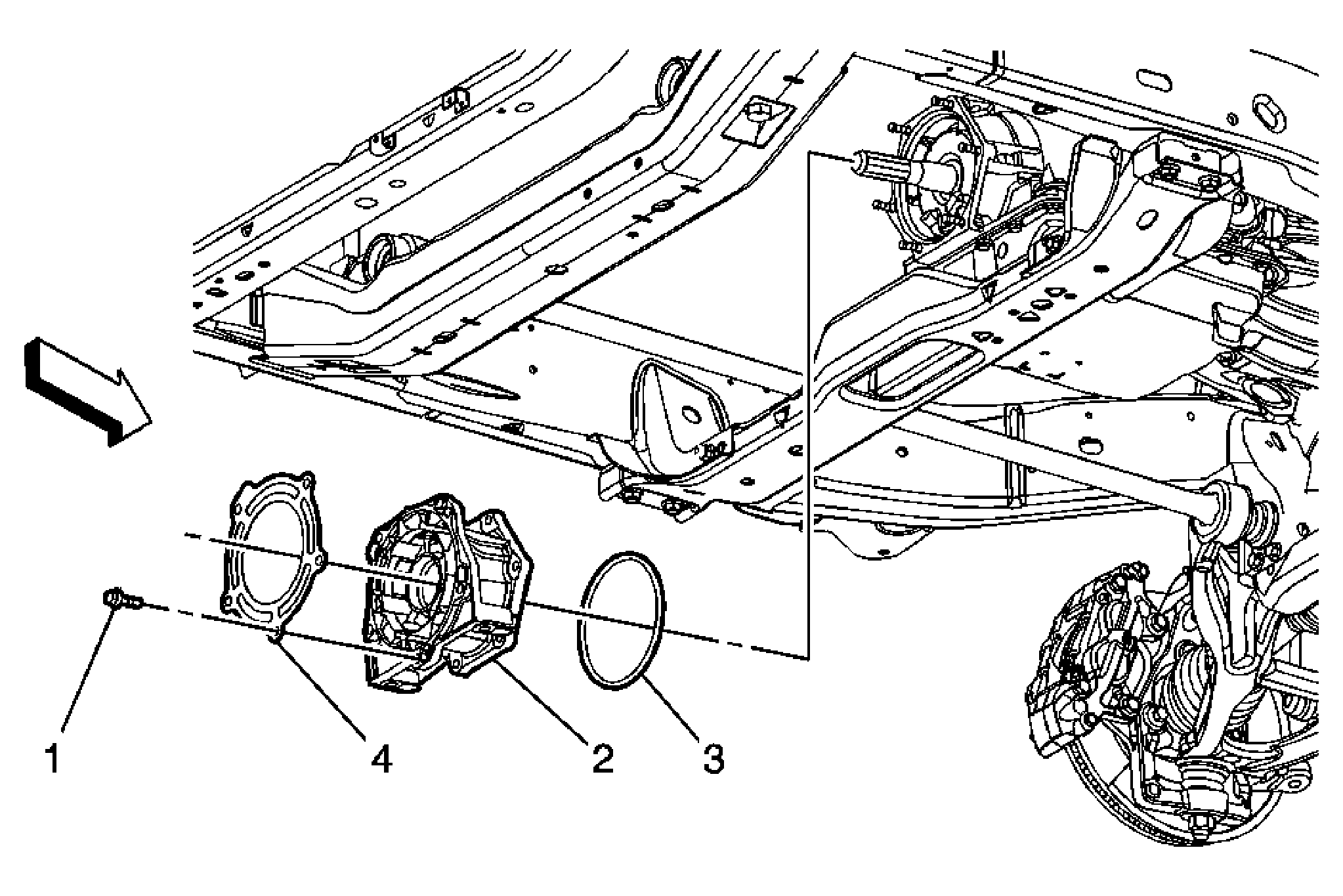

Fig 1: Transfer Case Adapter Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the transfer case. Refer to Transfer Case Assembly Replacement .
1	Bolt, Transfer Case Adapter (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 50 N.m (37 lb ft)
2	Adapter, Transfer Case to Transmission
3	O-ring, Transfer Case Adapter Tip: DO NOT reuse the O-ring. Replace it.
4	Gasket, Transfer Case Adapter Tip: DO NOT reuse the gasket. Replace it.
