Transfer Case Shift Control Module Replacement

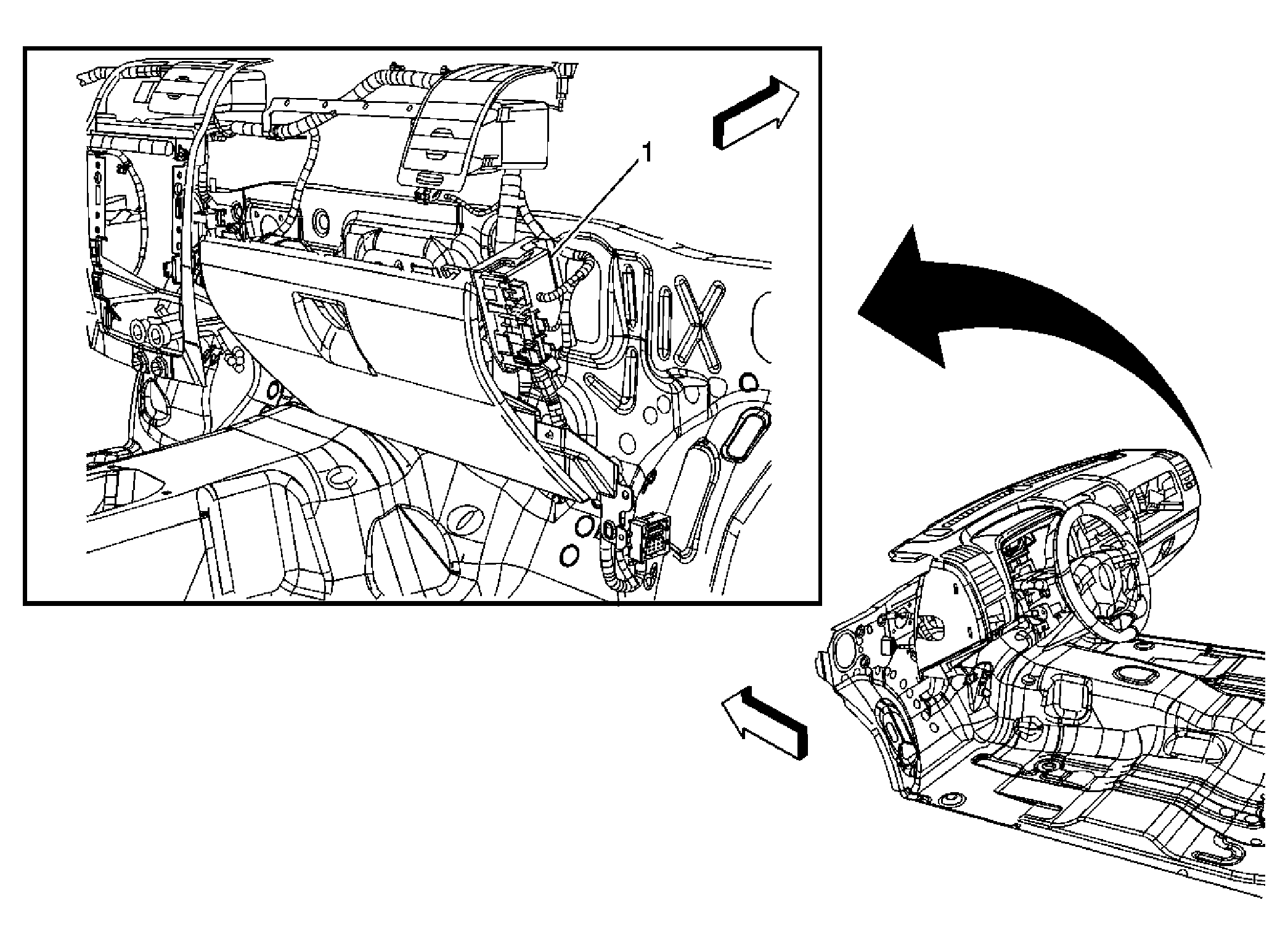

Fig 1: Transfer Case Shift Control Module Replacement

GM1965092

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel (I/P) closeout panel. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side (Right Hand Drive) or Instrument Panel Outer Trim Cover Replacement - Right Side (Left Hand Drive) .

1

Transfer Case Control Module

Procedure

Remove the transfer case control module from the mounting bracket before disconnecting the electrical connectors.
Disconnect the transfer case control module electrical connectors.
