Front Wheel Speed Sensor Replacement

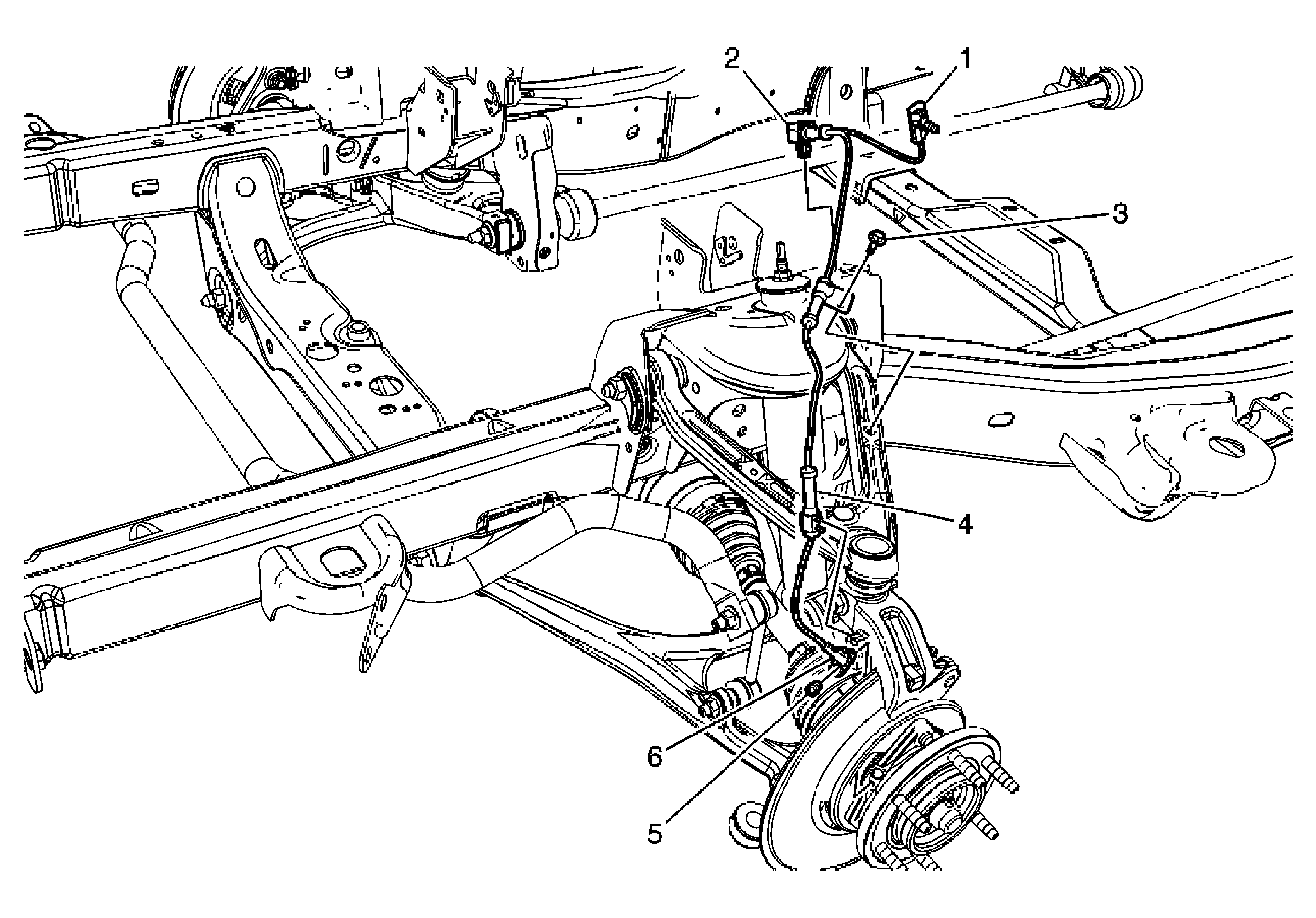

Fig 1: Replacing Front Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the front disc brake rotor. Refer to Front Brake Rotor Replacement .
1	Wheel Speed Sensor Electrical Connector Procedure: Disconnect the electrical connector and release the clip from the vehicle body.
2	Wheel Speed Sensor Wiring Harness Retaining Clip
3	Wheel Speed Sensor Harness Clip Bolt (if equipped) CAUTION: Refer to Fastener Caution . Tip: If equipped with a wheel speed sensor wire harness clip, release the clip from the upper control arm. Tighten: 9 N.m (80 lb in)
4	Wheel Speed Sensor Wiring Harness Retaining Clip
5	Wheel Speed Sensor Mounting Bolt Tighten: 18 N.m (13 lb ft)
6	Wheel Speed Sensor
