Antilock Brake System Schematics

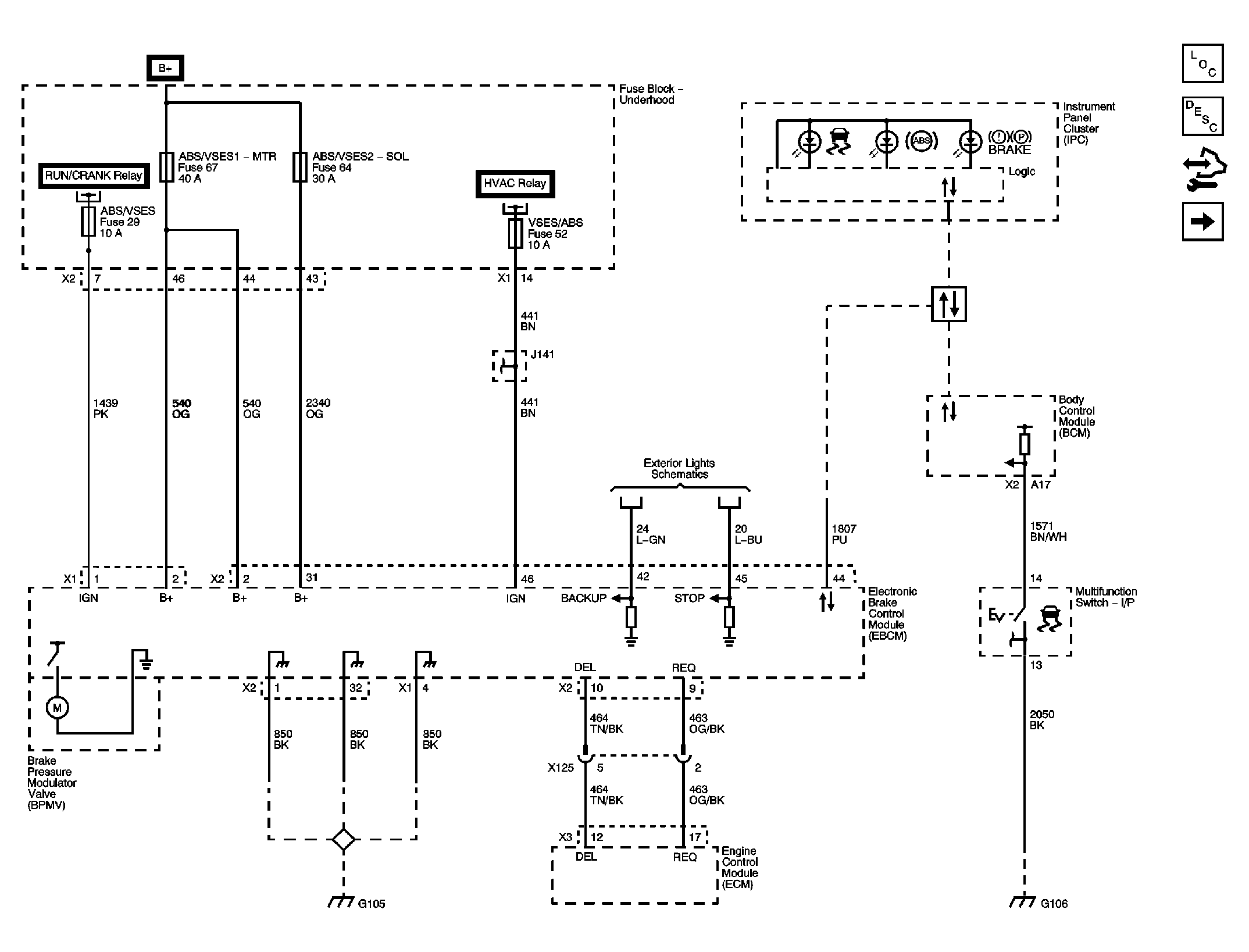

Fig 1: Power, Ground, Serial Data, and Traction Controls Schematic
GM2080229Courtesy of GENERAL MOTORS CORP.

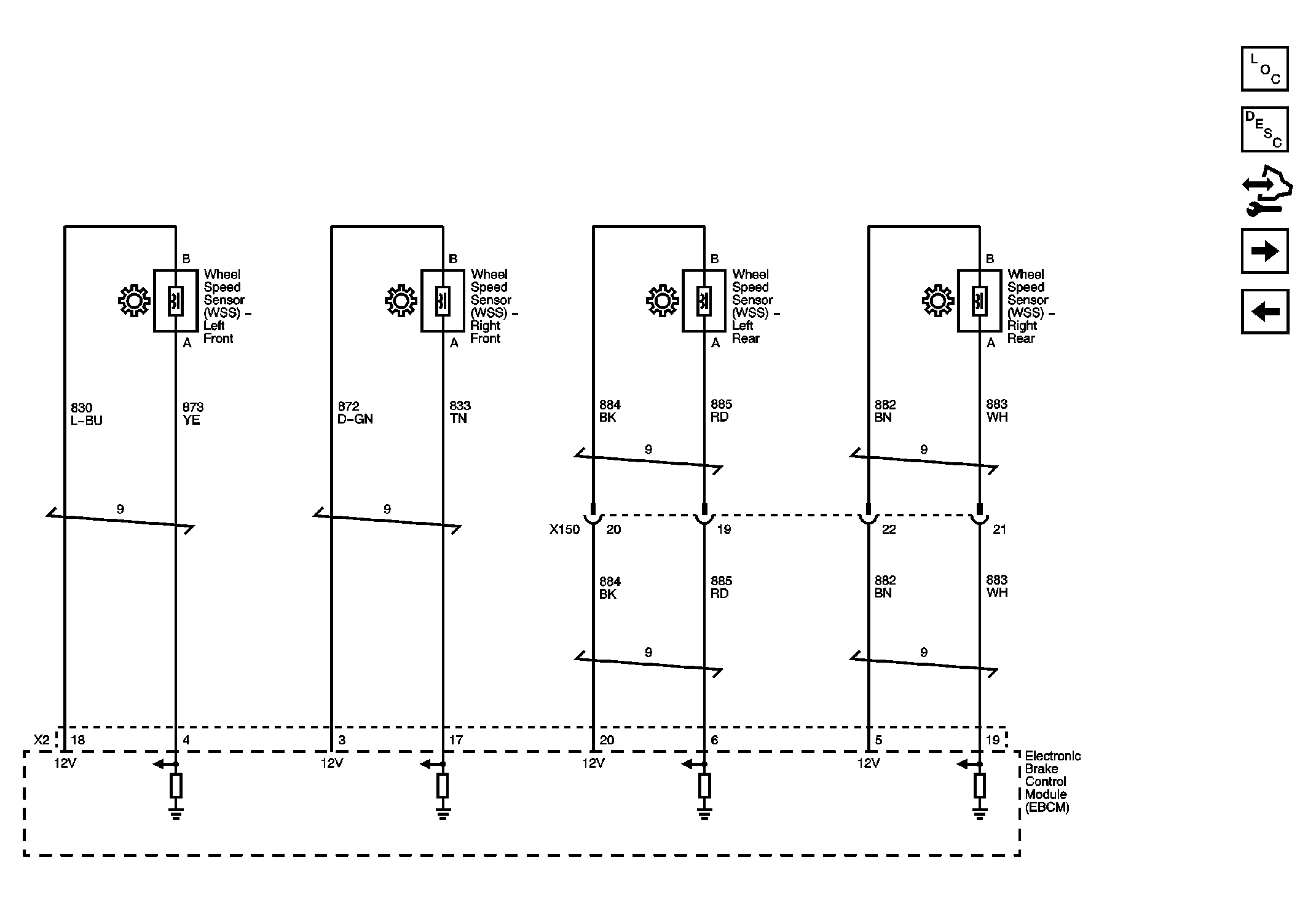

Fig 2: Wheel Speed Signals Schematic
GM2080231Courtesy of GENERAL MOTORS CORP.
Fig 3: Vehicle Stability Schematic
GM2080237Courtesy of GENERAL MOTORS CORP.
