Installation Procedure

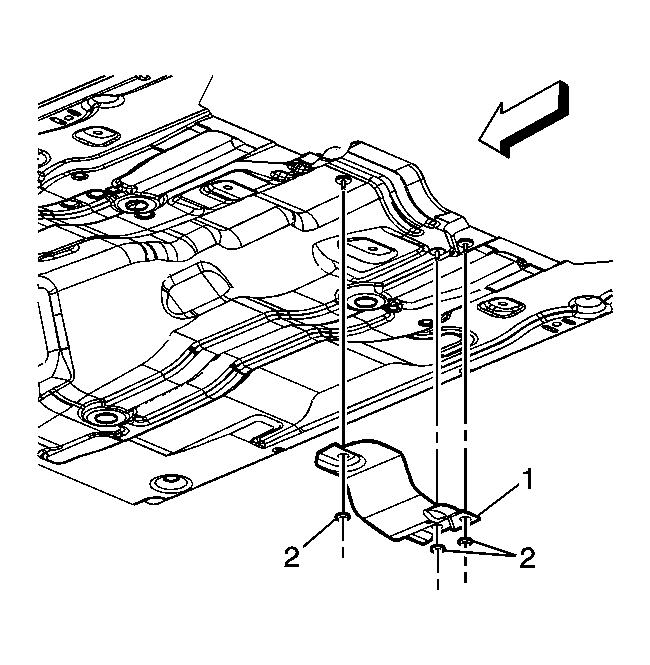

Fig 1: Exhaust Pipe heat Shield Nuts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the exhaust pipe heat shield (1) and nuts (2), if necessary.
Tighten: Tighten the nuts to 9 N.m (80 lb in).

Fig 2: Exhaust Pipe Heat Shield Replacement

Courtesy of GENERAL MOTORS CORP.

Install the exhaust pipe heat shield (1) and nuts (2), if necessary.
Tighten: Tighten the nuts to 9 N.m (80 lb in).
Lower the vehicle.
