Rear Seat Belt Retractor Replacement

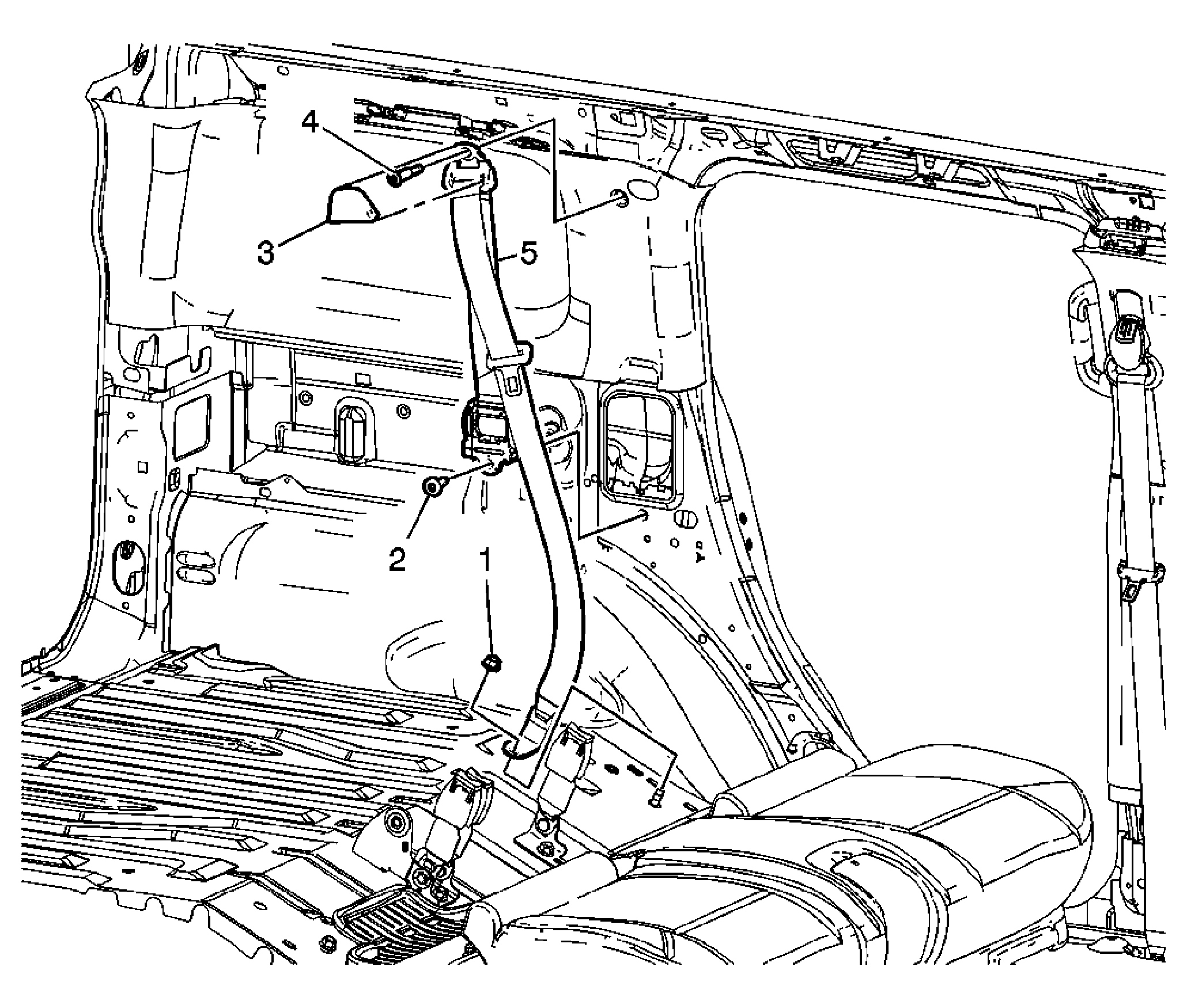

Fig 1: Seat Belt Retractor Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat back. Refer to Rear Seat Back Cushion Replacement . Remove the rear body side trim panel. Refer to Body Side Trim Panel Replacement - Left Side (SUV) or Body Side Trim Panel Replacement - Right Side (SUV) .
1	Rear Seat Shoulder Belt Nut CAUTION: Refer to Fastener Caution . Tighten: 52 N.m (38 lb ft)
2	Rear Seat Shoulder Belt Retractor Bolt Tighten: 52 N.m (38 lb ft)
3	Rear Shoulder Belt Guide Opening Bezel
4	Rear Seat Shoulder Belt Guide Bolt Tighten: 52 N.m (38 lb ft)
5	Rear Seat Belt Retractor Belt Assembly
