Power Steering Fluid Reservoir Replacement

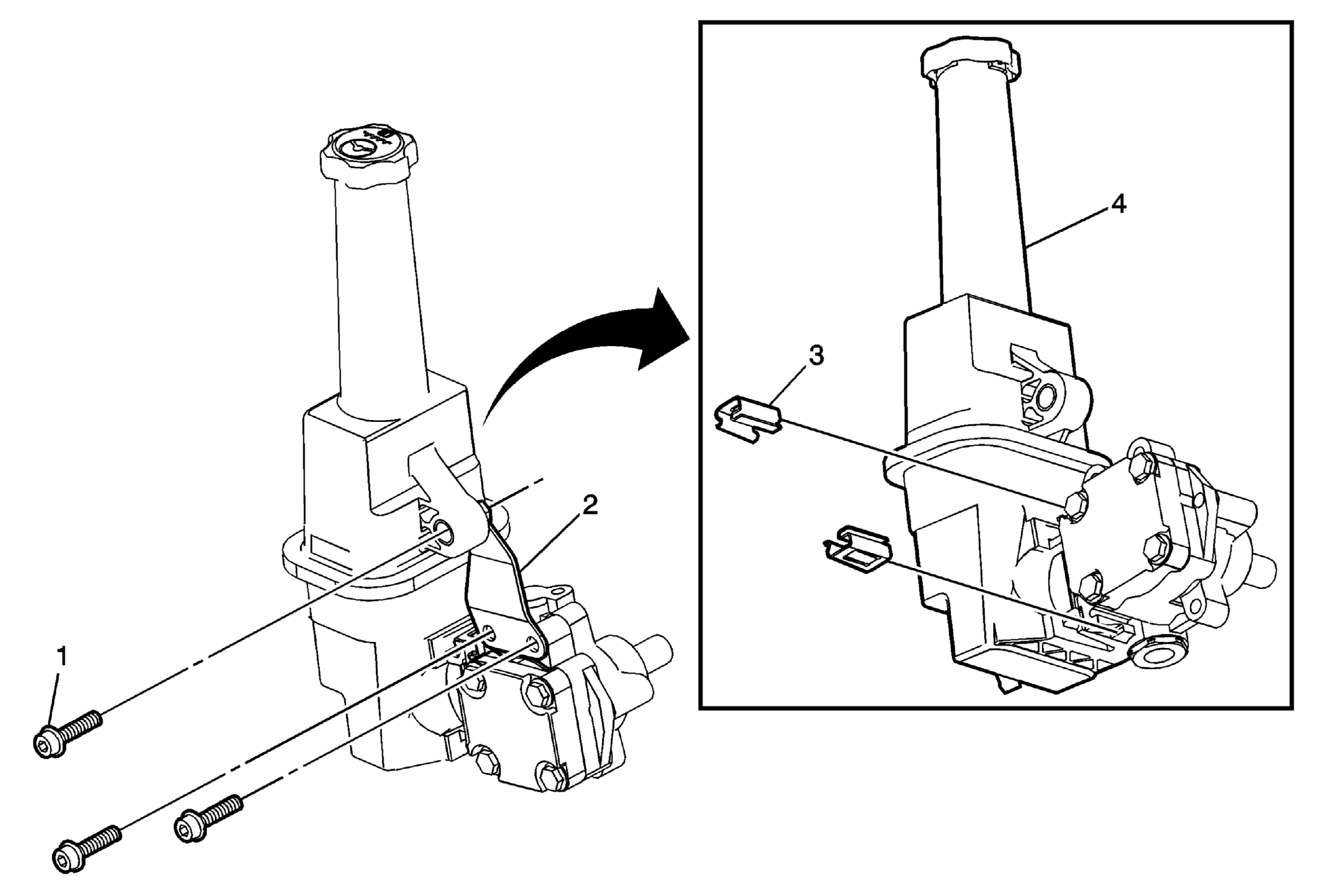

Fig 1: Power Steering Fluid Reservoir (LH8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the power steering pump. Refer to Power Steering Pump Replacement (LH8) or Power Steering Pump Replacement (LLR) .
1	Power Steering Fluid Reservoir Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Power Steering Fluid Reservoir Bracket
3	Power Steering Fluid Reservoir Retainer (Qty: 2)
4	Power Steering Fluid Reservoir Tip: Transfer any parts as needed.
